Tillotson Carburetors

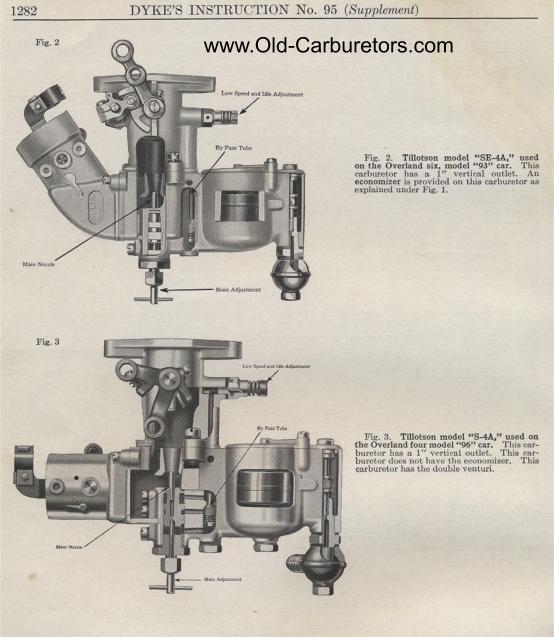

Fig. 2. Tillotson model "SE-4A," used on the Overland six, model "93" car. This carburetor has a 1" vertical outlet. An economizer is provided on this carburetor as explained under Fig. 1.
Fig. 3. Tillotson model "S-4A," used on the Overland four model "96" car. This carburetor has a 1" vertical outlet. This carburetor does not have the economizer. This carburetor has the double venturi.
