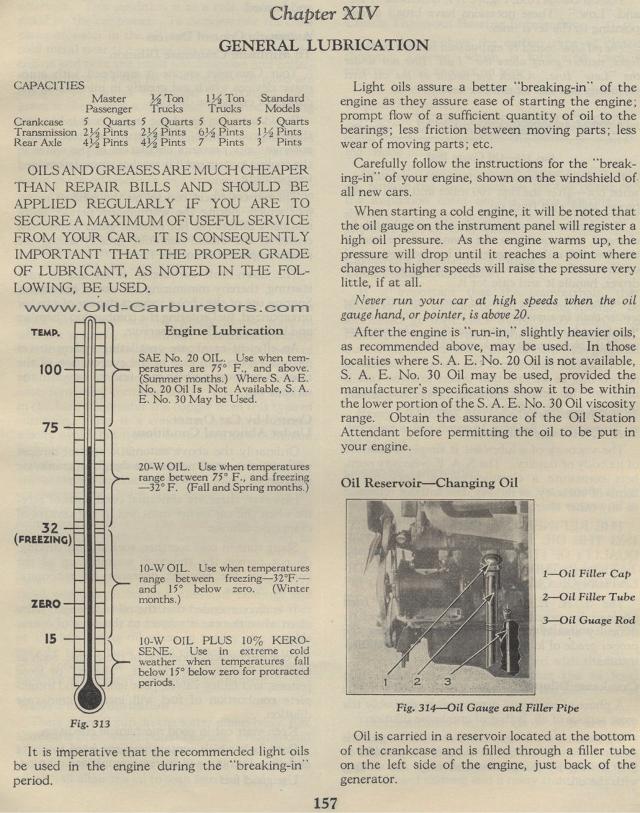

GENERAL LUBRICATION CAPACITIES
Master 1 Ton
Passenger Trucks Trucks Crankcase 5 Quarts

OILS AND GREASES ARE MUCH CHEAPER THAN REPAIR BILLS AND SHOULD BE APPLIED REGULARLY IF YOU ARE TO SECURE A MAXIMUM OF USEFUL SERVICE FROM YOUR CAR. IT IS CONSEQUENTLY IMPORTANT THAT THE PROPER GRADE OF LUBRICANT, AS NOTED IN THE FOLLOWING, BE USED.

Engine Lubrication
SAE No. 20 OIL. Use when temperatures are 75° F., and above. (Summer months.) Where S. A. E. No. 20 Oil Is Not Available, S. A. E. No. 30 May be Used.
75
20-W OIL. Use when temperatures range between 75° F., and freezing -32° F. (Fall and Spring months.)
10-W OIL. Use when temperatures range between freezing — 32°F.--and 15° below zero. (Winter months.)
10-W OIL PLUS 10% KEROSENE. Use in extreme cold weather when temperatures fall below 15° below zero for protracted periods.
Fig. 313
It is imperative that the recommended light oils be used in the engine during the "breaking-in" period.
157
Light oils assure a better "breaking-in" of the engine as they assure ease of starting the engine; prompt flow of a sufficient quantity of oil to the bearings; less friction between moving parts; less wear of moving parts; etc.
Carefully follow the instructions for the "breaking-in" of your engine, shown on the windshield of all new cars.
When starting a cold engine, it will be noted that the oil gauge on the instrument panel will register a high oil pressure. As the engine warms up, the pressure will drop until it reaches a point where changes to higher speeds will raise the pressure very little, if at all.
Never run your car at high speeds when the oil gauge hand, or pointer, is above 20.
After the engine is "run-in," slightly heavier oils, as recommended above, may be used. In those localities where S. A. E. No. 20 Oil is not available, S. A. E. No. 30 Oil may be used, provided the manufacturer's specifications show it to be within the lower portion of the S. A. E. No. 30 Oil viscosity range. Obtain the assurance of the Oil Station Attendant before permitting the oil to be put in your engine.
Oil is carried in a reservoir located at the bottom of the crankcase and is filled through a filler tube on the left side of the engine, just back of the generator.
Oil Reservoir—Changing Oil
I
1— Oil Filler Cap 2— Oil Filler Tube 3— Oil Guage Rod
Fig. 314— Oil Gauge and Filler Pipe
Standard Models
5 Quarts
I Pints
3 Pints
32 (FREEZING)
ZERO 15
TEMP. 100
