Chevrolet with Old Carter Carburetors : CHEVROLET 1925 1926 1927 1928 1929 1930 1931Previous | Home | Next |
 |
Page
3

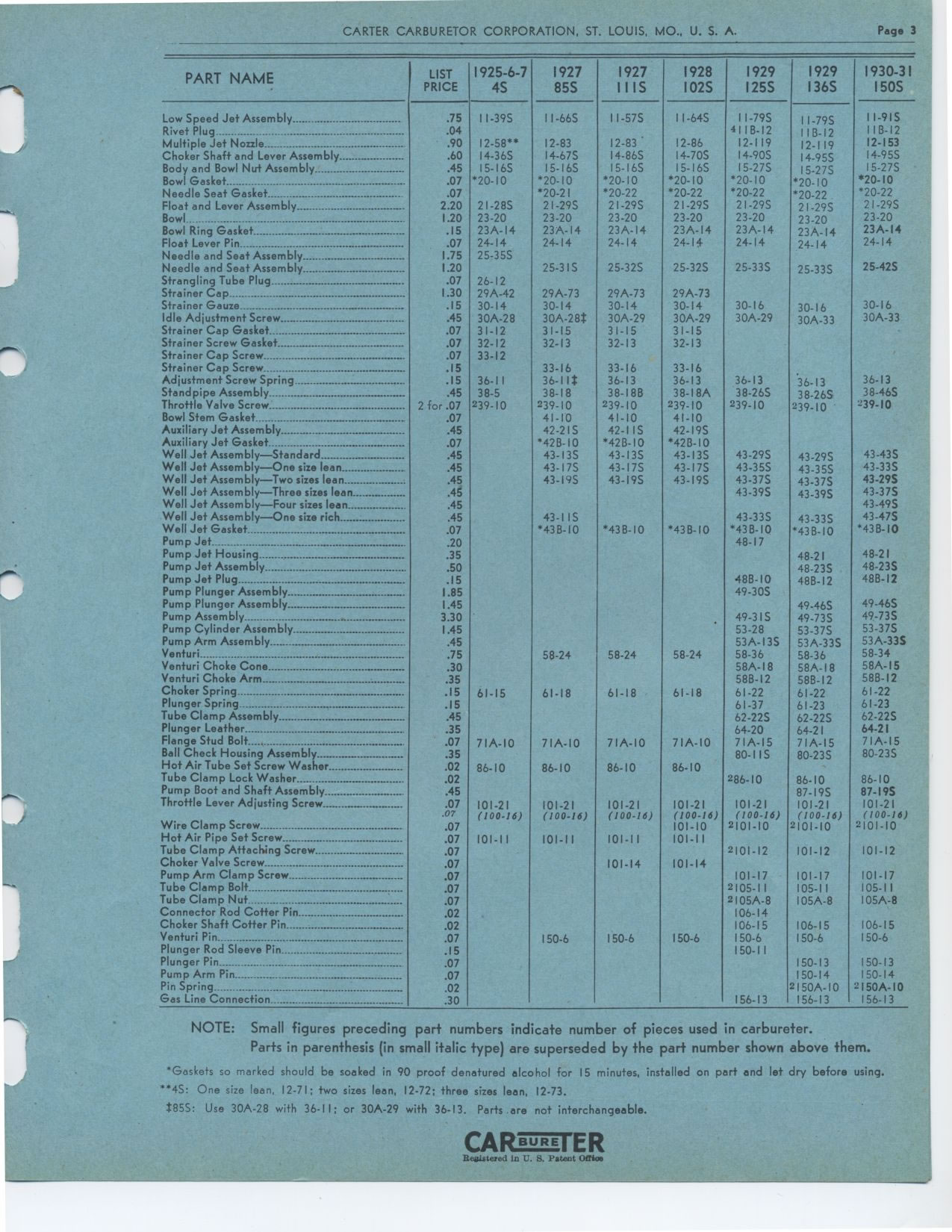

PART NAME LIST 1925-6-7 1927 1927 1928 1929 1929 1930-31
PRICE 4S 85S IIIS 1025 I25S 136S 150S
Low Speed Jet Assembly .75 II-39S II-66S II-57S II-64S II-79S II-79S 11-91S
Rivet Plug. - - .... --... ° °- - .04 41 1 B-12 11B-12 11[3-12
Multiple Jet Nozzle .90 12-58** 12-83 12-83 12-86 12-1 19 12_119 12-153
Choker Shaft and Lever Assembly .60 14-36S 14-67S 14-86S 14-70S 14-90S 14-95S
14-95S
Body and Bowl Nut Assembly .45 15-16S 15-16S 15-16S 15-16S I5-27S 15-27S 15-27S
Bowl Gasket .07 *20-10 *20-10 *20-10 *20-10 *20-10 *20-10 *20-10
Needle Seat Gasket .07 *20-21 *20-22 *20-22 *20-22 *20-22 *20-22
Float and Lever Assembly 2.20 21-285 21-29S 21-29S 21-29S 21-29S 21-29S 21-29S
Bowl 1.20 23-20 23-20 23-20 23-20 23-20 23-20 23-20
Bowl Ring Gasket .15 23A-14 23A-14 23A-14 23A-14 23A-14 23A-14 23A-I4
Float Lever Pin .07 24-14 24-14 24-14 24-14 24-14 24-14 24-14
Needle and Seat Assembly 1.75 25-35S
Needle and Seat Assembly 1.20 25-31S 25-32S 25-32S 25-33S 25-33S 25-42S
Strangling Tube Plug .07 26-12
Strainer Cap 1.30 29A-42 29A-73 29A-73 29A-73
Strainer Gauze .15 30-14 30-14 30-14 30-14 30-16 30-16 30-16
Idle Adjustment Screw .45 30A-28 30A-28$ 30A-29 30A-29 30A-29 30A-33 30A-33
Strainer Cap Gasket .07 31-12 31-15 31-15 31-15
Strainer Screw Gasket .07 32-12 32-13 32-13 32-13
Strainer Cap Screw .07 33-12
Strainer Cap Screw .15 33-16 33-16 33-16
Adjustment Screw Spring .15 36-II 36-11* 36-13 36-13 36-13 36-13 36-13
Standpipe Assembly .45 38-5 38-18 38-18B 38-18A 38-26S 38-26S 38-46S
Throttle Valve Screw 2 for .07 239-10 239-10 239-10 239-10 239-10 239.10 239-10
Bowl Stem Gasket .07 41-10 41-10 41-10
Auxiliary Jet Assembly .45 42-21 S 42-I I S 42-19S
Auxiliary Jet Gasket .07 *42B-10 *42B-10 *42B-10
Well Jet Assembly-Standard .45 43-13S 43-13S 43-13S 43-29S 43-29S 43-43S
Well Jet Assembly-One size lean .45 43-17S 43-17S 43-17S 43-35S 43-35S 43-33S
Well Jet Assembly-Two sizes lean .45 43-19S 43-19S 43-19S 43-37S 43-37S 43-29S
Well Jet Assembly-Three sizes lean .45 43-39S 43-39S 43-37S
Well Jet Assembly-Four sizes lean .45 43-49S
Well Jet Assembly-One size rich .45 43-I IS 43-33S 43-33S 43-47S
Well Jet Gasket .07 *43B-10 *43B-10 *43B-10 *43B-10 *43B-10 *43B-10
Pump Jet .20 48-17
Pump Jet Housing .35 48-21 48-21
Pump Jet Assembly .50 48-23S 48-23S
Pump Jet Plug .15 48B-10 48B-12 48B-12
Pump Plunger Assembly 1.85 49-30S
Pump Plunger Assembly 1.45 49-46S 49-46S
Pump Assembly 3.30 49-3IS 49-73S 49-735
Pump Cylinder Assembly 1.45 53-28 53-37S 53-37S
Pump Arm Assembly .45 53A-13S 53A-33S 53A-33S
Venturi .75 58-24 58-24 58-24 58-36 58-36 58-34
Venturi Choke Cone .30 58A-18 58A-18 58A-I5
Venturi Choke Arm .35 58B-12 58B-12 58B-12
Choker Spring .15 61-15 61-18 61-18 61-18 61-22 61-22 61-22
Plunger Spring .15 61-37 61-23 61-23
Tube Clamp Assembly .45 62-22S 62-22S 62-22S
Plunger Leather .35 64-20 64-21 64-21
Flange Stud Bolt .07 71A-10 71A-10 71A-10 71A-10 71A-15 71A-15 7IA-15
Ball Check Housing Assembly .35 80-I IS 80-23S 80-23S
Hot Air Tube Set Screw Washer .02 86-10 86-10 86-10 86-10
Tube Clamp Lock Washer .02 286-10 86-10 86-10
Pump Boot and Shaft Assembly .45 87-19S 87-195
Throttle Lever Adjusting Screw .07 101-21 101-21 101-21 101-21 101-21 101-21
101-21
.07 (100-16) (100-16) (100-16) (100-16) (100-16) (100-16) (100-16)
Wire Clamp Screw .07 101-10 2101-10 2101-10 2101-10
Hot Air Pipe Set Screw .07 101-11 101-11 101-11 101-11
rube Clamp Attaching Screw .07 2101-12 101-12 101-12
choker Valve Screw .07 101-14 101-14
Pump Arm Clamp Screw .07 101-17 101-17 101-17
rube Clamp Bolt .07 2105-11 105-11 105-11
rube Clamp Nut .07 2105A-8 105A-8 105A-8
connector Rod Cotter Pin .02 106-14
choker Shaft Cotter Pin : .02 106-15 106-15 106-15
Venturi Pin .07 150-6 150-6 150-6 150-6 150-6 150-6
Plunger Rod Sleeve Pin .15 150-I I
Plunger Pin .......-----°....° ..- .07 150-13 150-13
Pump Arm Pin °---- .07 150-14 150-14
Pin Spring .02 2150A-10 2150A-10
:-vas Line Connection .30 156-13 156-13 156-13
NOTE: Small figures preceding part numbers indicate number of pieces used in
carbureter.
Parts in parenthesis (in small italic type) are superseded by the part number
shown above them.
*Gaskets so marked should be soaked in 90 proof denatured alcohol for 15 minutes,
installed on pert and let dry before using. **4S: One size lean, 12-71; two sizes
lean, 12-72; three sizes lean, 12-73. #85S: Use 30A-28 with 36-II; or 30A-29
with 36-13. Parts are not interchangeable.
