sediment in pump cylinder or clogged intake ball check at bottom
of pump cylinder and discharge ball check In discharge passage. If plunger
is removed from cylinder, use care in installing to avoid damage to plunger
leather.
Correct air fuel ratio is provided by a "balance tube" cast in the
air horn. The balance tube should be checked each time the carbureter is serviced
to see that the passage is open. The object of a balanced carbureter is to
provide a constant air fuel ratio regardless of type, size or condition of
air cleaner. Should the cleaner become clogged, the capacity will be reduced
but the air-fuel mixture ratio will not be changed.
Excessive richness above 50 miles per hour may be caused by a clogged main
vent tube. After removal of rivet plug beneath float bowl with tool No. T109-42,
main vent tube can be removed and a new tube inserted with tool No. T109-70.
Care must he exercised in inserting new tube which must seat tightly. Use new
rivet to complete the installation.
Pump adjustment: Remove air horn assembly, back out throttle adjustment screw,
and place pump operating link in center hole of throttle shaft arm. Adjustment
can be made by bending horizontal portion of pump connector link, sothat top
of pump plunger shaft contacts lip of Indicator on pump stroke gauge T109-117S.
Correct travel is 24/64" on DTC1 and 26/64" on ETT1.
Pump stroke. adjustable for high or low temperature. Set to longest stroke
for cold weather, shorter stroke for hot weather driving.
Maximum economy and performance are secured only when breaker points, spark
plugs, valves and motor timing are set to manufacturer's specifications. After
motor is properly tuned, the following should be done to insure satisfactory
performance and economy:
(a) Float level must be set as above.
(b) Step-up rod in step-up jet must seat and move freely. When reassembling,
jet must be screwed in tight against seat.
(c) Step-up piston in body casting should not bind and must be free of dirt.
(d) Main metering jet can be replaced with leaner than
standard metering jets, for altitude or high test fuel.
Caution: Do not attempt to gauge metering jets with drills. These jets have
been flow-tested, to insure correct fuel flow.
Dodge Trucks-I942-No. DTCI, $22.05; No. ETT I, $29.40 All Prices Subject to
Prevailing Surcharge
WHEN SERVICING USE GASKET ASSORTMENT No. 636, $0.60; FOR DTCI; No. 637, $0.60
FOR ETT1;
REPAIR PACKAGE FOR ETT1, No. 1311A, PRICE $6.25; FOR DTC1, No. 1326B, PRICE
$6.25.
I-391S 1-399S
IETTI-DTCI
IA-24 IA-45
118-17 118-4111B-79
24-23
25.102S 30A-37 39-II
48-75
48.103 61-84

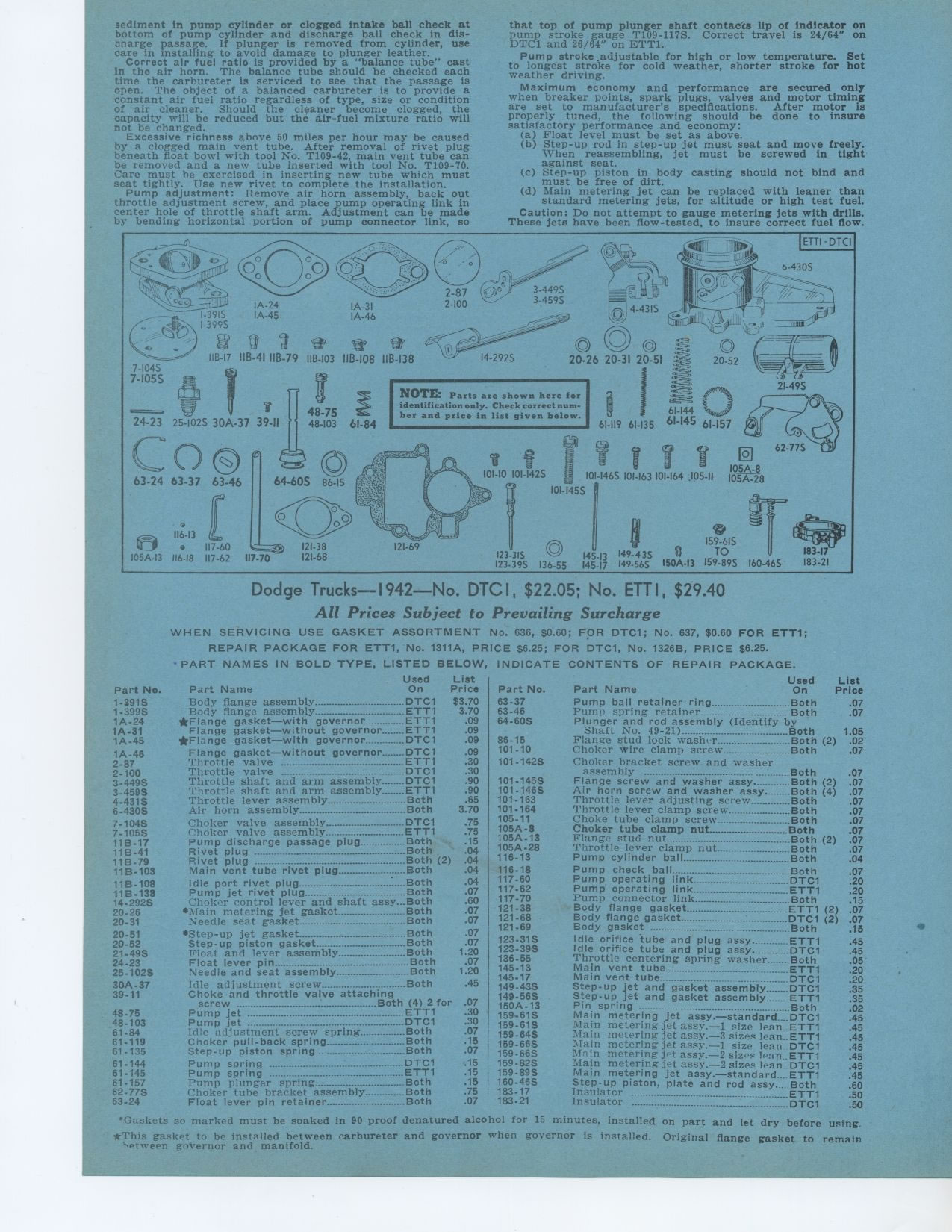

NOTE: Parts are shown here for identification only. Check correct number and
price in list given below.
v 1 O
101-10 101-1425 101-1465 101-163 101-164 ;105-11 I0 -Ai2
105A-28
101-1455
105A-13
117-60 .-.__es) 121-38 121.69
117-62 117.70 121-68
116.13 a 116-18
u u
123-315 145-13
123-39S 136-55 145-17
159-6-615
149-435 TO I49-56S ,.9A-I3 159-895
63-24 63-37 63-46
- PART NAMES IN BOLD TYPE, LISTED BELOW,
Used List
Part No. Part Name On Price
1-3915 Body flange assembly DTC1 $3.70
1-399S Body flange assembly ETT1 3.70
1A-24 *Flange gasket—with governor ETT1 .09
1A-31 Flange gasket—without governor ETT1 .09
1A-45 *Flange gasket—with governor DTC1 .09
Flange gasket—without governor DTC1 .09
Throttle valve ETT1 .30
Throttle valve DTC1 .30
Throttle shaft and arm assembly DTC1 .90
Throttle shaft and arm assembly ETT1 .90
Throttle lever assembly Both .65
Air horn assembly Both 3.70
7-104S Choker valve assembly DTC1 .75
7-105S Choker valve assembly ETT1 .75
11B-17 Pump discharge passage plug Both .15
11B-41 Rivet plug : Both .04
11B-79 Rivet plug Both (2) .04
11B-103 Main vent tube rivet plug Both .04
11B-108 Idle port rivet plug Both .04
11B-138 Pump jet rivet plug Both .07
14-292S Choker control lever and shaft easy Both .60
20-26 •Main metering jet gasket Both .07
20-31 Needle seat gasket Both .07
20-51 •Step-up jet gasket Both .07
20-52 Step-up piston gasket Both .07
21-49S Float and lever assembly Both 1.20
24-23 Float lever pin Both .07
25-102S Needle and seat assembly Both 1.20
30A-37 Idle adjustment screw Both .45
39-11 Choke and throttle valve attaching
screw Both (4) 2 for .07
48-75 Pump jet ETT1 .30
48-103 Pump jet DTC1 .30
61-84 Idle adjustment screw spring Both .07
61.119 Choker pull-back spring Both .15
61.135 Step-up piston spring Both .07
61-144 Pump spring DTC1 .15
61.145 Pump spring ETT1 .15
61.157 Pump plunger spring Both .15
62-77S Choker tube bracket assembly Both .75
63-24 Float lever pin retainer Both .07
INDICATE CONTENTS OF REPAIR PACKAGE.
Used List
Part No. Part Name On Price
63-37 Pump ball retainer ring Both .07
63-46 Pump spring retainer Both .07
64-60S Plunger and rod assembly (Identify by
Shaft No. 49-21) Both 1.05
86-15 Flange stud lock washer Both (2) .02
101-10 Choker wire clamp screw Both .07
101-1425 Choker bracket screw and washer
assembly oth .07
101.145S Flange screw and washer assy. .. Both (2) .07
101.146S Air horn screw and washer assy - Both (4) .07
101-163 Throttle lever adjusting screw Both .07
101.164 Throttle lever clamp screw Both .07
105-11 Choke tube clamp screw Both .07
105A-8 Choker tube clamp nut Both .07
105A•13 Flange stud nut Both (2) .07
105A-28 Throttle lever clamp nut Both .07
116.13 Pump cylinder ball Both .04
116-18 Pump check ball.ball Both .07
117.60 Pump operating link DTC1 .20
117.62 Pump operating link ETT1 .20
117.70 Pump connector link Both .15
121-38 Body flange gasket ETT1 (2) .07
121-68 Body flange gasket DTC1 (2) .07
121-69 Body gasket --. ................... ..................Both .15
123.31S Idle orifice tube and plug assy _ETT1 .45
123.39S Idle orifice tube and plug assy. .. DTC1 .45
136.55 Throttle centering spring washer _ Both .05
145.13 Main vent tube ETT1 .20
145.17 Main vent tube _ DTCI .20
149.43S Step-up jet and gasket assembly DTC1 .35
149.56S Step-up Jet and gasket assembly ETT1 .35
150A-13 Pin spring
Both .02
159-61S Main metering jet assy.—standard DTC1 .45
159-61S Main metering jet assy.—1 size Iean ETT1 .45
159-64S Main metering jet assy.—3 sizes Iean ETT1 .45
159-66S Main metering jet assy.—1 size lean DTC1 .45
159-66S Ma in metering jet assy.-2 sizes lean ETT1 .45
159.825 Main metering jet assy.—2 sizes, lean .DTC1 .45
159.89S Main metering jet assy.—standard ETT1 .45
160-46S Step-up piston, plate and rod assy Both .60
183.17 Insulator ETT1 .50
183.21 Insulator DTC1 .50
1A-46 2-87
2-100 3-449S 3.459S 4-431S 6-430S
-9
"Gaskets so marked must be soaked in 90 proof denatured alcohol for 15 minutes,
installed on part and let dry before using.
*This gasket to be installed between carbureter and governor when governor
is installed. Original flange gasket to remain ' ctween governor and manifold.
