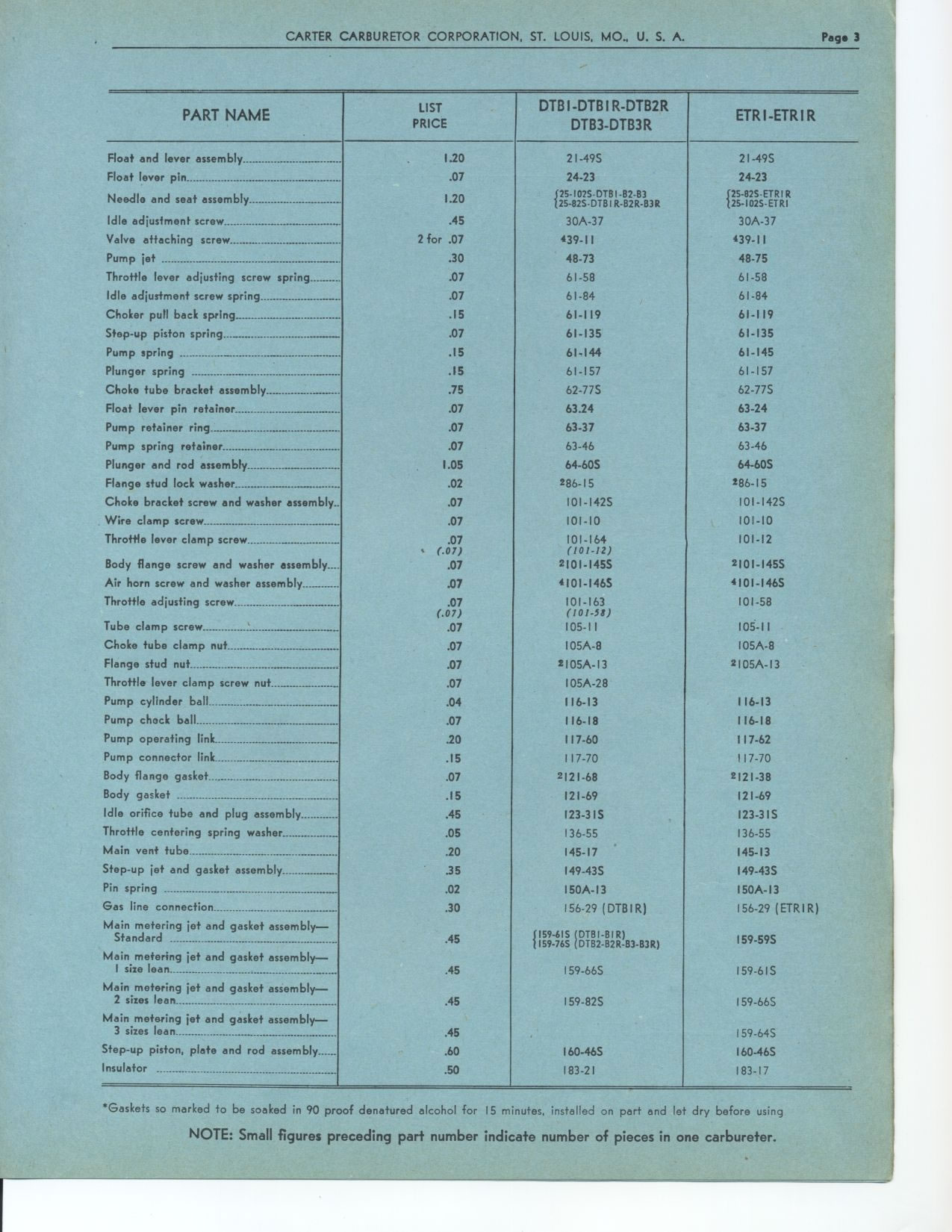

Carburetors for old Dodge Trucks : DODGE TRUCKS 1941 1942 1946Previous | Home | Next |
 |
Page
3
PART NAME LIST DTBI -DTB I R-DTB2 R ETR I -ETR I R
PRICE DTB3-DTB3R
Float and lever assembly 1.20 21-49S 21-49S
Float lever pin .07 24-23 24-23
25-107S DT81-82-B3 J
Needle and seat assembly 1.20 125 -82S-DTBIIR-B2R B3R {25-102S-ETRR
Idle adjustment screw ........ .45 30A-37 30A-37
Valve attaching screw 2 for .07 439-II 439-II
Pump jet .30 48-73 48-75
Throttle lever adjusting screw spring .07 61-58 61-58
Idle adjustment screw spring .07 61-84 61-84
Choker pull back spring .15 61-119 61-119
Step-up piston spring .07 61-135 61-135
Pump spring .___._. ..--.. .-._ _ .15 61..144 61-145
Plunger spring .15 61-157 61-157
Choke tube bracket assembly .75 62-775 62-77S
Float lever pin retainer .07 63.24 63-24
Pump retainer ring .07 63-37 63-37
Pump spring retainer .07 63-46 63-46
Plunger and rod assembly 1.05 64-60S 64-60S
Flange stud lock washer .02 286-15 286-15
Choke bracket screw and washer assembly .07 101-1425 10I-1425
Wire clamp screw ............... .07 101-10 101-10
Throttle lever clamp screw .07 101-164 101-12
(.07) (101-12)
Body flange screw and washer assembly -.. .07 2101-1455 2101-145S
Air horn screw and washer assembly .07 4101-1465 4101-I46S
Throttle adjusting screw.. .... .. _. .07 101-163 101-58
(.07) (101-38)
Tube clamp screw .07 105-11 05-11
Choke tube clamp nut .07 105A-8 I05A-8
Flange stud nut .07 2105A-13 2105A-13
Throttle lever clamp screw nut .07 105A-28
Pump cylinder ball .04 116-13 116-13
Pump chock ball .07 116-18 116-IB
Pump operating link _ .20 117-60 117-62
Pump connector link -_... .15 117-70 117-70
Body flange gasket .07 2121-68 2121-38
Body gasket ------ 121-69 121-69
Idle orifice tube and plug assembly .45 123-3 IS 123-3IS
Throttle centering spring washer _ .05 136-55 136-55
Main vent tube _ __________________._ .20 145-17 145-13
Step-up jet and gasket assembly .35 149-43S 149-43S
Pin spring ° .02 150A-I3 150A-13
Gas line connection .30 156-29 (DTB I R) 56-29 (ETR I R)
Main metering jet and gasket assembly 159-615 ((DTBI
Standard .45 DTB2-BR 59-595
{159-765 -B2R-)B3-B3R)
Main metering jet and gasket assembly .45 159-66S 159-6I S
size lean . .....
Main metering jet and gasket assembly- .45 159-82S 159-665
2 sizes lean
Main metering jet and gasket assembly .45 59-64S
3 sizes lean
Step-up piston, plate and rod assembly._. .60 160-46S 160-46S
Insulator .50 183-21 183-17
*Gaskets so marked to be soaked in 90 proof denatured alcohol for 15 minutes,
installed on part and let dry before using
NOTE: Small figures preceding part number indicate number of pieces in one carbureter.
