Page
3

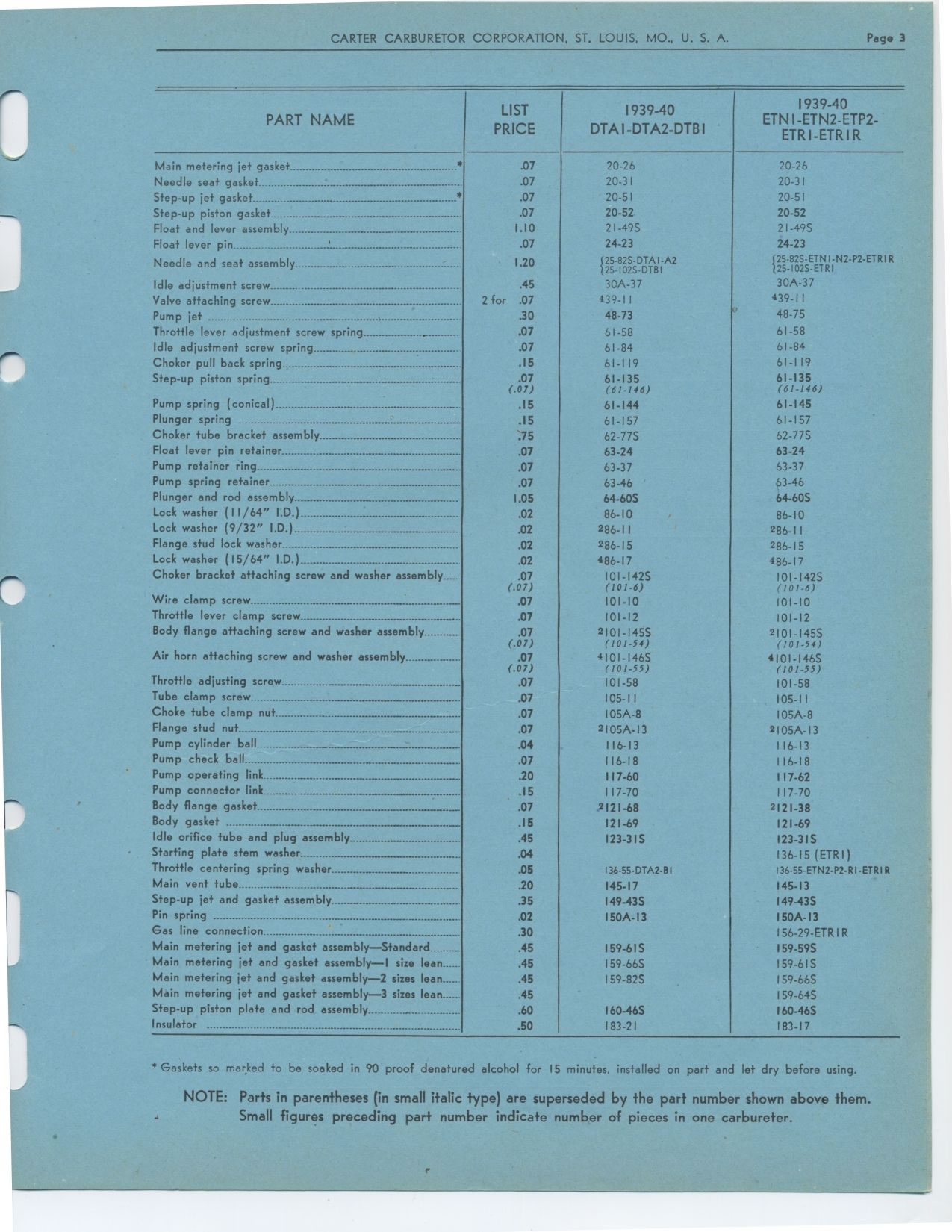

PART NAME
LIST PRICE1939-40
DTA I -DTA2-DT B I
1939-40
ETN I -ETN2-ETP2-
ETRI-ETRIR
Main metering jet gasket -------------------* .07 20-26 20-26
Needle seat gasket .07 20-31 20-3 I
Step-up jet gasket * .07 20-5 I 20-51
Step-up piston gasket. •- -- .07 20-52 20-52
Float and lever assembly 1.10 2I-49S 21-49S
Float lever pin ------- 24-23 24-23
Needle and seat assembly 1.20 J 25-82 S- DTA I -A2 25-82S-ETN I-N2-P2-ETR I
R
..................................................... 125-1025-DTBI 125-1025-ETRI
Idle adjustment screw .45 30A-37 30A-37
Valve attaching screw ° 2 for .07 439-11 439-11
Pump jet .30 48-73 48-75
Throttle lever adjustment screw spring ~ .07 61-58 61-58
Idle adjustment screw spring .07 61-84 61-84
Choker pull back spring. ........................ .15 61-119 61-119
Step-up piston spring .07 61-135 61-135
(.07) (61-146) (61-146)
Pump spring (conical) .15 61-144 61-145
Plunger spring .15 61-157 61-157
Choker tube bracket assembly :75 62-77S 62-77S
Float lever pin retainer .07 63.24 63-24
Pump retainer ring .07 63-37 63-37
Pump spring retainer .07 63-46 63-46
Plunger and rod assembly 1.05 64-60S 64-60S
Lock washer (11/64" I.D.) .02 86-10 86-10
Lock washer (9/32" I.D.) _ . .02 286-11 286-11
Flange stud lock washer .02 286-15 286-15
Lock washer (15/64" I.D.) .02 486-17 486-17
Choker bracket attaching screw and washer assembly .07 101-142S 101-142S
(.07) (101-6) (101-6)
Wire clamp screw .07 101-10 101-10
Throttle lever clamp screw .07 101-12 101-12
Body flange attaching screw and washer assembly .07 2101-145S 2101-145S
........... (.07) (101-54) (101-54)
Air horn attaching screw and washer .07 4101-146S 4101-146S
(.07) (101-55) (101-55)
Throttle adjusting screw .07 101-58 101-58
Tube clamp screw .-.. - .07 05-11 105-11
Choke tube clamp nut ............. .......... ......... .07 105A-8 I05A-8
Flange stud nut .07 2105A-13 2105A-13
Pump cylinder ball .04 116-13 116-13
Pump check ball ---... ...... . .07 116-18 116-18
Pump operating link .20 117-60 117-62
Pump connector link .15 117-70 117-70
Body flange gasket .07 ?121-68 2121-38
Body gasket -- - - - 121-69 121-69
Idle orifice tube and plug assembly .45 123-3IS 123-31S
Starting plate stem washer .04 136-15 (ETRI)
Throttle centering spring washer .05 36-55-DTA2-B I I36-55-ETN2-P2-RI-ETRIR
Main vent tube --- .20 145-17 145-13
Step-up jet and gasket assembly .35 49-43S 149-43S
Pin spring .02 150A-13 150A-13
line connection •-•• •- .30 156-29-ETRIR
Main metering jet and gasket assembly-Standard .45 159-6I S 159-59S
Main metering jet and gasket assembly-I size lean .45 159-66S 159-6 IS
Main metering jet and gasket assembly-2 sizes lean .45 159-82S 159-66S
Main metering jet and gasket assembly-3 sizes lean .45 159-64S
Step-up piston plate and rod assembly .60 160-46S 160-46S
Insulator .... . -- - -------------------•- - .50 183-21 183-17
' Gaskets so marked to be soaked in 90 proof denatured alcohol for 15 minutes,
installed on part and let dry before using.
NOTE: Parts in parentheses (in small italic type) are superseded by the part
number shown above them. Small figures preceding part number indicate number
of pieces in one carbureter.
