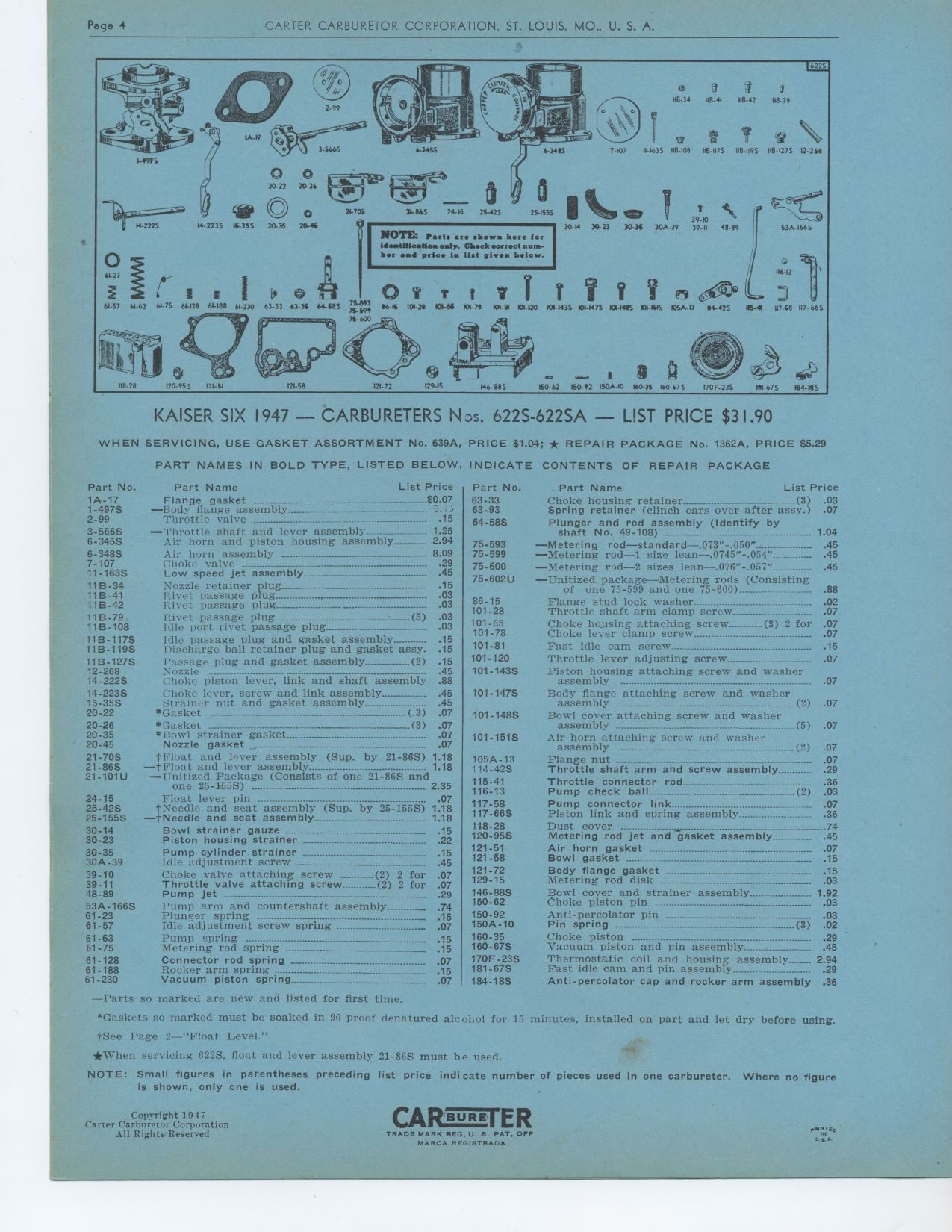

Page 4 CARTER CARBURETOR CORPORATION, ST. LOUIS, MO., U. S.
A.
KAISER SIX 1947 - CARBURETERS N. 622S-622SA - LIST PRICE $31.90
WHEN SERVICING, USE GASKET ASSORTMENT No. 639A, PRICE $1.04; * REPAIR PACKAGE
No. 1362A, PRICE $5.29
PART NAMES IN BOLD TYPE, LISTED BELOW, INDICATE CONTENTS OF REPAIR PACKAGE
Part No. Part Name List Price
1A-17 Flange gasket .. ---$0.07
1-497S —Body flange assembly __ 5., i
2-99 Throttle valve - 15
3-566S —Throttle shaft and lever assembly 1.25
6-345S Air horn and piston housing assembly 2.94
6-348S Air horn assembly 8.09
7-107 Choke valve ------- ................._°----° ...--- .29
11-163S Low speed jet assembly 45
11 B-34 Nozzle retainer plug 15
11 B-41 Rivet. passage plug 03
11B-42 Rivet passage plug 03
11B-79 Rivet passage plug °° -(5) 03
11B-108 Idle port rivet passage plug 03
11B-117S Idle passage plug and gasket assembly 15
11B-119S Discharge ball retainer plug and gasket assy 15
11B-127S Passage plug and gasket assembly (2) 15
12-268 Nozzle ...............°° ..---..-.-° ....... .45
14-222S Choke piston lever, link and shaft assembly 88
14.223S Choke lever, screw and link assembly 45
15-35S Strainer nut and gasket assembly 45
20-22 *Gasket (.3) 07
220-26 *Gasket °..- --.---°- (3) 07
20-35 *Bowl strainer gasket 07
20-45 Nozzle gasket _ ° °° 07
21-70S 1' Float and lever assembly (Sup. by 21-86S) 1 18
21-86S —t Float and lever assembly 1 18
21-101U —Unitized Package (Consists of one 21-86S and
one 25-155S) 2 35
24-15 Float lever pin 07
25-42S tNeedle and seat assembly (Sup. by 25-155S) 1 18
25-155S —t Needle and seat assembly 1 18
30-14 Bowl strainer gauze 15
30-23 Piston housing strainer 22
30-35 Pump cylinder strainer 15
30A-39 Idle adjustment screw 45
39-10 Choke valve attaching screw (2) 2 for .07
39-11 Throttle valve attaching screw (2) 2 for .07
48-89 Pump jet °- 29
53A-166S Pump arm and countershaft assembly 74
61-23 Plunger spring 15
61-57 Tdle adjustment screw spring 07
61-63 Pump spring ---°-°-- ---°- 15
61 -75 Metering rod spring 15
61-128 Connector rod spring 07
61-188 Rocker arm spring 15
61-230 Vacuum piston spring 07
Part No. 63-33 63-93 64.58S
75-593 75-599 75-600 75-602U
86-15 101-28 101-65 101-78 101-81 101-120 101-143S
101-147S 101-148S 101-151S
105A-13 114-42S 115-41 116-13 117-58 117-66S 118-28 120-95S 121.51 121-58
121-72 129-15 146-88S 150-62 150-92 150A-10 160-35 160-67S 170E-23S 181-67S
184-18S
Part Name List Price
Choke housing retainer (3) .03
Spring retainer (clinch ears over after assy.) .07 Plunger and rod assembly
(Identify by
shaft No. 49-108) 1.04
—Metering rod—standard—.073"-.050" 45
—Metering rod—1 size lean—.0745"-.054" 45
—Metering rod—2 sizes lean—.076"-.057" 45
—Unitized package—Metering rods (Consisting
of one 75-599 and one 75-600) 88
Flange stud lock washer 02
Throttle shaft arm clamp screw 07
Choke housing attaching screw (3) 2 for 07
Choke lever clamp screw 07
Fast idle cam screw 15
Throttle lever adjusting screw 07
Piston housing attaching screw and washer
assembly -°--- ---°° -----°-° 07
Body flange attaching screw and washer
assembly (2) .07
Bowl cover attaching screw and washer
assembly (5) 07
Air horn attaching screw and washer
assembly (2) 07
Flange nut 07
Throttle shaft arm and screw assembly 29
Throttle connector rod 36
Pump check ball (2) 03
Pump connector link 07
Piston link and spring assembly 36
Dust cover 74
Metering rod jet and gasket assembly 45
Air horn gasket _ 07
Bowl gasket 15
Body flange gasket 15
Metering rod disk 03
Bowl cover and strainer assembly 1 92
Choke piston pin °° 03
Anti-percolator pin 03
Pin spring °° .......... ................................(3) .02
Choke piston 29
Vacuum piston and pin assembly 45
Thermostatic coil and housing assembly 2 94
Fast idle cam and pin assembly 29
Anti-percolator cap and rocker arm assembly 36
—Parts so marked are new and listed for first time.
*Gaskets so marked must be soaked in 90 proof denatured alcohol for 15 minutes,
installed on part and let dry before using. tSee Page 2—"Float
Level."
*When servicing 622S, float and lever assembly 21-86S must be used.
NOTE: Small figures in parentheses preceding list price indicate number
of pieces used in one carbureter. Where no figure is shown, only one is used.
|
