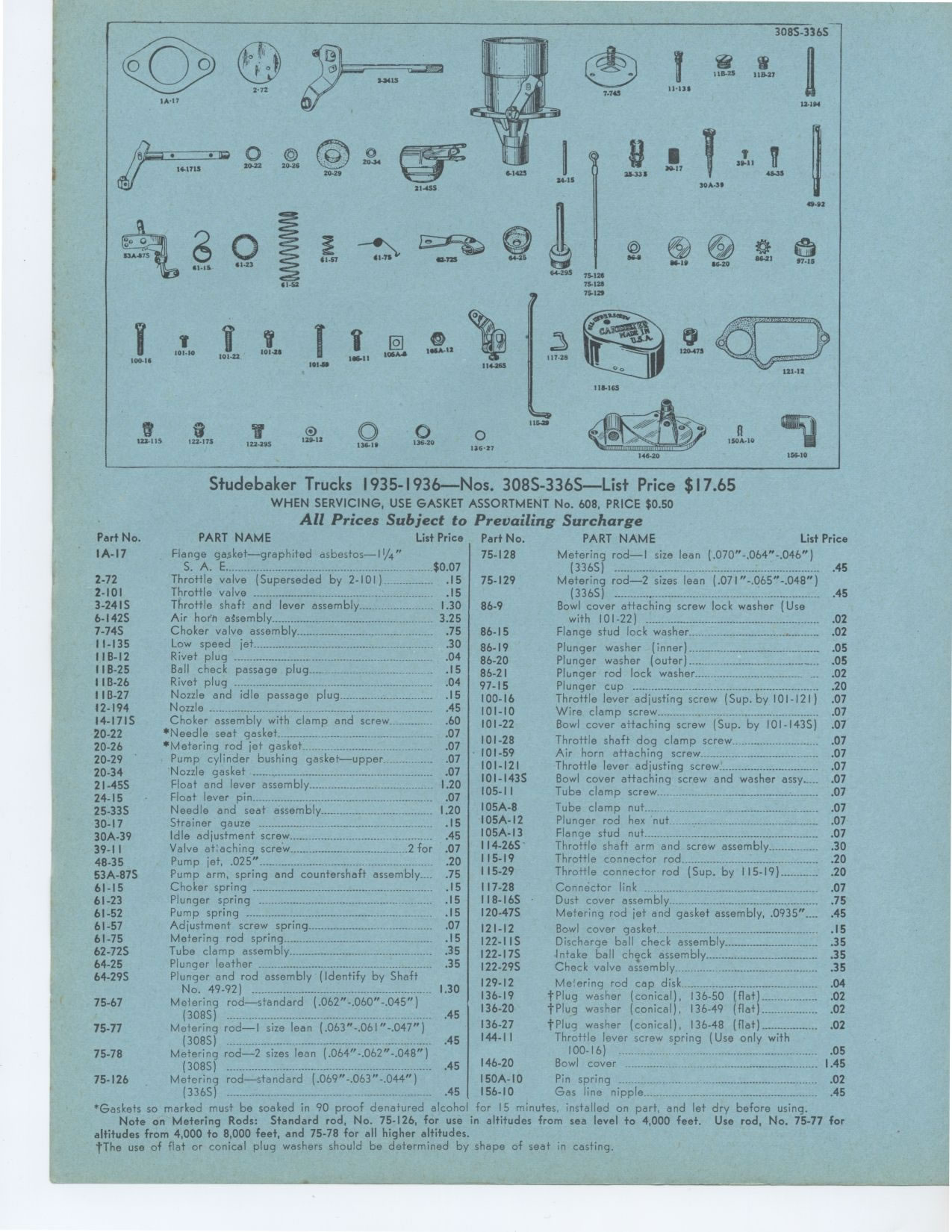

![Studebaker Trucks 1935, 1936](../fullimages/Studebaker-030_f.jpg)
Studebaker Trucks I935 1936 Nos. 3O8S 336S
—List Price $ 17.65
WHEN SERVICING, USE GASKET ASSORTMENT No. 608, PRICE $0.50
All Prices Subject to Prevailing Surcharge
Part No. PART NAME List Price Part No. PART NAME List Price
IA-17 Flange gasket—graphited asbestos—l¼" 75-128
Metering rod—I size lean (.070"-.064"-.046")
S. A. E $0 07
2-72 Throttle valve (Superseded by 2-101) __ 15
2-101 Throttle valve 15
3-24IS Throttle shaft and lever assembly 1 30
6-142S Air horn assembly _ 3 25
7-74S Choker valve assembly 75
1-135 Low speed jet 30
115-12 Rivet plug ... .04
IIB-25 Ball check passage plug 15
I B-26 Rivet plug 04
1113-27 Nozzle and idle passage plug 15
12-194 Nozzle --- 45
14-1715 Choker assembly with clamp and screw _ .60
20-22 *Needle seat gasket _ .07
20-26 *Metering rod jet gasket - .07
20-29 Pump cylinder bushing gasket—upper_ 07
20-34 Nozzle gasket ... .07
21-45S Float and lever assembly 1 20
24-15 Float lever pin- 07
25-33S Needle and seat assembly 1 20
30-17 Strainer gauze 15
30A-39 Idle adjustment screw 45
39-I I Valve at:aching screw 2 for 07
48-35 Pump jet, .025".
53A-87S Pump arm, spring and countershaft assembly 75
61-15 Choker spring .15
61-23 Plunger spring ..... .15
61-52 Pump spring 15
61-57 Adjustment screw spring 07
61-75 Metering rod spring 15
62-72S Tube clamp assembly 35
64-25 Plunger leather 35
64-29S Plunger and rod assembly (Identify by Shaft
No. 49-92) 1.30
75-67 Metering rod—standard (.062"-.060"-.045")
(3085) 45
75-77 Metering rod—I size lean (.063"-.061"-.047")
(3085) ............. ...... ... .45
75-78 Metering rod—2 sizes lean (.064"-.062"-.048")
(3085)
75-126 Metering rod—standard (.069"-.063"-.044")
(336S) .45
'Gaskets so marked must be soaked in 90 proof denatured alcohol for 15
minutes, installed on part, and let dry before using.
Note on Metering Rods: Standard rod, No. 75-126, for use in altitudes from
sea level to 4,000 feet. Use rod, No. 75-77 for altitudes from 4,000 to
8,000 feet, and 75-78 for all higher altitudes.
j' The use of flat or conical plug washers should be determined by shape
of seat in casting.
.
Metering rod—2 sizes lean (.071"-.065"-.048")
(336S) 45
Bowl cover attaching screw lock washer (Use
with 101-22) 02
Flange stud lock washer 02
Plunger washer (inner) 05
Plunger washer (outer) - .05
Plunger rod lock washer 02
Plunger cup .20
Throttle lever adjusting screw (Sup. by 101-121) 07
Wire clamp screw .07
Bowl cover attaching screw (Sup. by I01-1435) 07
Throttle shaft dog clamp screw 07
Air horn attaching screw 07
Throttle lever adjusting screw 07
Bowl cover attaching screw and washer asst' 07
Tube clamp screw ..... 07
Tube clamp nut---- ..... 07
Plunger rod hex nut 07
Flange stud nut 07
Throttle shaft arm and screw assembly 30
Throttle connector rod 20
Throttle connector rod (Sup. by 115-19) 20
Connector link 07
Dust cover assembly 75
Metering rod jet and gasket assembly, .0935" -.. .45
Bowl cover gasket 15
Discharge ball check assembly 35
Intake ball check assembly 35
Check valve assembly 35
Metering rod cap disk 04
(Plug washer (conical), 136-50 (flat)... . 02
tPlug washer (conical), 136-49 (flat) 02
(Plug washer (conical), 136-48 (flat) 02
Throttle lever screw spring (Use only with
100-16) -05
Bowl cover 1.45
Pin spring --------------° ...... .02
Gas line nipple --° .45
|
