If the cylinder is less heated, these heavy elements On certain
engines where the trickle of the liquid will work down past piston,
destroying the wall lubri- fuel through the valve opening is
in the direction cation and resulting in cylinder wear, and then
drain of the spark plug, continual trouble will be experi-
into crankcase and thin out crankcase oil supply. enced with spark
plug fouling.

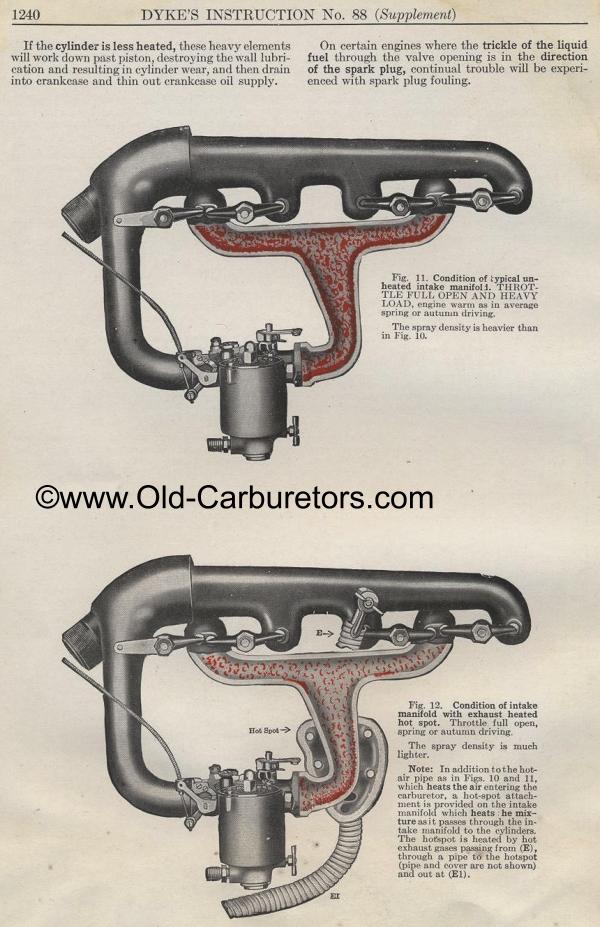

Fig. 11. Condition of typical unheated intake manifoll. engine
warm as in average spring or autumn driving.
The spray density is heavier than in Pig. 10.
Fig. 12. Condition of intake manifold with exhaust heated hot spot.
Throttle full open, spring or autumn driving.
The spray density is much lighter.
Note: In addition to the hot-air pipe as in Figs. 10 and 11, which
heats the air entering the carburetor, a hot-spot attachment is
provided on the intake manifold which heats :he mixture as it passes
through the in-take manifold to the cylinders. The hotspot is heated
by hot exhaust gases passing from (E), through a pipe to the hotspot
(pipe and cover are not shown) and out at (El).
