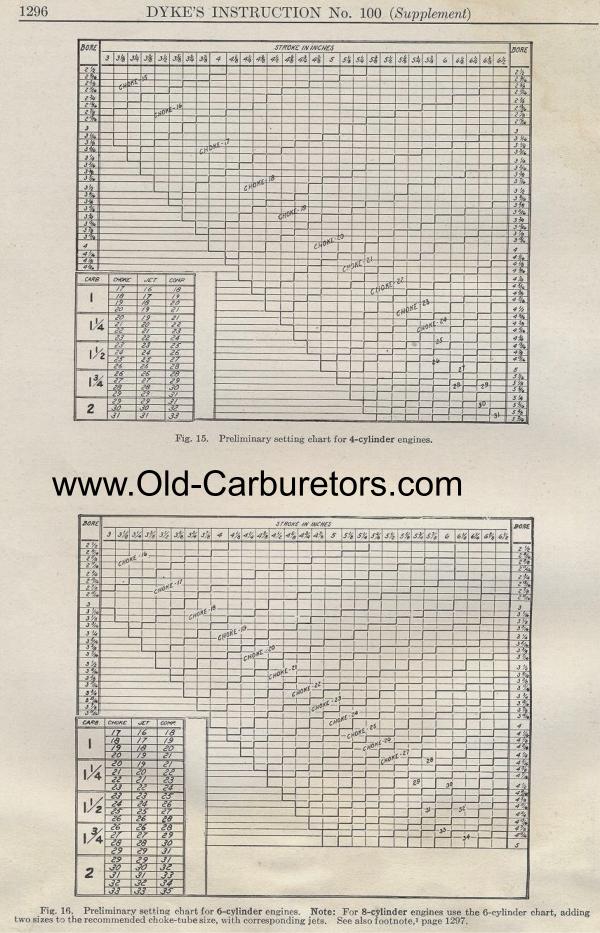

Fig. 15. Preliminary setting chart for 4-cylinder engines.

Fig. 16. Preliminary setting chart for 6-cylinder engines. Note: For 8-cylinder engines use the 6-cylinder chart, adding two sizes to the recommended choke-tube size, with corresponding jets. See also footnote,' page 1297.
