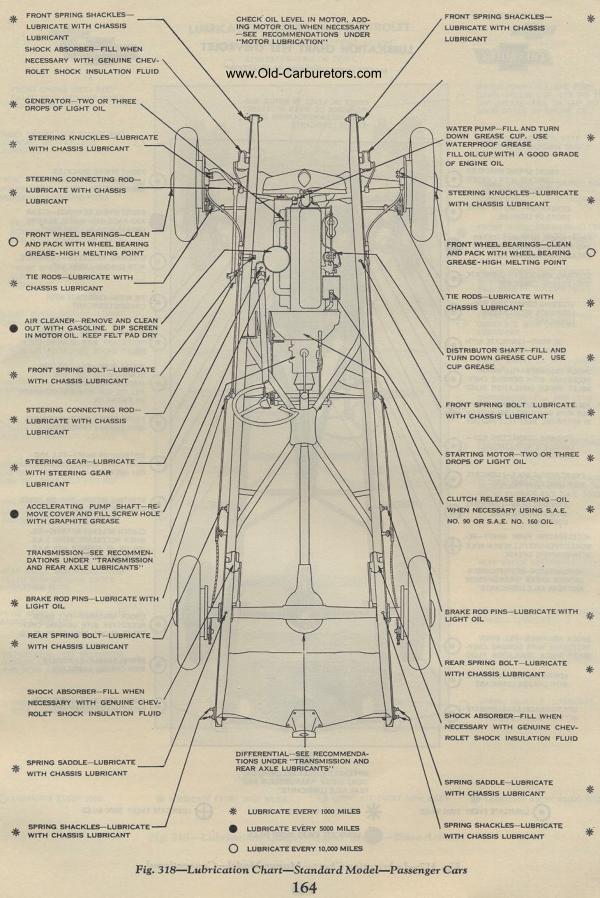

Lubrication Chart—Standard Model—Passenger Cars

y~ FRONT SPRING SHACKLES-LUBRICATE WITH CHASSIS LUBRICANT
SHOCK ABSORBER-FILL WHEN NECESSARY WITH GENUINE CHEVROLET SHOCK INSULATION FLUID

CHECK OIL LEVEL IN MOTOR, ADDING MOTOR OIL WHEN NECESSARY -SEE RECOMMENDATIONS UNDER "MOTOR LUBRICATION"
FRONT SPRING SHACKLES-LUBRICATE WITH CHASSIS LUBRICANT
STEERING KNUCKLES-LUBRICATE
• WITH CHASSIS LUBRICANT STEERING CONNECTING ROD-
* LUBRICATE WITH CHASSIS LUBRICANT
FRONT WHEEL BEARINGS-CLEAN
^ AND PACK WITH WHEEL BEARING GREASE-HIGH MELTING POINT
AIR CLEANER- REMOVE AND CLEAN
• OUT WITH GASOLINE. DIP SCREEN IN MOTOR OIL. KEEP FELT PAD DRY
FRONT SPRING BOLT-LUBRICATE WITH CHASSIS LUBRICANT STEERING CONNECTING ROD-
• LUBRICATE WITH CHASSIS LUBRICANT STEERING GEAR-LUBRICATE WITH STEERING GEAR LUBRICANT
ACCELERATING PUMP SHAFT-RE-
• MOVE COVER AND FILL SCREW HOLE WITH GRAPHITE GREASE
TRANSMISSION-SEE RECOMMENDATIONS UNDER "TRANSMISSION AND REAR AXLE LUBRICANTS"
SHOCK ABSORBER-FILL WHEN NECESSARY WITH GENUINE CHEVROLET SHOCK INSULATION FLUID
DIFFERENTIAL-SEE RECOMMENDATIONS UNDER "TRANSMISSION AND REAR AXLE LUBRICANTS"
WATER PUMP-FILL AND TURN DOWN GREASE CUP. USE WATERPROOF GREASE
FILL OILCUP WITH A GOOD GRADE OF ENGINE OIL
STEERING KNUCKLES-LUBRICATE WITH CHASSIS LUBRICANT
FRONT WHEEL BEARINGS-CLEAN
AND PACK WITH WHEEL BEARING 0 GREASE-HIGH MELTING POINT
DISTRIBUTOR SHAFT-FILL AND TURN DOWN GREASE CUP. USE CUP GREASE
CLUTCH RELEASE BEARING-OIL WHEN NECESSARY USING S.A.E. NO. 90 OR S.A.E. NO. 160 OIL
SHOCK ABSORBER-FILL WHEN NECESSARY WITH GENUINE CHEVROLET SHOCK INSULATION FLUID
SPRING SHACKLES-LUBRICATE
• WITH CHASSIS LUBRICANT
* LUBRICATE EVERY 1000 MILES
• LUBRICATE EVERY 5000 MILES
Q LUBRICATE EVERY 10,000 MILES
SPRING SHACKLES-LUBRICATE WITH CHASSIS LUBRICANT
