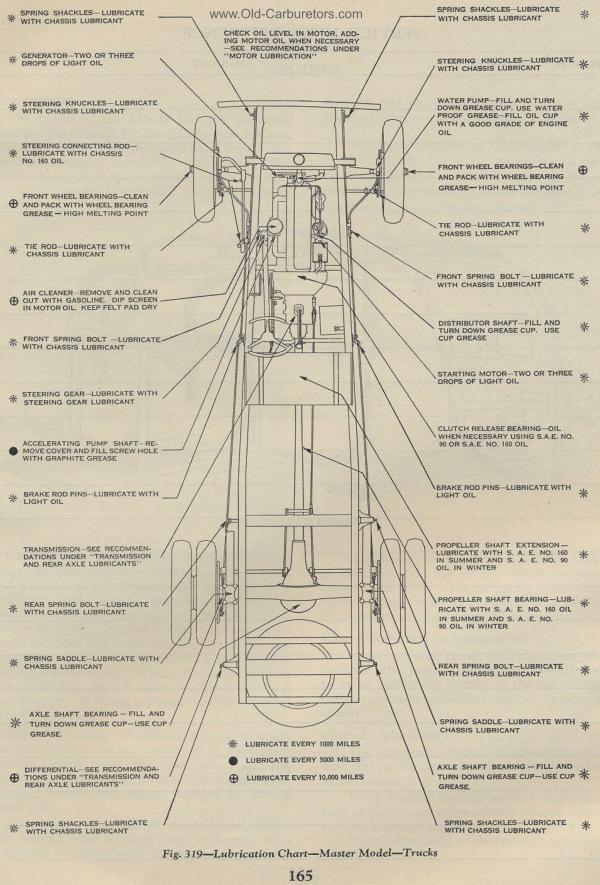

Lubrication Chart — Master Model -Trucks
165
SPRING SHACKLES-LUBRICATE WITH CHASSIS LUBRICANT
GENERATOR-TWO OR THREE DROPS OF LIGHT OIL
CHECK OIL LEVEL IN MOTOR, ADDING MOTOR OIL WHEN NECESSARY -SEE
RECOMMENDATIONS UNDER "MOTOR LUBRICATION"
SPRING SHACKLES-LUBRICATE WITH CHASSIS LUBRICANT
STEERING KNUCKLES-LUBRICATE WITH CHASSIS LUBRICANT 'IF
LUBRICATE EVERY 1000 MILES • LUBRICATE EVERY 5000 MILES LUBRICATE
EVERY 10,000 MILES
*
STEERING KNUCKLES-LUBRICATE ' WITH CHASSIS LUBRICANT
STEERING CONNECTING ROD-* LUBRICATE WITH CHASSIS NO. 160 OIL
FRONT WHEEL BEARINGS-CLEAN
® AND PACK WITH WHEEL BEARING
GREASE- HIGH MELTING POINT
* TIE ROD-LUBRICATE WITH CHASSIS LUBRICANT
AIR CLEANER REMOVE AND CLEAN
® OUT WITH GASOLINE. DIP SCREEN
IN MOTOR OIL. KEEP FELT PAD DRY
FRONT SPRING BOLT --LUBRICATE " WITH CHASSIS LUBRICANT
STEERING GEAR -LUBRICATE WITH STEERING GEAR LUBRICANT
ACCELERATING PUMP SHAFT RE-MOVE COVER AND FILL SCREW HOLE WITH
GRAPHITE GREASE
BRAKE ROD PINS--LUBRICATE WITH '" LIGHT OIL
TRANSMISSION-SEE RECOMMENDATIONS UNDER "TRANSMISSION AND REAR AXLE LUBRICANTS"
REAR SPRING BOLT LUBRICATE 'N WITH CHASSIS LUBRICANT
SPRING SADDLE-LUBRICATE WITH " CHASSIS LUBRICANT
AXLE SHAFT BEARING-FILL AND mL TURN DOWN GREASE CUP-USE CUP
GREASE.
DIFFERENTIAL-SEE RECOMMENDATIONS UNDER "TRANSMISSION AND REAR AXLE LUBRICANTS"
SPRING SHACKLES- LUBRICATE h` WITH CHASSIS LUBRICANT
WATER PUMP-FILL AND TURN DOWN GREASE CUP. USE WATER PROOF GREASE-FILL
OIL CUP WITH A GOOD GRADE OF ENGINE OIL
FRONT WHEEL BEARINGS-CLEAN AND PACK WITH WHEEL BEARING GREASE-HIGH MELTING POINT
FRONT SPRING BOLT---LUBRICATE Ali WITH CHASSIS LUBRICANT '1~
DISTRIBUTOR SHAFT-FILL AND TURN DOWN GREASE CUP. USE CUP GREASE
CLUTCH RELEASE BEARING-OIL WHEN NECESSARY USING S.A.E. NO. 90 OR S.A.E. NO. 160
OIL
PROPELLER SHAFT EXTENSION - LUBRICATE WITH S. A. E. NO. 160 *. IN SUMMER AND
S. A. E. NO. 90 OIL IN WINTER
PROPELLER SHAFT BEARING -LUB- y RICATE WITH S. A. E. NO. 160 OIL ~N IN SUMMER
AND S. A. E. NO.
90 OIL IN WINTER
REAR SPRING BOLT-LUBRICATE WITH CHASSIS LUBRICANT
SPRING SADDLE-LUBRICATE WITH r CHASSIS LUBRICANT
AXLE SHAFT BEARING - FILL AND TURN DOWN GREASE CUP-USE CUP GREASE.
SPRING SHACKLES --LUBRICATE WITH CHASSIS LUBRICANT
 |
