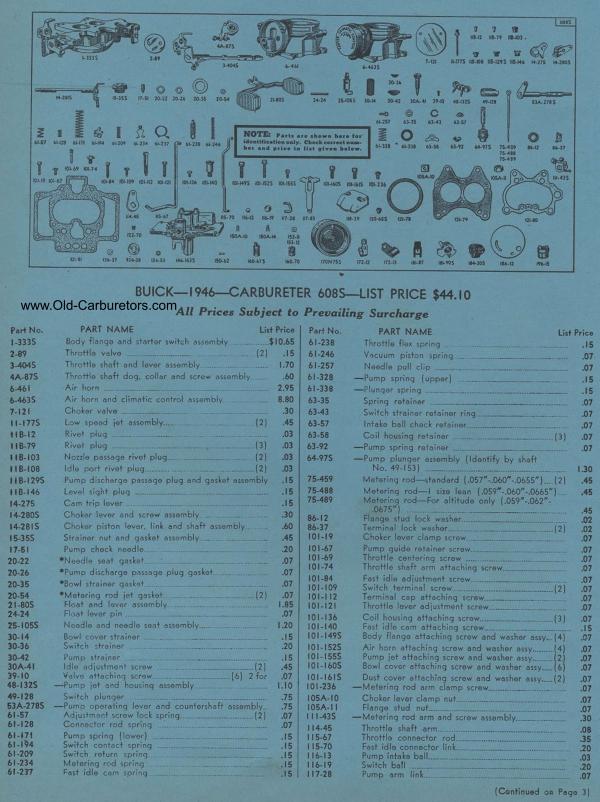

Page 2
61-238 Throttle flex spring .. _.... 15
61-246 Vacuum piston spring _ 07
61-257 Needle pull clip 07
61-328 —Pump spring (upper) 15
61-338 —Plunger spring - .15
63-35 Spring retainer --° .07
63-43 Switch strainer retainer ring 07
63-57 Intake ball check retainer 07
63-58 Coil housing retainer _ __(3) 07
63-92 —Pump spring retainer 07
64-97S —Pump plunger assembly (Identify by shaft
No. 49-153) °--- 1.30
75-459 Metering rod—standard (.057"-.060"-.0655")___.(2)
.45
75-488 Metering rod—I size lean (.059"-.060"-.0665").
.45
75-489 Metering rod—For altitude only (.059"-.062"-
.0675") 45
86-12 Flange stud lock washer 02
86-37 Terminal lock washer ....................................... (2) .02
101-19 Choker lever clamp screw 07
101-67 Pump guide retainer screw - .07
101-69 Throttle centering screw 07
101-74 Throttle shaft arm attaching screw 07
101-84 Fast idle adjustment screw 07
101-109 Switch terminal screw -- (2) 07
101-I12 Terminal cap attaching screw 07
101-121 Throttle lever adjustment screw 07
101-136 Coil housing attaching screw (3) .07
101-140 Fast idle cam attaching screw 15
I01-149S Body flange attaching screw and washer assy (4) .07
I01-1525 Air horn attaching screw and washer essy (4) .07
101-1555 Pump jet attaching screw and washer assy (2) .07
101-160S Bowl cover attaching screw and washer assy (6) .07
101-161S Dust cover attaching screw and washer assy (2) .07
101-236 —Metering rod arm clamp screw 07
105A-l0 Choker lever clamp nut 07
105A-II Flange stud nut 07
III-43S —Metering rod arm and screw assembly 30
114-45 Throttle shaft arm- 08
115-67 Throttle connector rod 35
115-70 Fast idle connector link --. .20
116-13 Pump intake ball 03
1 16-19 Switch ball . .20
117-28 Pump arm link 07
(Continued on Page 3)
7 7 1$
IIB-12 IIB-79 IIB-103
7-121 II-1775 1IB-638 118.129 5 116-146 14275
6085
14-2815 15-355 17-51 20-22 20-26 20-35 20.54
61-67 61-128 61-171 61-194 61-209 61-234 61-237 :I^ 61-238 61-246
? 401-69 101-74 i y
101-19 101-67 101-84 101-1109 1011-112 101-121 101-136 101-140
le\
30-36
|
