without Thermostatic Coil

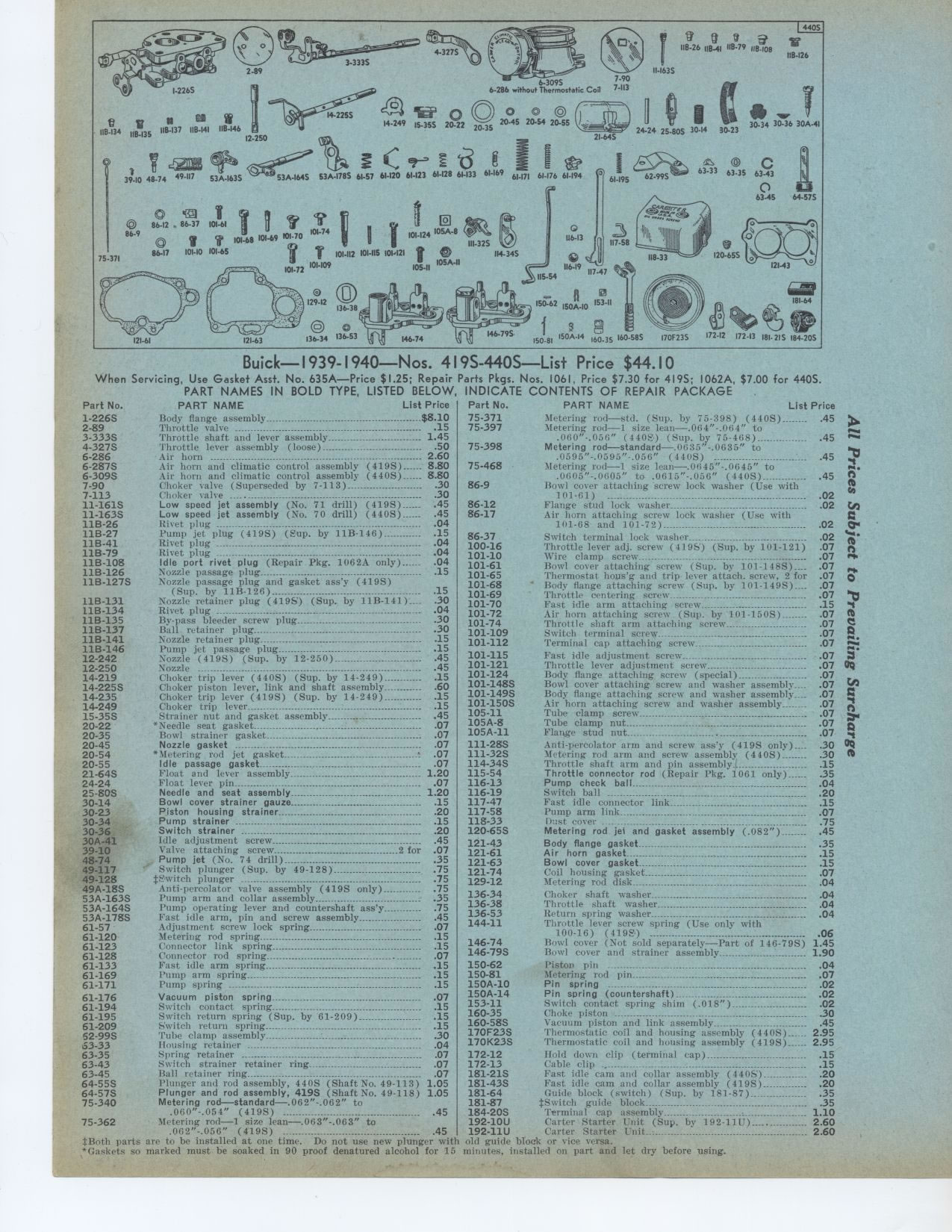

Buick— 1939- 1940—Nos. 419S-440S—List Price $44.10
Servicing, Use Gasket Asst. No. 635A—Price $1.25; Repair Parts Pkgs.
Nos. 1061, Price $7.30 for 419S; I062A, $7.00
PART NAMES IN BOLD TYPE, LISTED BELOW, INDICATE CONTENTS OF REPAIR PACKAGE
Part No. 75-371 75-397
PART NAME List Price
Body flange assembly $8 10
Throttle valve °---- 15
Throttle shaft and lever assembly 1 45
Throttle lever assembly (loose) 50
Air horn 2 60
Air horn and climatic control assembly (419S)_ _. 8 80
Air horn and climatic control assembly (440S) 8 80
Choker valve (Superseded by 7-113) .30
Choker valve ________________________________________________ 30
Low speed jet assembly (No. 71 drill) (419S) .45
Low speed jet assembly (No. 70 drill) (440S) 45
Rivet plug . ' .04
Pump jet plug (419S) (Sup. by 11B-146) .15
Rivet plug ___.._--..__._..__ 04
Rivet plug .04
Idle port rivet plug (Repair Pkg. 1062A only) 04
Nozzle passage plug .15
Nozzle passage plug and gasket ass'y (419S)
(Sup. by 11B-126) .15
Nozzle retainer plug (4195) (Sup. by 11B-141) 30
Rivet plug ` .04
By-pass bleeder screw plug .30
Ball retainer plug .30
Nozzle retainer plug .15
Pump jet passage plug .15
Nozzle (419S) (Sup. by 12-250) .45
Nozzle .45
Choker trip lever (440S) (Sup. by 14-249) .15
Choker piston lever, link and shaft assembly .60
Choker trip lever (419S) (Sup. by 14-249) .15
Choker trip lever _____ ....... .15
Strainer nut and gasket assembly .45
*Needle seat gasket 07
Bowl strainer gasket .07
Nozzle gasket .07
*Metering rod jet gasket .07
Idle passage gasket .07
Float and lever assembly 1 20
Float lever pin 07
Needle and seat assembly L20
Bowl cover strainer gauze 15
Piston housing strainer 20
Pump strainer .15
Switch strainer .20
Idle adjustment screw
Valve attaching screw 2 for
Pump jet (No. 74 drill)
Switch plunger (Sup. by 49-128)
$P.'witch plunger
Anti-percolator valve assembly (419S only) Pump arm and collar assembly
Pump operating lever and countershaft ass'y
Fast idle arm, pin and screw assembly Adjustment screw lock spring
Metering rod spring
Connector link spring
Connector rod spring ' .......
Pump arm spring
Pump spring
Vacuum piston spring
Switch contact spring 15
Switch return spring (Sup. by 61-209) 15
Switch return spring 15
Tube clamp assembly 30
Housing retainer . .04
Spring retainer .07
Switch strainer retainer ring 07
Ball retainer ring 07
Plunger and rod assembly, 440S (Shaft No. 49-113) 1 05
Plunger and rod assembly, 419S (Shaft No. 49-118) 1 05
Metering rod—standard—.062"-.062" to
.060"-.054" (419S) 45
Metering rod—1 size lean—.063"-.063" to
.062"-.056" (419S) 45
When
Part No. 1-226S 2-89
$Both parts *Gaskets so
PART NAME List Price
Metering rod—std. (Sup. by 75-398) (440S) 45
Metering rod—1 size Lean—.064"-.064" to
.060"-.0561" (4405-) (Sup. by 75-468) 45
75-398 Metering rod—standard—.0635"-.0635" to
.0595"-.0595"-.056" (440S) 45
75-468 Metering rod—1 size lean—.0645"-.0645" to
.0605"-.0605" to .0615"-.056" (440S) 45
86-9 Bowl cover attaching screw lock washer (Use with
101-61) . .02
86-12 Flange stud lock washer 02
86-17 Air horn attaching screw lock washer (Use with
101-68 and 101-72) ` .02
86-37 Switch terminal lock washer 02
100-16 Throttle lever adj. screw (4195') (Sup. by 101-121) .07
101-10 Wire clamp screw 07
101-61 Bowl cover attaching screw (Sup. by 101-148S)._. .07
101-65 Thermostat hous'g and trip lever attach. screw, 2 for .07
101-68 Body flange attaching screw (Sup. by 101-149S)__._ .07
101-69 Throttle centering screw 07
101-70 Fast idle arm attaching screw 15
101-72 Air horn attaching screw (Sup. by 101-150S)___._ .07
101-74 Throttle shaft arm attaching screw 07
101-109 Switch terminal screw 07
101-112 Terminal cap attaching screw .07
101-115 Fast idle adjustment screw .07
101-121 Throttle lever adjustment screw .07
101-124 Body flange attaching screw (special) .07
101-148S Bowl cover attaching screw and washer assembly.. .07
101-149S Body flange attaching screw and washer assembly .07
101-150S Air horn attaching screw and washer assembly .07
105-11 Tube clamp screw .07
105A-8 Tube clamp nut .07
105A-11 Flange stud nut .07
111.28S Anti-percolator arm and screw ass'y (419S only)._.. .30
111-32S Metering rod arm and screw assembly (440S) .30
114-34S Throttle shaft arm and pin assembly. .15
115-54 Throttle connector rod (Repair Pkg. 1061 only) .35
116-13 Pump check ball .04
116-19 Switch ball --. .20
117-47 Fast idle connector link .15
117-58 Pump arm link .07
118-33 Ih:st cover .75
120.65S Metering rod jet and gasket assembly (.082") 45
121-43 Body flange gasket ... .35
121-61 Air horn gasket 15
121-63 Bowl cover gasket .15
121-74 Coil housing gasket .07
129-12 Metering rod disk .04
136-34 Choker shaft washer .04
136-38 Throttle shaft washer. .04
136-53 Return spring washer .04
144-11 Throttle lever screw spring (Use only with
100-16) (4198) 06
146-74 Bowl cover (Not sold separately—Part of 146-79S) 1.45
146-79S Bowl cover and strainer assembly. 1.90
150-62 Piston pin ... .04
150-81 Metering rod pin .07
150A-10 Pin spring .02
150A-14 Pin spring (countershaft) .02
153-11 Switch contact spring shim (.018") ................ .02
160-35 Choke piston .30
160-58S Vacuum piston and link assembly .45
170F23S Thermostatic coil and housing assembly (440S) 2.95
170K23S Thermostatic coil and housing assembly (419S) 2.95
172-12 172-13 181-21S 181-43S 181-64 181-87 184-20S 192-10U 192-11U
for 4405.
Hold down clip (terminal cap) .15
Cable clip .. .15
Fast idle cam and collar assembly (4405) .20
Fast idle cam and collar assembly (419S) ___ .20
Guide block (switch) (Sup. by 181-87) .35
Switch guide block .35
Terminal cap assembly 1.10
Carter Starter Unit (Sup. by 192-11U).__.. 2.60
Carter Starter Unit 2.60
are to be installed at one time. Do not use new plunger with old guide block
or vice versa.
marked must be soaked in 90 proof denatured alcohol for 15 minutes, installed
on part and let dry before using.
