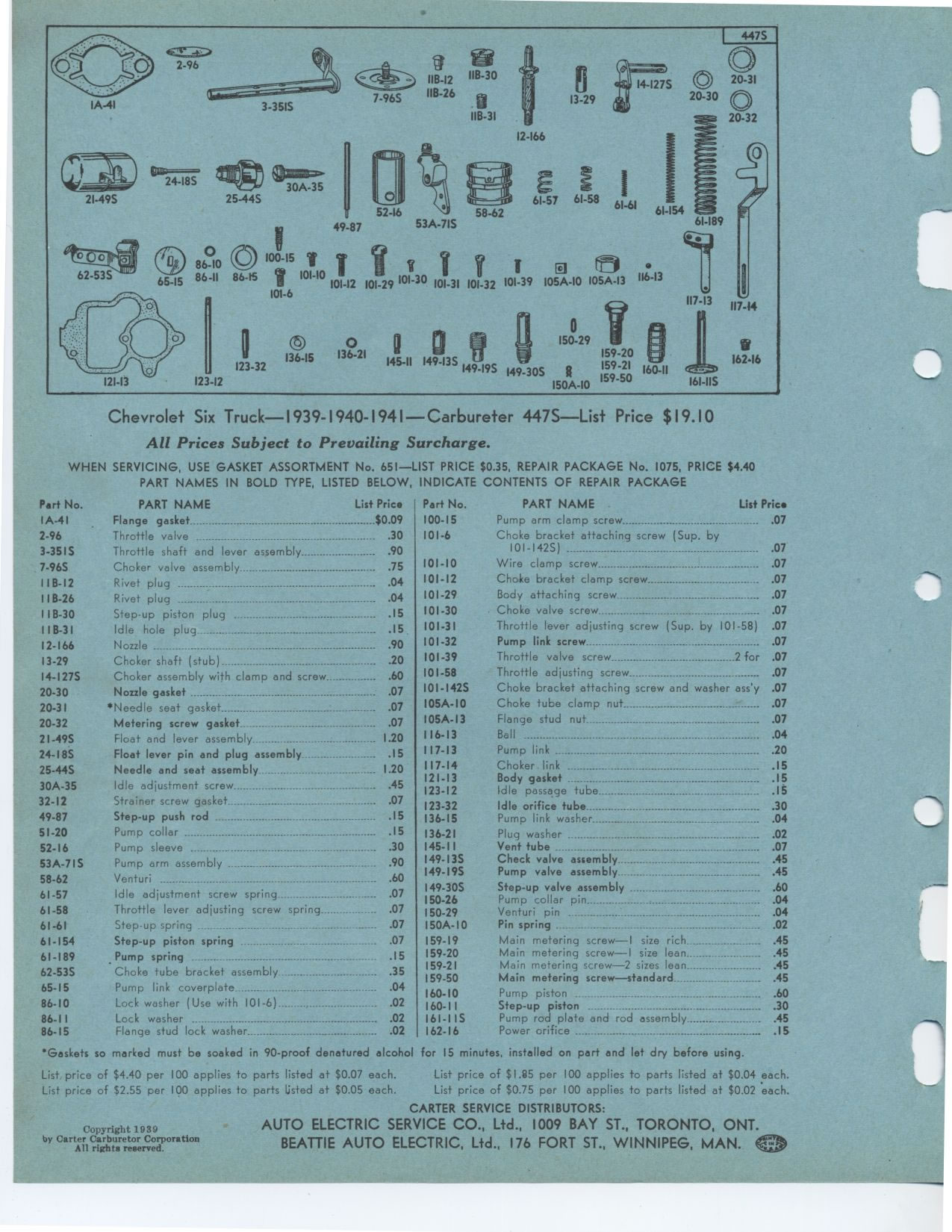

Chevrolet Six Truck—1939-1940-1941—Carbureter 447S—List Price
$19.10 All Prices Subject to Prevailing Surcharge.
WHEN SERVICING, USE GASKET ASSORTMENT No. 651—LIST PRICE $0.35, REPAIR
PACKAGE No. 1075, PRICE $4.40
PART NAMES IN BOLD TYPE, LISTED BELOW, INDICATE CONTENTS OF REPAIR PACKAGE
Pert No. PART NAME List Price
IA-41 Flange gasket $0.09
2-96 Throttle valve - .30
3-35IS Throttle shaft and lever assembly 90
7-96S Choker valve assembly 75
IIB-12 Rivet plug --- 04
IIB-26 Rivet plug 04
IIB-30 Step-up piston plug 15
IIB-31 Idle hole plug 15
12-166 Nozzle °- 90
13-29 Choker shaft (stub) 20
I4-127S Choker assembly with clamp and screw 60
20-30 Nozzle gasket 07
20-31 *Needle seat gasket 07
20-32 Metering screw gasket _ 07
2I-49S Float and lever assembly 1.20
24-18S Float lever pin and plug assembly ... 15
25-445 Needle and seat assembly 1.20
30A-35 Idle adjustment screw 45
32-12 Strainer screw gasket 07
49-87 Step-up push rod I5
51-20 Pump collar ---- 15
52-16 Pump sleeve -_- 30
53A-7IS Pump arm assembly 90
58-62 Venturi 60
61-57 Idle adjustment screw spring 07
61-58 Throttle lever adjusting screw spring 07
61-61 Step-up spring -- 07
61-154 Step-up piston spring 07
61-189 Pump spring ---- _ 15
62-53S Choke tube bracket assembly 35
65-I5 Pump link coverplate 04
86-10 Lock washer (Use with 101-6) 02
86-I1 Lock washer 02
86-15 Flange stud lock washer 02
`Gaskets so marked must be soaked in 90-proof denatured alcohol
Part No. PART NAME List Price
100-15 Pump arm clamp screw 07
101-6 Choke bracket attaching screw (Sup. by
I01-142S) 07
101-10 Wire clamp screw 07
101-12 Choke bracket clamp screw 07
101-29 Body attaching screw 07
101-30 Choke valve screw 07
101.31 Throttle lever adjusting screw (Sup. by 101-58) 07
101-32 Pump link screw 07
101-39 Throttle valve screw 2 for .07
101-58 Throttle adjusting screw 07
I01-142S Choke bracket attaching screw and washer ass'y .07
I05A-10 Choke tube clamp nut 07
I05A-13 Flange stud nut 07
116-13 Ball 04
117-13 Pump link .................. ...... ........................... .20
117-14 Choker link I5
121-13 Body gasket 15
123-12 Idle passage tube 15
123-32 Idle orifice tube - 30
136-15 Pump link washer 04
136-21 Plug washer 02
145-11 Vent tube 07
149-13S Check valve assembly 45
I49-19S Pump valve assembly 45
149-30S Step-up valve assembly 60
50-26 Pump collar pin 04
50-29 Venturi pin 04
150A-10 Pin spring ... - - 02
159-19 Main metering screw—I size rich 45
159-20 Main metering screw—I size lean 45
159-21 Main metering screw—2 sizes lean 45
59-50 Main metering screw—standard 45
160-10 Pump piston 60
160-11 Step-up piston 30
161-I IS Pump rod plate and rod assembly 45
162-16 Power orifice 15
for 15 minutes, installed on part and let dry before using.
List price of $4.40 per 100 applies to parts listed at $0.07 each. List price
of $1.85 per 100 applies to parts listed at $0.04 each.
List price of $2.55 per 100 applies to parts Listed at $0.05 each. List price
of $0.75 per 100 applies to parts listed at $0.02 each.
Copyright 1939
