If engine misses when load is suddenly increased, remove pump
jet and clean with compressed air. However, it is usually advisable to replace
the pump jet, as its cost is nominal. (All jets must be seated gasoline tight.)
This condition may also be due to damaged or worn plunger leather in accelerating
pump cylinder or discharge check in discharge passage. If plunger is removed
from cylinder, use care when installing to avoid damage to plunger leather.
Correct air fuel ratio is provided by a "balance tube" in the air
horn. The balance tube should be checked each time the carbureter is serviced
to see that the passage is open. Theobject of a balanced carbureter is to provide
a constant air fuel ratio regardless of type, size or condition of air cleaner.
Should the cleaner become clogged, the capacity will be reduced but the air-fuel
mixture ratio will not be changed.
A fuel filter is incorporated in the carbureter bowl casting. It should be
cleaned periodically by removing the filter bowl and element (small discs).
Soak element in acetone or a mixture of half and half Ethyl Alcohol and Benzol
until all foreign material dissolves. Then allow to dry. CAUTION—do not
blow off with compressed air which may damage discs.

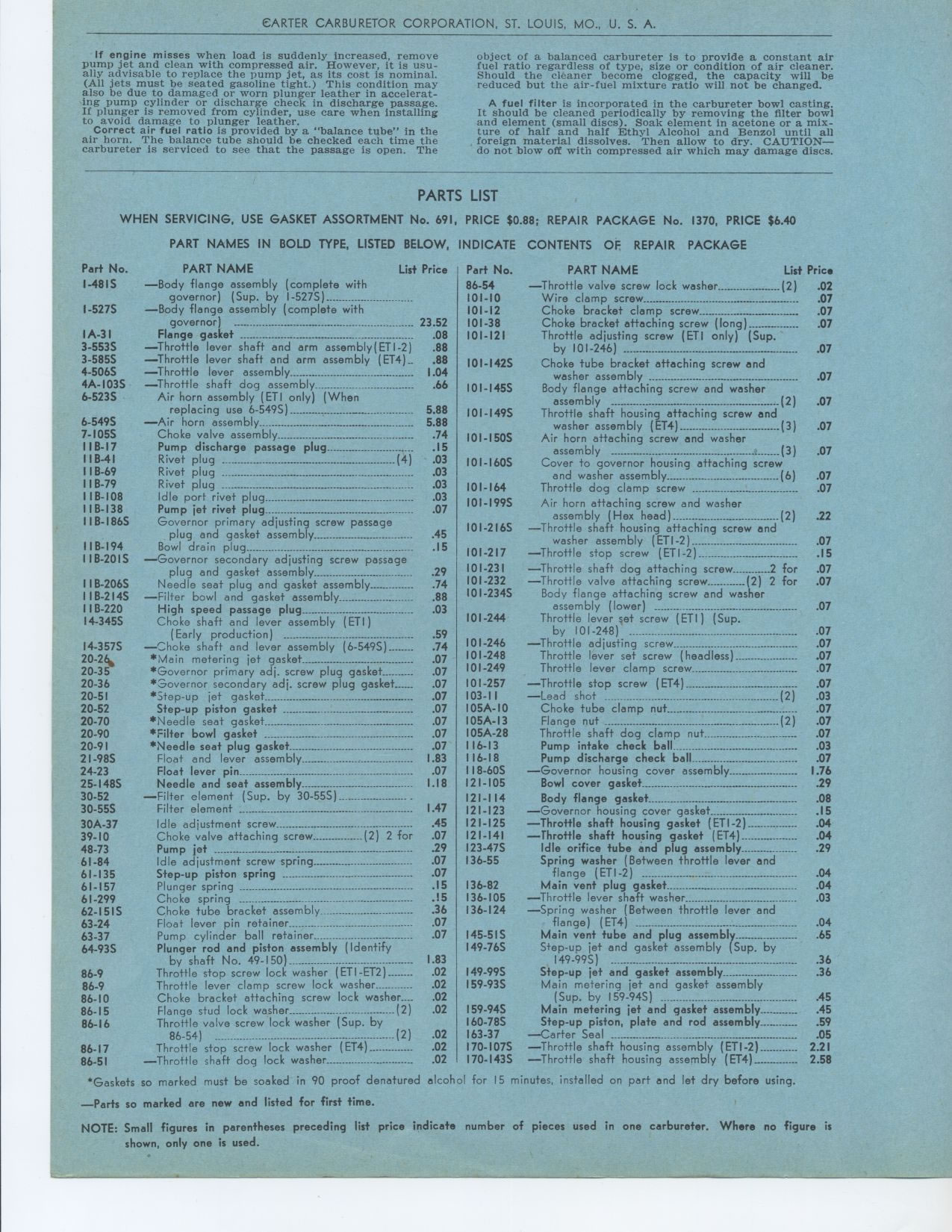

PARTS LIST
WHEN SERVICING, USE GASKET ASSORTMENT No. 691, PRICE $0.88; REPAIR PACKAGE
No. 1370, PRICE $6.40
PART NAMES IN BOLD TYPE, LISTED BELOW, INDICATE CONTENTS OF REPAIR PACKAGE
Part No. PART NAME
I-481S —Body flange assembly (complete with
governor) (Sup. by I-527S)
..__._
I-527S —Body flange assembly (complete with
governor) - 23.52
IA-31 Flange gasket 08
3-553S —Throttle lever shaft and arm assembly(ETI-2) .88
3-585S —Throttle lever shaft and arm assembly (ET4) 88
4-506S —Throttle lever assembly 1.04
4A-103S —Throttle shaft dog assembly 66
6-523S Air horn assembly (ETI only) (When
replacing use 6-549S) 5.88
6-549S —Air horn assembly 5.88
7-I05S Choke valve assembly 74
IIB-17 Pump discharge passage plug 15
IIB-41 Rivet plug ... (4) .03
B-69 Rivet plug 03
IIB-79 Rivet plug 03
IIB-108 Idle port rivet plug 03
IIB-138 Pump jet rivet plug_- 07
IIB-186S Governor primary adjusting screw passage
plug and gasket assembly 45
Bowl drain plug .15
— Governor secondary adjusting screw passage
plug and gasket assembly 29
IIB-206S Needle seat plug and gasket assembly 74
IIB-214S —Filter bowl and gasket assembly 88
IIB-220 High speed passage plug 03
I4-3455 Choke shaft and lever assembly (ETI)
(Early production)
—Choke shaft and lever assembly (6-549S)
*Main metering jet gasket
*Governor primary adj. screw plug gasket
*Governor secondary adj. screw plug gasket
*Step-up jet gasket
Step-up piston gasket °
*Needle seat gasket
*Filter bowl gasket
*Needle seat plug gasket
Float and lever assembly
Float lever pin
Needle and seat assembly
........
— Filter element (Sup. by 30-55S) Filter element
30A-37 Idle adjustment screw
39-10 Choke valve attaching screw (2) 2 for
48-73 Pump jet --°
61-84 Idle adjustment screw spring
61-135 Step-up piston spring
61-157 Plunger spring
61-299 Choke spring
62-151S Choke tube bracket assembly
63-24 Float lever pin retainer
63-37 Pump cylinder ball retainer
64-93S Plunger rod and piston assembly (Identify
by shaft No. 49-150)
86-9 Throttle stop screw lock washer (ETI-ET2)
86-9 Throttle lever clamp screw lock washer
86-10 Choke bracket attaching screw lock washer __.
Flange stud lock washer (2)
86-16 Throttle valve screw lock washer (Sup. by
86-54) (2)
86-17 Throttle stop screw lock washer (ET4)
86-51 —Throttle shaft dog lock washer
— Throttle valve screw lock washer (2)
Wire clamp screw °
Choke bracket clamp screw
_
Choke bracket attaching screw (long)
Throttle adjusting screw (ETI only) (Sup.
by 101-246) -° °---
Choke tube bracket attaching screw and
washer assembly
Body flange attaching screw and washer
assembly (2)
Throttle shaft housing attaching screw and
washer assembly (ET4) (3)
Air horn attaching screw and washer
assembly ° -(3)
Cover to governor housing attaching screw
and washer assembly (6)
101-164 Throttle dog clamp screw
101-1995 Air horn attaching screw and washer
assembly (Hex head) (2)
101-2165 — Throttle shaft housing attaching screw and
washer assembly (ETI-2) 07
101-217 —Throttle stop screw (ETI-2) 15
101-231 —Throttle shaft dog attaching screw 2 for .07
101-232 —Throttle valve attaching screw _ (2) 2 for .07
101-234S Body flange attaching screw and washer
assembly (lower) ° 07
101-244 Throttle lever set screw (ETI) (Sup.
by 101-248) .07
101-246 —Throttle adjusting screw 07
101-248 Throttle lever set screw (headless) .07
101-249 Throttle lever clamp screw 07
101-257 —Throttle stop screw (ET4) 07
103-11 —Lead shot ... (2) .03
I05A-10 Choke tube clamp nut 07
105A-13 Flange nut (2) .07
105A-28 Throttle shaft dog clamp nut 07
116-13 Pump intake check ball __ 03
116-18 Pump discharge check ball 07
118-60S —Governor housing cover assembly 1.76
121-105 Bowl cover gasket 29
121-114 Body flange gasket 08
121-123 —Governor housing cover gasket 15
121-125 —Throttle shaft housing gasket (ETI-2) 04
121-141 —Throttle shaft housing gasket (ET4) 04
123-475 Idle orifice tube and plug assembly 29
136-55 Spring washer (Between throttle lever and
flange (ETI-2) 04
136-82 Main vent plug gasket 04
136-105 —Throttle lever shaft washer 03
136-124 —Spring washer (Between throttle lever and
flange) (ET4) -- .04
145-51S Main vent tube and plug assembly 65
149-76S Step-up jet and gasket assembly (Sup. by
149-99S) 36
149-995 Step-up jet and gasket assembly 36
159-93S Main metering jet and gasket assembly
(Sup. by 159-94S) .45
159-945 Main metering jet and gasket assembly 45
160-78S Step-up piston, plate and rod assembly__ 59
163-37 —Carter Seal 05
170-1075 —Throttle shaft housing assembly (ETI-2) 2.21
170-143S —Throttle shaft housing assembly (ET4) 2.58
*Gaskets so marked must be soaked in 90 proof denatured alcohol for 15 minutes,
installed on part and let dry before using. —Parts so marked are new
and listed for first time.
NOTE: Small figures in parentheses preceding list price indicate number of
pieces used in one carbureter. Where no figure is shown, only one is used.
