2041
165
1246.5
7373 7.415
18.6 1
115-55
1116L5
3 - 1 48-39
30A-37 4144
C
e)
4199
17.30
75415
51-26
0
8110
® v t T
6111 66-17 1014 101-10 101.12
117-35
121.37 12148
136-35 13646
149415
145-143 149-433
145.253
121.41
123316
160A•,3 150A-14
159565
159505 15939$ 159405 159315
159435
taus
10111 105A.4
11113
71735
ioi.ss
l0I
I
101.54
0
I

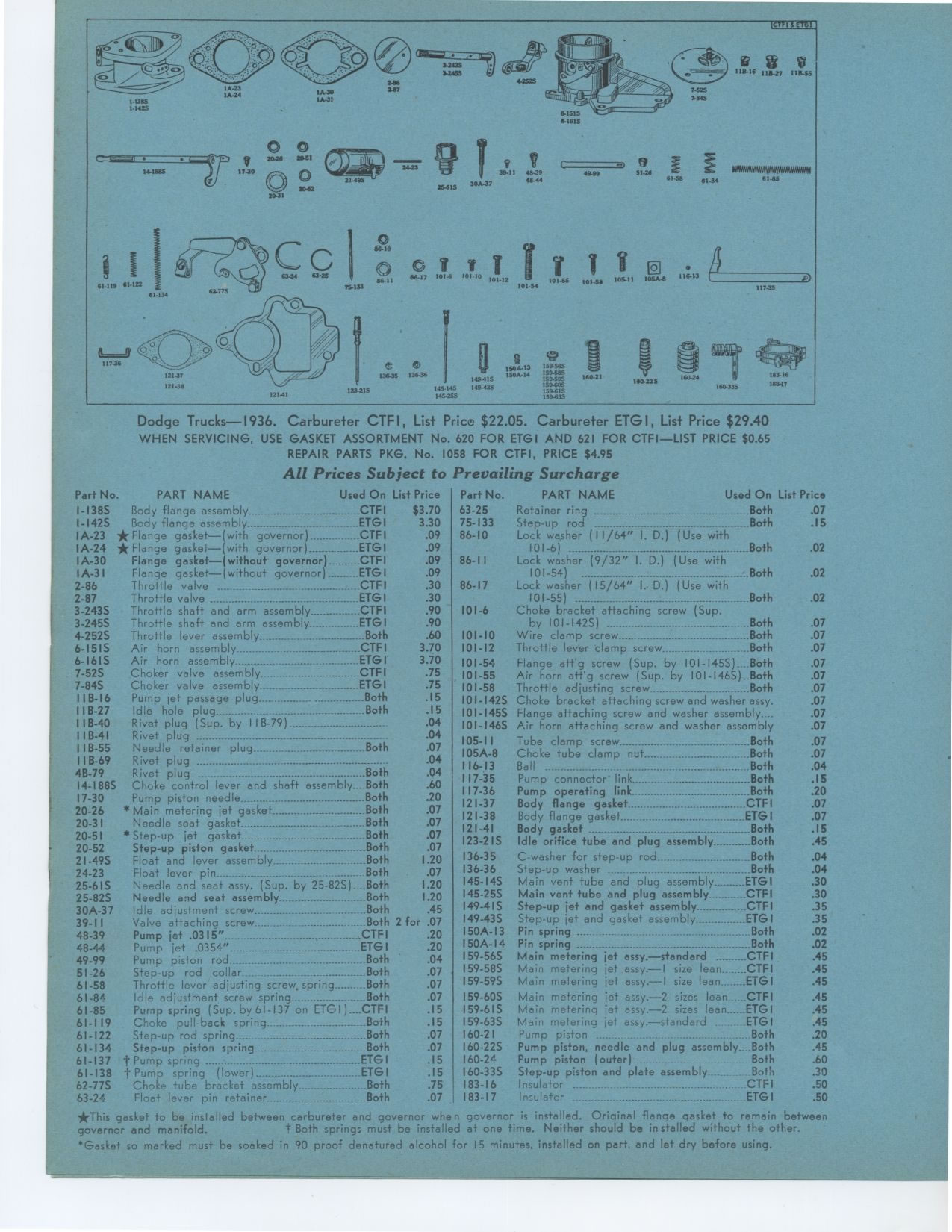

Dodge Trucks-1936. Carbureter CTFI, List Price $22.05. Carbureter ETGI, List
Price $29.40
WHEN SERVICING, USE GASKET ASSORTMENT No. 620 FOR ETGI AND 621 FOR CTFI—LIST
PRICE $0.65 REPAIR PARTS PKG. No. 1058 FOR CTFI, PRICE $4.95
All Prices Subject to Prevailing Surcharge
Part No. PART NAME Used On List Price Part No. PART NAME Used On List Price
I-1385 Body flange assembly _CTFI $3.70
I-1425 Body flange assembly ETGI 3.30
IA-23 *Flange gasket—(with governor) CTFI .09
IA-24 *Flange gasket—(with governor) ETGI .09
IA-30 Flange gasket—(without governor) CTFI .09
1A-31 Flange gasket—(without governor) ETGI .09
2-86 Throttle valve CTFI .30
2-87 Throttle valve ETGI .30
3-243S Throttle shaft and arm assembly CTFI .90
3-245S Throttle shaft and arm assembly ETGI .90
4-252S Throttle lever assembly Both .60
6-1515 Air horn assembly CTFI 3.70
6-1615 Air horn assembly ETGI 3.70
7-52S Choker valve assembly -CIF! .75
7-84S Choker valve assembly ETGI .75
IIB-16 Pump jet passage plug Both 15
B-27 Idle hole plug Both .15
IIB-40 Rivet plug (Sup. by IIB-79) 04
IIB-41 Rivet plug - .04
IIB-55 Needle retainer plug Both .07
IB-69 Rivet plug 04
4B-79 Rivet plug Both .04
I4-188S Choke control lever and shaft assembly. _Both .60
17-30 Pump piston needle Both .20
20-26 • Main metering jet gasket Both .07
20-31 Needle seat gasket Both .07
20-51 • Step-up jet gasket Both .07
20-52 Step-up piston gasket-- -__Both .07
21-49S Float and lever assembly Both 1.20
24-23 Float lever pin Both .07
25-615 Needle and seat assy. (Sup. by 25-82S). Both 1.20
25-82S Needle and seat assembly Both 1.20
30A-37 Idle adjustment screw Both .45
39-11 Valve attaching screw -Both 2 for .07
48-39 Pump jet .0315" CTFI .20
48-44 Pump jet .0354"..... _ETGI .20
49-99 Pump piston rod Both .04
51-26 Step-up rod collar _Both .07
61-58 Throttle lever adjusting screw, spring -_Both .07
61-84 Idle adjustment screw spring Both .07
61-85 Pump spring (Sup. by 61-137 on ETGI ) CTFI .15
61-119 Choke pull-back spring Both .15
61-122 Step-up rod spring Both .07
61-134 Step-up piston spring Both .07
61-137 t Pump spring _ _-----------------• ETGI .15
61-138 t Pump spring (lower) ETGI .15
62-77S Choke tube bracket assembly Both .75
63-24 Float lever pin retainer Both .07
63-25 Retainer ring Both .07
75-133 Step-up rod Both .15
86-10 Lock washer (11/64" I. D.) (Use with
101-6) ° ---Both .02
86-II Lock washer (9/32" I. D.) (Use with
101-54) Both .02
86-17 Lock washer (15/64" I. D.) (Use with
101-55) °-- -Both .02
101-6 Choke bracket attaching screw (Sup.
by 101-1425) ---_ Both .07
101-10 Wire clamp screw _Both .07
101-12 Throttle lever clamp screw Both .07
101-54 Flange att'g screw (Sup. by I01-1455) -.Both .07
101-55 Air horn att'g screw (Sup. by 101-146S) Both .07
101-58 Throttle adjusting screw Both .07
10I-I42S Choke bracket attaching screw and washer assy. .07
I01-1455 Flange attaching screw and washer assembly.... .07
I01-146S Air horn attaching screw and washer assembly .07
105-II Tube clamp screw Both .07
105A-8 Choke tube clamp nut _-Both .07
116-13 Ball -- Both .04
117-35 Pump connector link Both .15
117-36 Pump operating link Both .20
121-37 Body flange gasket CIF! .07
121-38 Body flange gasket__ ETGI .07
121-41 Body gasket Both .15
123-2 IS Idle orifice tube and plug assembly Both .45
136-35 C-washer for step-up rod Both .04
136-36 Step-up washer Both .04
145-14S Main vent tube and plug assembly ETGI .30
145-255 Main vent tube and plug assembly CTFI .30
149-4IS Step-up jet and gasket assembly CIF! .35
149-43S Step-up jet and gasket assembly ETGI 35
150A-13 Pin spring Both .02
150A-14 Pin spring Both .02
159-56S Main metering jet assy.—standard ..-..__CTFI .45
159-58S Main metering jet assy.—1 size lean .. CIA .45
159-59S Main metering jet assy.—I size lean ETGI .45
159-60S Main metering jet assy.—2 sizes lean _.-CTFI .45
159-61S Main metering jet assy.—2 sizes lean .. ETGI .45
159-63S Main metering jet assy.—standard __ETGI .45
160-21 Pump piston .....____ Both .20
160-22S Pump piston, needle and plug assembly- Both .45
160-24 Pump piston (outer) Both .60
160-33S Step-up piston and plate assembly Both .30
183-16 Insulator ... ...__-.. _ CTFI .50
183-17 Insulator _ETGI .50
*This gasket to be installed between carbureter and governor when governor
is installed. Oriainal flange gasket to remain between governor and manifold.
t Both springs must be installed at one time. Neither should be in stalled
without the other.
'Gasket so marked must be soaked in 90 proof denatured alcohol for 15 minutes,
installed on part, and let dry before using.
