Carburetors for old Dodge Trucks : DODGE TRUCKS 1934Previous | Home | Next |
 |
3-1985 3-1996
e
C
4948
6141
f 1019
101.64
O
72521 12529
i 149.21S 149305
159.19
0 159.20
70- 159.22
150A-13 159-23 159.32 15933 159.34
162-13
16
162.16
121.17
153-10 183-11
V
15045
T
43810
4942
T
38A.26 39.11
4830 4840
118.16 116.31
Y V
118.60 118.54 11B-55
0
101.10
101-12
1032
160-21
160.145
160.17
140.14S 145.185
123.185
1A-20 1A-21
246 2.71
1.103S 1.1045 1-1085
DODGE TRUCK3.34
7.625
0
1 2W3 2
61.72 1054 10
0 11819
6145
6.4.11
117.30
r
26.12

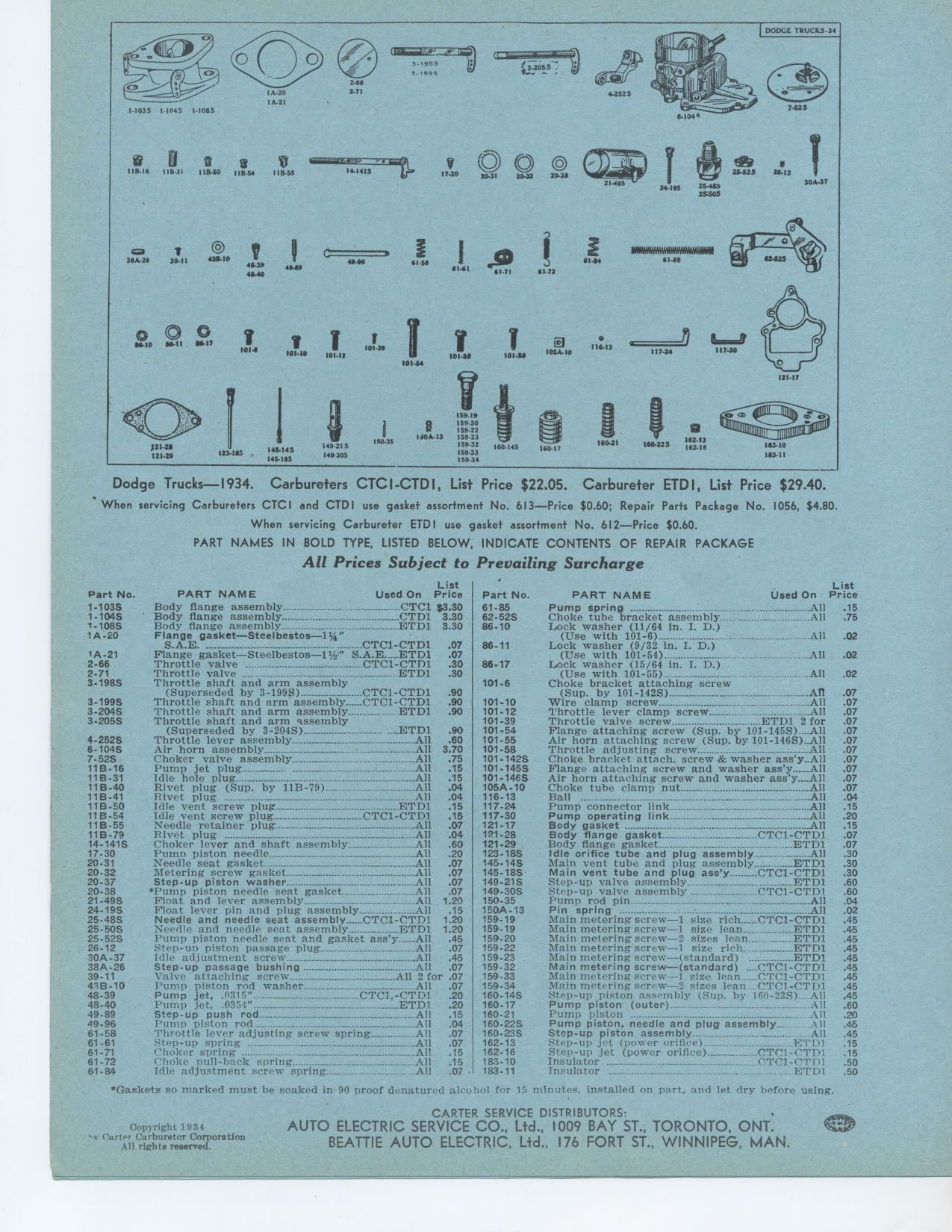

Dodge Trucks-1934. Carbureters CTCI-CTDI, List Price $22.05. Carbureter ETDI,
List Price $29.40.
When servicing Carbureters CTCI and CTDI use gasket assortment No. 613—Price
$0.60; Repair Parts Package No. 1056, $4.80. When servicing Carbureter ETD!
use gasket assortment No. 612—Price $0.60. PART NAMES IN BOLD TYPE, LISTED
BELOW, INDICATE CONTENTS OF REPAIR PACKAGE
All Prices Subject to Prevailing Surcharge
List Part No. PART NAME Used On Price
1-103S Body flange assembly CTC1 $3.30
1-104S Body flange assembly CTDI 3.30
1-108S Body flange assembly ETD1 3.30
1A-20 Flange gasket—Steelbestos—13/4"
S.A.E CTC1-CTD1 .07
1A-21 Flange gasket—Steelbestos—11/4'" S.A.E ETD1 .07
2-66 Throttle valve CTC1-CTDI .30
2-71 Throttle valve ..... 30
3-198S Throttle shaft and arm assembly
(Superseded by 3-199S) CTC1-CTD1 .90
3-199S Throttle shaft and arm assembly CTC1-CTDI .90
3-204S Throttle shaft and arm assembly ETD1 .90
3-205S Throttle shaft and arm assembly
(Superseded by 3-204S) ETD1 .90
4-252S Throttle lever assembly All .60
6-104S Air horn assembly All 3.70
7-52S Choker valve assembly All .75
11B-16 Pump jet plug All .15
11B-31 Idle hole plug All .15
11B-40 Rivet plug (Sup. by 11B-79) All .04
11B-41 Rivet plug All .04
11B-50 Idle vent screw plug ETD1 .15
11B-54 Idle vent screw plug CTC1-CTDI .15
11B-55 Needle retainer plug All .07
11B-79 Rivet plug _--°- All .04
14-141S Choker lever and shaft assembly All .60
17-30 Pumn piston needle All .20
20-31 Needle seat gasket.._ .. All .07
20-32 Metering screw gasket All .07
20-37 Step-up piston washer All .07
20-38 *Pump piston needle seat gasket All .07
21-49S Float and lever assembly All 1.20
24-19S Float lever pin and plug assembly All .15
25-48S Needle and needle seat assembly CTC1-CTDI 1.20
25-50S Needle and needle seat assembly ETD1 1.20
25-52S Pump piston needle seat and gasket ass'y All .45
26-12 Step-uu piston passage plug All .07
30A-37 Idle adjustment screw_ All .45
38A-26 Step-up passage bushing All .07
39-11 Valve attaching screw All 2 for .07
43B-10 Pump piston rod washer All .07
48-39 Pump jet, .0315" CTC1,-CTD1 .20
48-40 Pump jet, .0354" ETD1 .20
49-89 Step-up push rod All .15
49-96 Pump piston rod ° All .04
61-58 Throttle lever adjusting screw spring All .07
61-61 Step-up spring All .07
61-71 Choker spring All .15
61-72 Choke null-hack spring All .15
61-84 Idle adjustment screw spring All .07
List Part No. PART NAME Used On Price
61-85 Pump spring All .15
62-52S Choke tube bracket assembly All .75
86-10 Lock washer (11/64 in. I. D.)
(Use with 101-6) All .02
Lock washer (9/32 in. I. D.)
(Use with 101-54) All .02
Lock washer (15/64 in. I. D.)
(Use with 101-55) All .02
Choke bracket attaching screw
(Sup. by 101-142S) All .07
101-10 Wire clamp screw All .07
101-12 Throttle lever clamp screw All .07
101-39 Throttle valve screw ETD1 2 for .07
101-54 Flange attaching screw (Sup. by 101-145S) All .07
101-55 Air horn attaching screw (Sup. by 101-146S) All .07
101-58 Throttle adjusting screw All .07
101-142S Choke bracket attach. screw & washer ass'y All .07
101-145S Flange attaching screw and washer ass'y All .07
101-1465 Air horn attaching screw and washer ass'y All .07
105A-10 Choke tube clamp nut All .07
116-13 Ball All .04
117-24 Pump connector link All .15
117-30 Pump operating link All .20
121-17 Body gasket ° All .15
121-28 Body flange gasket CTC1-CTD1 .07
121-29 Body flange gasket ETD1 .07
123-18S Idle orifice tube and plug assembly All .30
145-14S Main vent tube and plug assembly ETD1 .30
145-18S Main vent tube and plug ass'y CTC1-CTDI .30
149-21S Step-up valve assembly ETD1 .60
149-30S Step-up valve assembly CTCl-CTDI .60
150-35 Pump rod pin -°- All .04
150A-13 Pin spring --°-- --- --°----All .02
159-19 Main metering screw—1 size rich CTC1-CTDI .45
159-19 Main metering screw—1 size lean ETD1 .45
159-20 Main metering screw—2 sizes lean ETD1 .45
159-22 Main metering screw—1 size rich ETD1 .45
159-23 Main metering screw—(standard) ETD1 .45
159-32 Main metering screw—(standard) CTC1-CTDI .45
159-33 Main metering screw—1 size lean CTC1-CTD1 .45
159-34 Main metering screw—2 sizes lean CTC1-CTD1 .45
160-14S Step-up piston assembly (Sup- by 160-23S) .All .45
160-17 Pump piston (outer) All .60
160-21 Pump piston All .20
160-22S Pump piston, needle and plug assembly All .45
160-23S Step-up piston assembly All .45
162-13 Step-up jet (power orifice) ETDI .15
162-16 Step-up jet (power orifice) CTC1-CTIAI .15
183.10 Insulator CTC1-CTDI .50
183-11 insulator ....°- ETD] .50
86-11 86-17 101-6
*Gaskets so marked must be soaked in 90 proof denatured alcohol for 15 minutes,
installed on part, and let dry before using.
Copyright 1934
