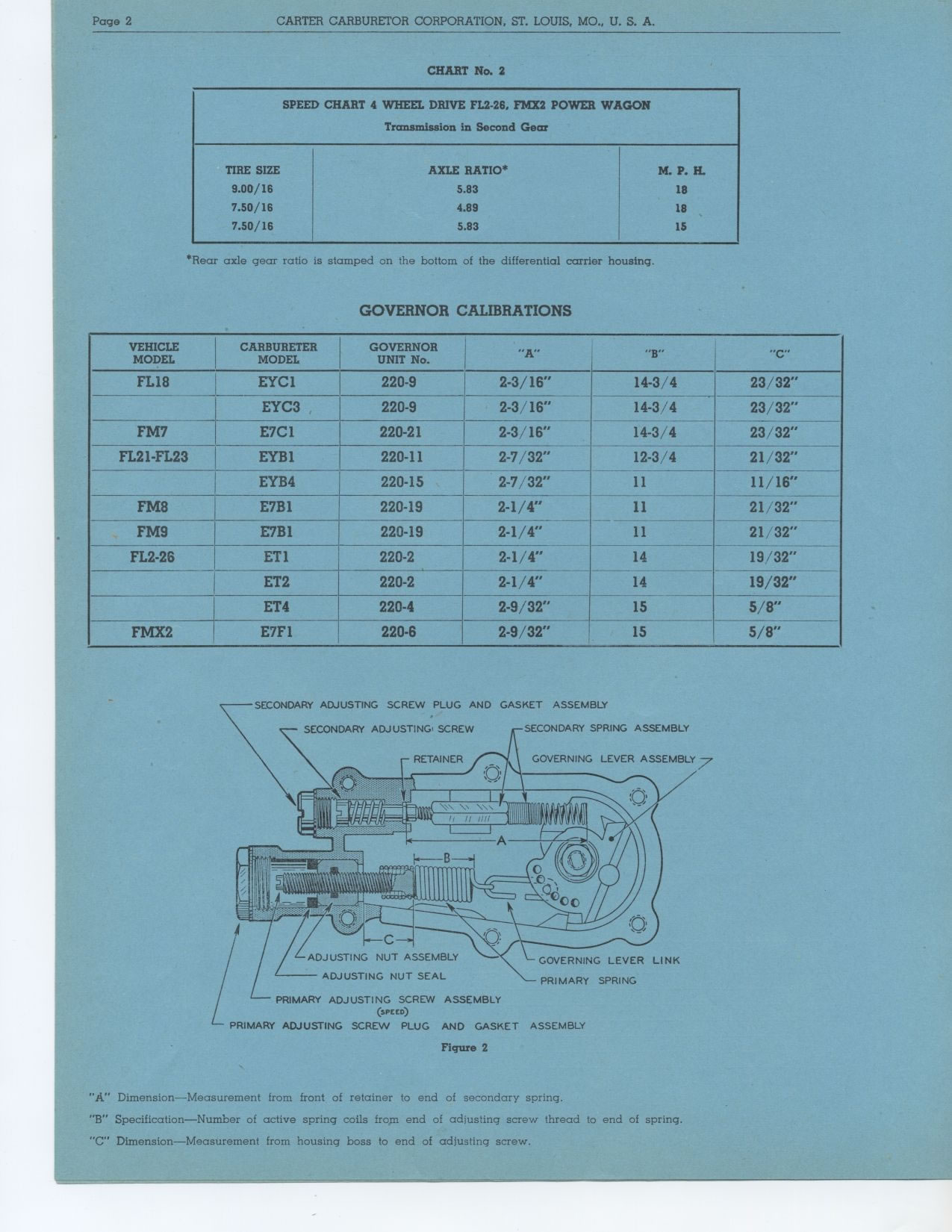

Page 2 CARTER CARBURETOR CORPORATION, ST. LOUIS, MO., U. S.
A.
CHART No. 2
SPEED CHART 4 WHEEL DRIVE FL2-26, FMX2 POWER WAGON
Transmission in Second Gear
TIRE SIZE AXLE RATIO* M. P. H.
9.00/ 16 5.83 18
7.50/ 16 4.89 18
7.50/ 16 5.83 15
*Rear axle gear ratio is stamped on the bottom of the differential carrier
housing.
GOVERNOR CALIBRATIONS
VEHICLE CARBURETER GOVERNOR
MODEL MODEL UNIT No.
FL18 EYC1 220-9 2-3/16" 14-3/4 23/32"
EYC3 220-9 2-3/16" 14-3/4 23/32"
FM7 E7C1 220-21 2-3/16" 14-3/4 23/32"
FL21-FL23 EYB1 220-11 2-7/32" 12-3/4 21/32"
-- --------- ---- -- -- -
EYB4 220-15 2-7/32" 11 11/16"
FM8 E7B1 220-19 2-1/4" 11 21/32"
FM9 E7B1 220-19 2-1/4" 11 21,32"
FL2-26 ET1 220-2 2-1/4" 14 19/32"
ET2 220-2 2-1/4" 14 19/32"
ET4 220-4 2-9/32" 15 5/8"
FMX2 E7F1 220-6 2-9/32" 15 5/8"
Figure 2
"A" Dimension--Measurement from front of retainer to end of secondary
spring.
"B" Specification—Number of active spring coils from end of adjusting
screw thread to end of spring.
"C" Dimension—Measurement from housing boss to end of adjusting
screw.
SECONDARY ADJUSTING SCREW PLUG AND GASKET ASSEMBLY
SECONDARY SPRING ASSEMBLY
SECONDARY ADJUSTING, SCREW
~~L \\\l iii _(C)
11 iA.11111111l1l1'-` moo0
PRIMARY ADJUSTING SCREW ASSEMBLY (SPEED)
PRIMARY ADJUSTING SCREW PLUG AND GASKET ASSEMBLY
|
