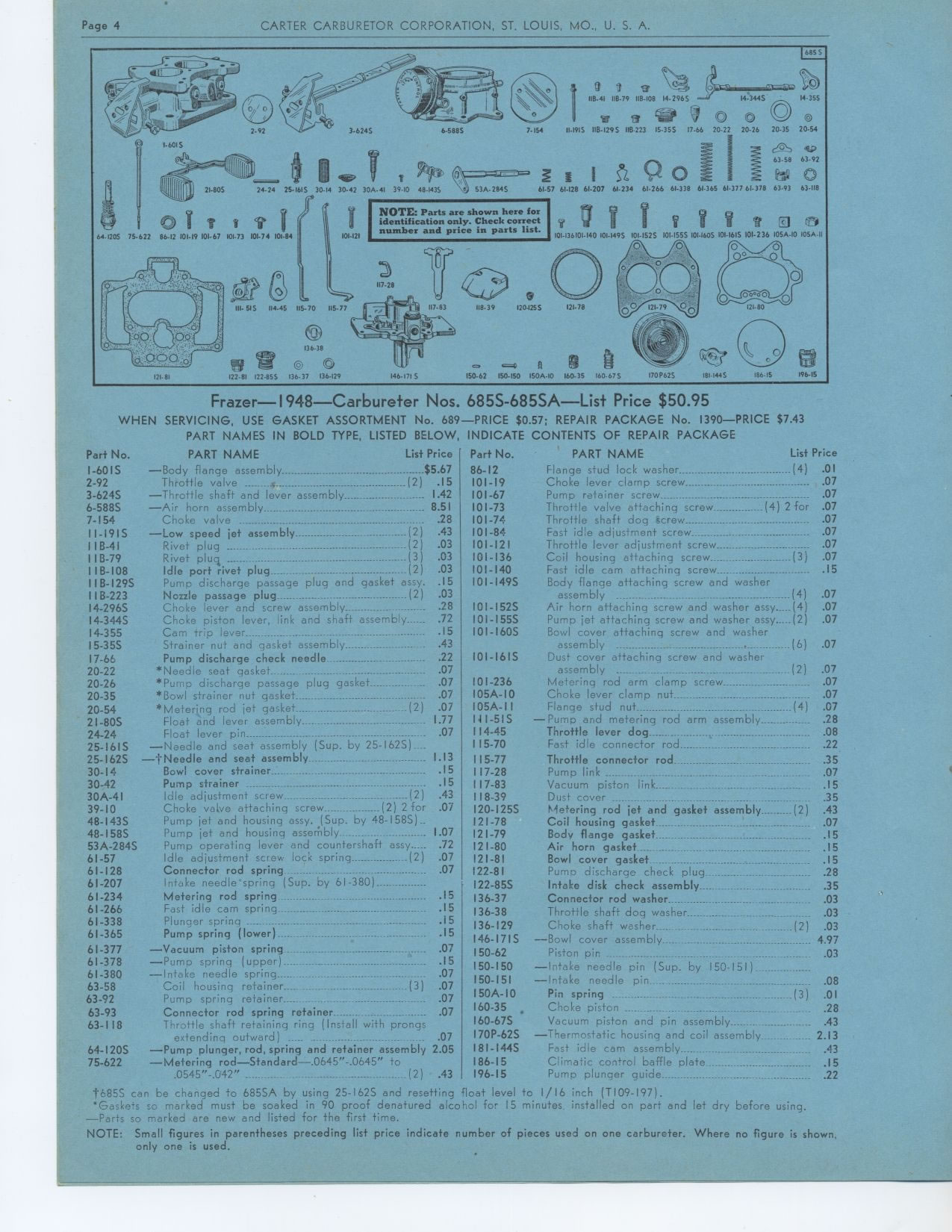

Page 4 CARTER CARBURETOR CORPORATION, ST. LOUIS, MO., U. S.
A.
Frazer 1948 Carbureter Nos. 685S 685SA List Price
$50.95
WHEN SERVICING, USE GASKET ASSORTMENT No. 689—PRICE $0.57; REPAIR PACKAGE
No. 1390—PRICE $7.43
PART NAMES IN BOLD TYPE, LISTED BELOW, INDICATE CONTENTS OF REPAIR PACKAGE
OTE: Parts are shown here for identification only. Check correct number
and price in parts list.
PART NAME List Price
—Body flange assembly__ $5.67
Throttle valve _i._ 2 .15
--------------------------------------
-Throttle shaft and lever assembly 1.42
—Air horn assembly 8.51
Choke valve .28
—Low speed jet assembly (2) .43
Rivet plug (2) .03
Rivet plug (3) .03
Idle port rivet plug (2) .03
Pump discharge passage plug and gasket assy. .15
Nozzle passage plug (2) .03
Choke lever and screw assembly: .28
Choke piston lever, link and shaft assembly .. .72
Cam trip lever _____ .15
Strainer net and gasket assembly .43
Pump discharge check needle .22
*Needle seat gasket .07
*Pump discharge passage plug gasket .07
*Bowl strainer nut gasket .07
*Metering rod jet gasket (2) .07
Float and lever assembly. 1.77
Float lever pin .07
—Needle and seat assembly (Sup. by 25-162S)_-..
--Needle and seat assembly 1.13
Bowl cover strainer... _____ .15
Pump strainer .15
Idle adjustment screw (2) .43
Choke valve attaching screw (2) 2 for .07
Pump jet and housing assy. (Sup. by 48-158S) .
Pump jet and housing assembly 1.07
Pump operating lever and countershaft assy. . .72
Idle adjustment screw lock spring _(2) .07
Connector rod spring .07
Intake needle-spring (Sup. by 61-380)
Metering rod spring .15
Fast idle cam spring .15
Plunger spring .... .15
Pump spring (lower) .15
—Vacuum piston spring .07
—Pump spring (upper) .15
—Intake needle spring _____ .07
Coil housing retainer _____ (3) .07
Pump spring retainer-___ .07
Connector rod spring retainer .07
Throttle shaft retaining ring (Install with prongs
extending outward) .07
64-120S —Pump plunger, rod, spring and retainer assembly 2.05
75-622 —Metering rod—Standard—.0645"-.0645" to
.0545"-.042" (2) .43Part No. PART NAME List Price
Flange stud lock washer (4) .01
Choke lever clamp screw .07
Pump retainer screw . .07
Throttle valve attaching screw (4) 2 for .07
Throttle shaft dog screw .07
Fast idle adjustment screw .07
Throttle lever adjustment screw .07
Coil housing attaching screw. (3) .07
Fast idle cam attaching screw .15
Body flange attaching screw and washer
assembly (4) .07
I01-152S Air horn attaching screw and washer assy.. (4) .07
I01-155S Pump jet attaching screw and washer assy (2) .07
101-160S Bowl cover attaching screw and washer
assembly (6) .07
101-161S Dust cover attaching screw and washer
assembly (2) .07
101-236 Metering rod arm clamp screw .07
105A-10 Choke lever clamp nut .07
105A-II Flange stud nut (4) .G7
Ill-51S —Pump and metering rod arm assembly .28
114-45 Throttle lever dog__..._.__._._.___-..._._.__._..__ _.. .08
115-70 Fast idle connector rod .22
115-77 Throttle connector rod .35
117-28 Pump link ._ .07
117-83 Vacuum piston link_ .15
118-39 Dust cover ___ 35
I20-125S Metering rod jet and gasket assembly (2) .43
121-78 Coil housing gasket .07
121-79 Body flange gasket .15
121-80 Air horn gasket .15
121-81 Bowl cover gasket .15
122-81 Pump discharge check plug _-___ . .28
122-85S Intake disk check assembly ________ .35
136-37 Connector rod washer .03
136-38 Throttle shaft dog washer .03
136-129 Choke shaft wesher____ (2) .03
146-17IS --Bowl cover assembly__ __ 4.97
150-62 Pistcn pin .03
150-150 —Intake needle pin (Sup. by 150-151)
150-151 —Intake needle pin __. .08
I50A-10 Pin spring (3) .01
160-35 , Choke piston ._ .-. .. 28
I60-67S Vacuum piston and pin assembly._._ .43
170P-62S —Thermostatic housing and coil assembly____. 2.13
I81-144S Fast idle cam assembly .43
186-15 Climatic control baffle plate .15
196-15 Pump plunger guide .22
t685S can be changed to 685SA by using 25-1625 and resetting float level
to I/16 inch (TI09-197).
*Gaskets so marked must be soaked in 90 proof denatured alcohol for 15 minutes,
installed on part and let dry before using. —Parts so marked are new and
listed for the first time.
NOTE: Small figures in parentheses preceding list price indicate number of
pieces used on one carbureter. Where no figure is shown, only one is used.
|
