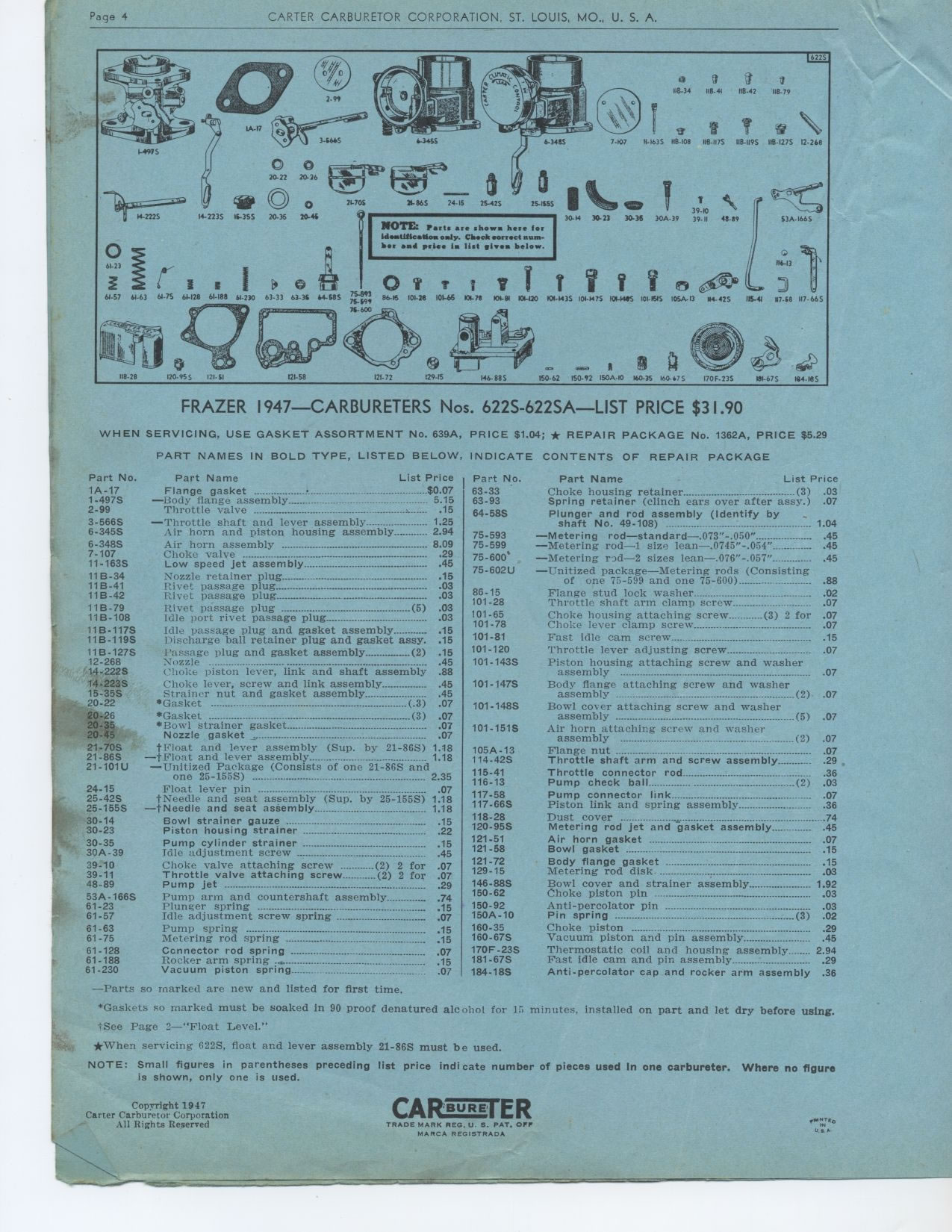

Page 4 CARTER CARBURETOR CORPORATION, ST. LOUIS, MO., U. S.
A.
FRAZER 1947—CARBURETERS Nos. 622S-622SA—LIST PRICE $31.90
MOTU !arts are show. here for identifloatlon only. Chas* earract number
and ostoe in list gives below.
WHEN SERVICING. USE GASKET ASSORTMENT No. 639A, PART NAMES IN BOLD TYPE,
LISTED BELOW,
Part No. Part Name List Price
1A-17 Flange gasket r $0 07
1-497S —Body flange assembly - 5 15
2-99 Throttle valve 15
3-566S —Throttle shaft and lever assembly 1 25
6-345S Air horn and piston housing assembly 2 94
6-348S Air horn assembly 8 09
7-107 Choke valve ° ................ .29
11-163S Low speed jet assembly 45
11 B-34 Nozzle retainer plug 15
11B-41 Rivet passage plug 03
11B-42 Rivet passage plug 03
11B-79 Rivet passage plug (5) 03
11B-108 Idle port rivet passage plug 03
11B-117S Idle passage plug and gasket assembly 15
11B-119S Discharge ball retainer plug and gasket assy 15
11B-127S Passage plug and gasket assembly (2) 15
12-268 Nozzle ....-----°° ...................... .45
14-222S Choke piston lever, link and shaft assembly 88
14-223S Choke lever, screw and link assembly 45
15-35S Strainer nut and gasket assembly 45
20-22 *Gasket °... °. (.3) 07
20-26 *Gasket °° .....................° ° °--°--
(3) 07
20-35 *Bowl strainer gasket 07
20-45 Nozzle gasket 07
21-70S tFloat and lever assembly (Sup. by 21-86S) 1.18
21-86S —f Float and lever assembly __ 1 18
21-101U —Unitized Package (Consists of one 21-86S and
one 25-155S) 2 35
24-15 Float lever pin 07
25-42S tNeedle and seat assembly (Sup. by 25-155S) 1 18
25-155S --(Needle and seat assembly 1 18
30-14 Bowl strainer gauze 15
30-23 Piston housing strainer 22
30-35 Pump cylinder strainer 15
30A-39 Idle adjustment screw 45
39-10 Choke valve attaching screw - (2) 2 for 07
39-11 Throttle valve attaching screw (2) 2 for 07
48-89 Pump jet ...... °° 29
53A-166S Pump arm and countershaft assembly 74
61-23 Plunger spring 15
61-57 Idle adjustment screw spring 07
61-63 Pump spring ° ....---°---° .. .15
61 -75 Metering rod spring 15
61-128 Connector rod spring 07
61-188 Rocker arm spring 15
61-230 Vacuum piston spring 07
PRICE $1.04; * REPAIR PACKAGE No. 1362A, PRICE $5.29 INDICATE CONTENTS OF REPAIR
PACKAGE
Part Name List Price
Choke housing retainer (3) .03
Spring retainer (clinch ears over after assy.) .07 Plunger and rod assembly
(Identify by
shaft No. 49-108) 1.04
— Metering rod—standard—.073"-.050" 45
—Metering rod—1 size lean—.0745"-.054" 45
—Metering rod—2 sizes lean—.076"-.057" 45
— Unitized package—Metering rods (Consisting
of one 75-599 and one 75-600) 88
86-15 Flange stud lock washer 02
101-28 Throttle shaft arm clamp screw 07
101-65 Choke housing attaching screw (3) 2 for 07
101-78 Choke lever clamp screw 07
101-81 Fast idle cam screw 15
101-120 Throttle lever adjusting screw 07
101-143S Piston housing attaching screw and washer
assembly ---° .-. .07
101-147S Body flange attaching screw and washer
assembly °--° (2) .07
101-148S Bowl cover attaching screw and washer
assembly ..................... . (5) 07
101-151S Air horn attaching screw and washer
assembly ---------------------------... (2) 07
Flange nut .....................----- ................... .07
Throttle shaft arm and screw assembly 29
115-41 Throttle connector rod 36
116-13 Pump check ball (2) 03
117-58 Pump connector link 07
117-66S Piston link and spring assembly 36
118-28 Dust cover -------------° .74
120-95S Metering rod jet and gasket assembly 45
121-51 Air horn gasket 07
121-58 Bowl gasket -------------------- .15
121-72 Body flange gasket 15
129-15 Metering rod disk 03
146-88S Bowl cover and strainer assembly 1 92
150-62 Choke piston pin 03
150-92 Anti-percolator pin 03
150A-10 Pin spring -- --- ......................-(3) .02
160-35 Choke piston
160-67S Vacuum piston and pin assembly 45
170E-23S Thermostatic coil and housing assembly 2 94
181-67S Fast idle cam and pin assembly 29
184-18S Anti-percolator cap and rocker arm assembly 36
Part No. 63-33 63-93 64-58S
75-593 75-599 75-600° 75-602U
105A-13 114-42S
—Parts so marked are new and listed for first time.
*Gaskets so marked must be soaked in 90 proof denatured alcohol for 15 minutes,
installed on part and let dry before using. tSee Page 2—"Float Level."
*When servicing 622S, float and lever assembly 21-86S must be used.
NOTE: Small figures in parentheses preceding list price indicate number of
pieces used In one carburetor. Where no figure is shown, only one is used.
Copyright 1947
|
