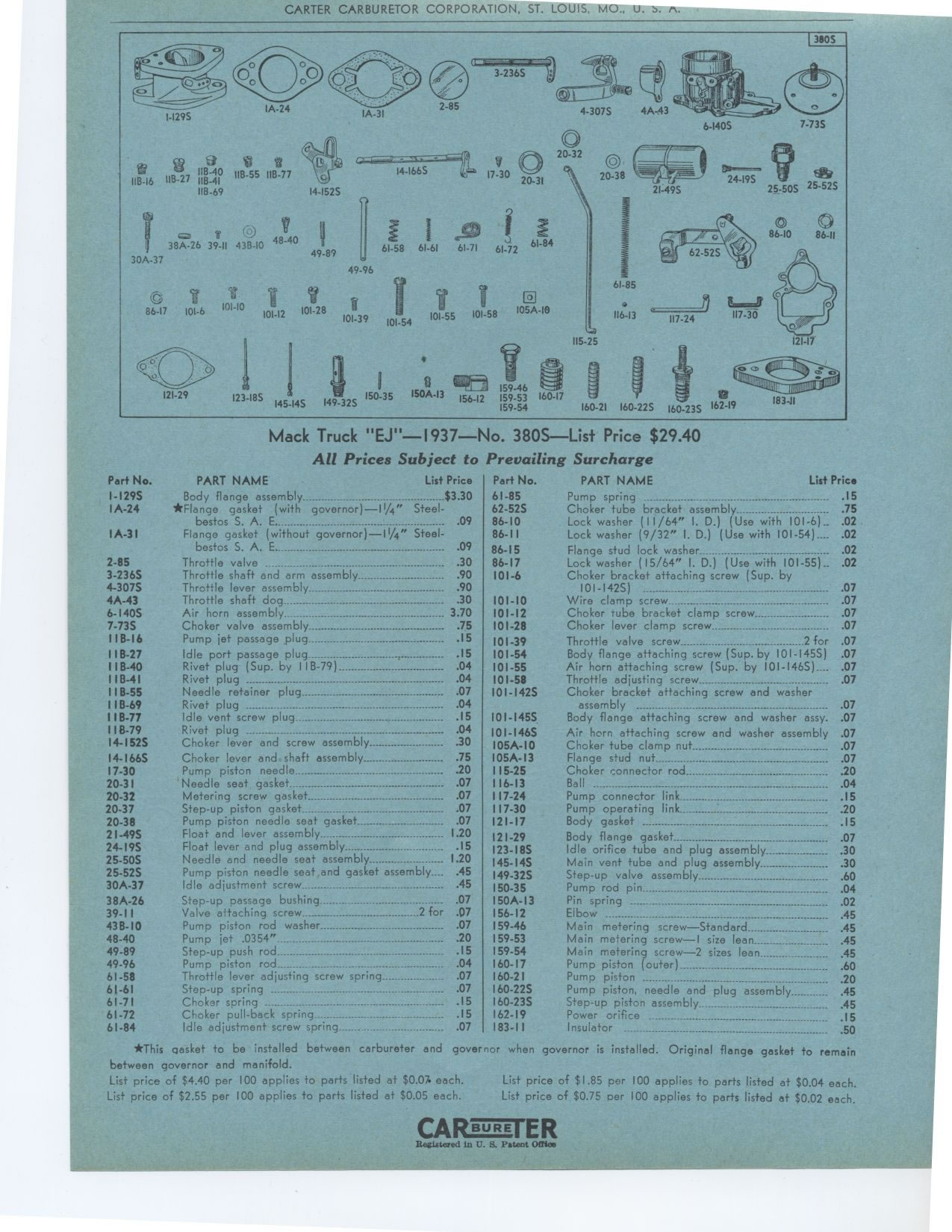

I-1295 Body flange assembly $3 30
IA-24 *Flange gasket (with governor)—1I/4" Steel
bestos S. A. E .09
IA-3I Flange gasket (without governor)—11/4" Steel
bestos S. A. E. .09
2-85 Throttle valve 30
3-236S Throttle shaft and arm assembly-_ 90
4-307S Throttle lever assembly 90
4A-43 Throttle shaft dog 30
6-140S Air horn assembly 3 70
7-73S Choker valve assembly 75
IIB-16 Pump jet passage .plug 15
IIB-27 Idle port passage plug 15
IIB-40 Rivet plug (Sup. by IIB-79) 04
116-41 Rivet plug . 04
B-55 Needle retainer plug 07
IIB-69 Rivet plug 04
IIB-77 Idle vent screw plug 15
IIB-79 Rivet plug .... .04
14-I52S Choker lever and screw assembly 30
Choker lever and shaft assembly 75
Pump piston needle 20
Needle seat gasket 07
Metering screw gasket 07
Step-up piston gasket 07
Pump piston needle seat gasket 07
Float and lever assembly 1 20
Float lever and plug assembly 15
Needle and needle seat assembly 1 20
Pump piston needle seat and gasket assembly- -. .45
Idle adjustment screw 45
38A-26 Step-up passage bushing 07
39-11 Valve attaching screw 2 for .07
43B-10 Pump piston rod washer 07
48-40 Pump jet .0354" 20
49-89 Step-up push rod .15
49-96 Pump piston rod .04
61-58 Throttle lever adjusting screw spring 07
61-61 Step-up spring 07
61-71 Choker spring .15
61-72 Choker pull-back spring.__ . 15
61-84 Idle adjustment screw spring 07
Part No. PART NAME List Price
Pump spring .15
Choker tube bracket assembly 75
Lock washer (1 1 /64" I. D.) (Use with I01-6) . .02
Lock washer (9/32" I. D.) (Use with 101-54) 02
Flange stud lock washer 02
Lock washer (15/64" I. D.) (Use with 101-55) 02
Choker bracket attaching screw (Sup. by
101-142S) .07
Wire clamp screw 07
Choker tube bracket clamp screw 07
Choker lever clamp screw 07
Throttle valve screw 2 for .07
Body flange attaching screw (Sup. by 101-1455) .07 Air horn attaching screw
(Sup. by 101-146S)---. .07
Throttle adjusting screw 07
Choker bracket attaching screw and washer
assembly .07
Body flange attaching screw and washer assy 07
Air horn attaching screw and washer assembly 07
Choker tube clamp nut 07
Flange stud nut .07
Choker connector rod 20
Ball . .04
Pump connector link 15
Pump operating link .20
Body gasket .15
Body flange gasket .07
Idle orifice tube and plug assembly 30
Main vent tube and plug assembly 30
Step-up valve assembly 60
Pump rod pin .04
Pin spring 02
Elbow 45
Main metering screw—Standard 45
Main metering screw—I size lean 45
Main metering screw—2 sizes lean 45
Pump piston (outer) .60
Pump piston .20
Pump piston, needle and plug assembly 45
Step-up piston assembly _ 45
Power orifice 15
Insulator .50
14- 166S 17-30 20-31
20-32 20-37
20-38 2I-49S 24-19S 25-50S 25-52S 30A-37
61-85 62-52S 86-10 86-II
86- 15 86-17 101-6
101-10 101-12 101-28
101-39 101-54 101-55 101-58 I01-142S
I0I-1455 101-1465 105A-10 I05A-13 115-25
116-13 117-24 117-30 121-17
121-29 123-18S I45-14S I49-32S 150-35 150A-13 156-12 159-46 159-53 159-54
160-17 160-21 I60-22S 160-23S 162-19 183-II
*This casket to be installed between carbureter and governor when governor
is installed. Original flange gasket to remain
between governor and manifold.
|
