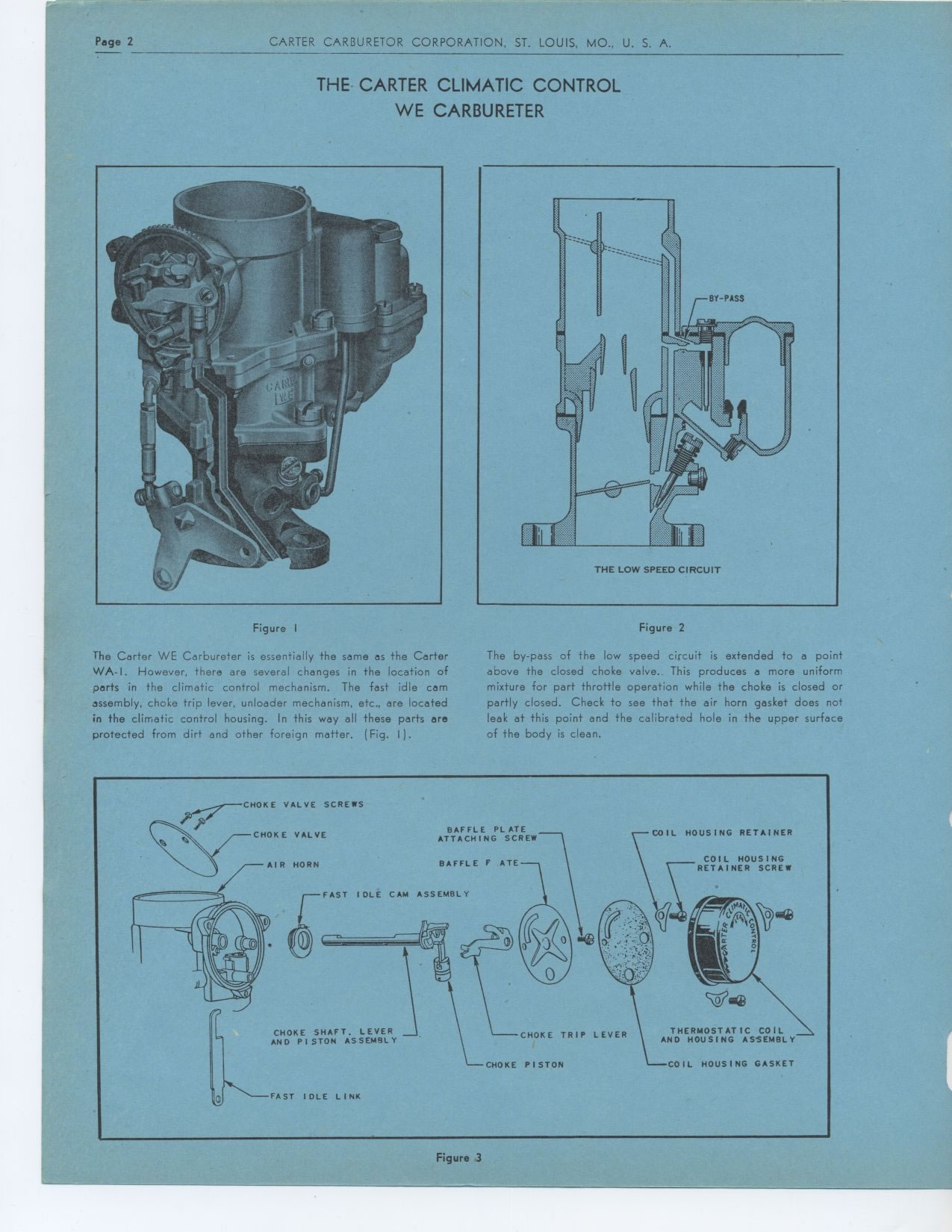

Page 2
CARTER CARBURETOR CORPORATION, ST. LOUIS, MO., U. S. A.
THE CARTER CLIMATIC CONTROL
WE CARBURETER
Figure I
THE LOW SPEED CIRCUIT
Figure 2
The Carter WE Carbureter is essentially the same as the Carter WA-I. However,
there are several changes in the location of parts in the climatic control
mechanism. The fast idle cam assembly, choke trip lever, unloader mechanism,
etc., are located in the climatic control housing. In this way all these
parts are protected from dirt and other foreign matter. (Fig. I).
The by-pass of the low speed circuit is extended to a point above the closed
choke valve. This produces a more uniform mixture for part throttle operation
while the choke is closed or partly closed. Check to see that the air horn
gasket does not leak at this point and the calibrated hole in the upper surface
of the body is clean.
COIL HOUSING RETAINER
CHOKE VALVE SCREWS CHOKE VALVE AIR HORN
BAFFLE PLATE
ATTACHING SCREW
BAFFLE F ATE
COIL HOUSING RETAINER SCREW
FAST IDLE LINK
Figure 3
|
