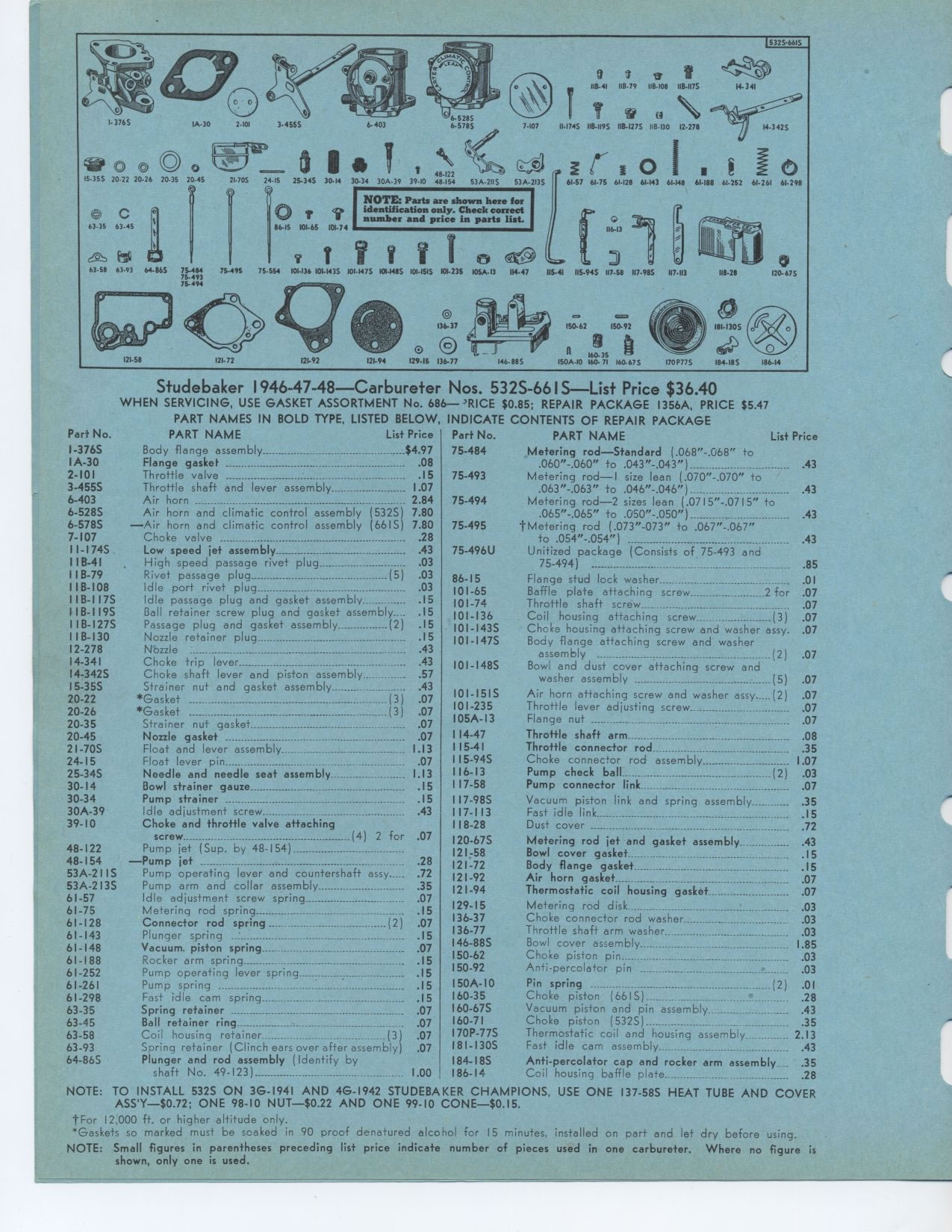

NOTE: Parts are shown here for identification only. Check correct
number and price in parts list.
Studebaker 1946-47-48—Carbureter Nos. 532S-66I S—List Price
$36.40
WHEN SERVICING, USE GASKET ASSORTMENT No. 686—'RICE $0.85; REPAIR PACKAGE
1356A, PRICE $5.47
PART NAMES IN BOLD TYPE, LISTED BELOW, INDICATE CONTENTS OF REPAIR PACKAGE
Part No. PART NAME List Price Part No. PART NAME List Price
1-376S Body flange assembly $4.97
IA-30 Flange gasket 08
2-101 Throttle valve ...-° 15
3-455S Throttle shaft and lever assembly 1 07
6-403 Air horn 2 84
6-528S Air horn and climatic control assembly (532S) 7 80
6-578S —Air horn and climatic control assembly (661S) 7 80
7-107 Choke valve 28
II-174S Low speed jet assembly 43
IIB-41 High speed passage rivet plug 03
IIB-79 Rivet passage plug (5) 03
IIB-108 Idle port rivet plug 03
1 I B-I 17S Idle passage plug and gasket assembly 15
IIB-1195 Ball retainer screw plug and gasket assembly- 15
IIB-1275 Passage plug and gasket assembly (2) 15
IIB-130 Nozzle retainer plug 15
12-278 Nozzle 43
14-341 Choke trip lever 43
14-3425 Choke shaft lever and piston assembly 57
I5-355 Strainer nut and gasket assembly - .43
20-22 *Gasket (3) 07
20-26 *Gasket (3) 07
20-35 Strainer nut gasket-_ 07
20-45 Nozzle gasket 07
21-70S Float and lever assembly 1 13
24-15 Float lever pin 07
25-34S Needle and needle seat assembly 1 13
30-14 Bowl strainer gauze 15
30-34 Pump strainer 15
30A-39 Idle adjustment screw 43
39-10 Choke and throttle valve attaching
screw (4) 2 for 07
48-122 Pump jet (Sup. by 48-154)
48-154 —Pump jet 28
53A-21IS Pump operating lever and countershaft assy -.- .72
53A-2135 Pump arm and collar assembly 35
61-57 Idle adjustment screw spring 07
61-75 Metering rod spring 15
61-128 Connector rod spring (2) 07
61-143 Plunger spring .15
61-148 Vacuum. piston spring 07
61-188 Rocker arm spring 15
61-252 Pump operating lever spring 15
61-261 Pump spring ........................................... -
15
61-298 Fast idle cam spring ..... 15
63-35 Spring retainer -07
63-45 Ball retainer ring -_ 07
63-58 Coil housing retainer (3) .07
63-93 Spring retainer (Clinch ears over after assembly) .07
64-86S Plunger and rod assembly (Identify by
shaft No. 49-123) --- 1.0075-484 Metering rod—Standard (.068"-.068" to
.060"-.060" to .043"-.043") 43
75-493 Metering rod—I size lean (.070"-.070" to
.063"-.063" to .046"-.046") 43
75-494 Metering rod—2 sizes lean (.0715"-.0715" to
.065"-.065" to .050"-.050") 43
75-495 tMetering rod (.073"-073" to .067"-.067"
to .054"-.054") 43
75-496U Unitized package (Consists of 75-493 and
75-494) 85
86-15 Flange stud lock washer 01
101-65 Baffle plate attaching screw 2 for 07
101-74 Throttle shaft screw 07
101-136 Coil housing attaching screw (3) 07
101-1435 Choke housing attaching screw and washer assy 07
101-1475 Body flange attaching screw and washer
assembly (2) 07
I01-1485 Bowl and dust cover attaching screw and
washer assembly (5) 07
101-1515 Air horn attaching screw and washer assy..-.- (2) 07
101-235 Throttle lever adjusting screw 07
105A-13 Flange nut .07
114-47 Throttle shaft arm 08
115-41 Throttle connector rod 35
115-94S Choke connector rod assembly 1 07
116-13 Pump check ball (2) 03
117-58 Pump connector link 07
I17-98S Vacuum piston link and spring assembly ........ .35
117-113 Fast idle link - .15
118-28 Dust cover .72
120-67S Metering rod jet and gasket assembly 43
121-58 Bowl cover gasket 15
121-72 Body flange gasket. .15
121-92 Air horn gasket 07
121-94 Thermostatic coil housing gasket 07
129-15 Metering rod disk - 03
136-37 Choke connector rod washer 03
136-77 Throttle shaft arm washer 03
146-88S Bowl cover assembly 1 85
150-62 Choke piston pin .03
150-92 Anti-percolator pin .-..__.-...-.- 03
150A-10 Pin spring ............-(2) 01
160-35 Choke piston (6615) 28
160-67S Vacuum piston and pin assembly 43
160-71 Choke piston (532S) _ .35
170P-77S Thermostatic coil and housing assembly 2 13
181-1305 Fast idle cam assembly 43
184-18S Anti-percolator cap and rocker arm assembly 35
186-14 Coil housing baffle plate 28
NOTE: TO INSTALL 532S ON 3G-1941 AND 4G-1942 STUDEBAKER CHAMPIONS, USE ONE
137-58S HEAT TUBE AND COVER ASS'Y—$0.72; ONE 98-10 NUT—$0.22 AND
ONE 99-la CONE—$0.15.
'For 12,000 ft. or higher altitude only.
*Gaskets so marked must be soaked in 90 proof denatured alcohol for 15 minutes,
installed on part and let dry before using. NOTE: Small figures in parentheses
preceding list price indicate number of pieces used in one carburetor. Where
no figure is shown, only one is used.
|
