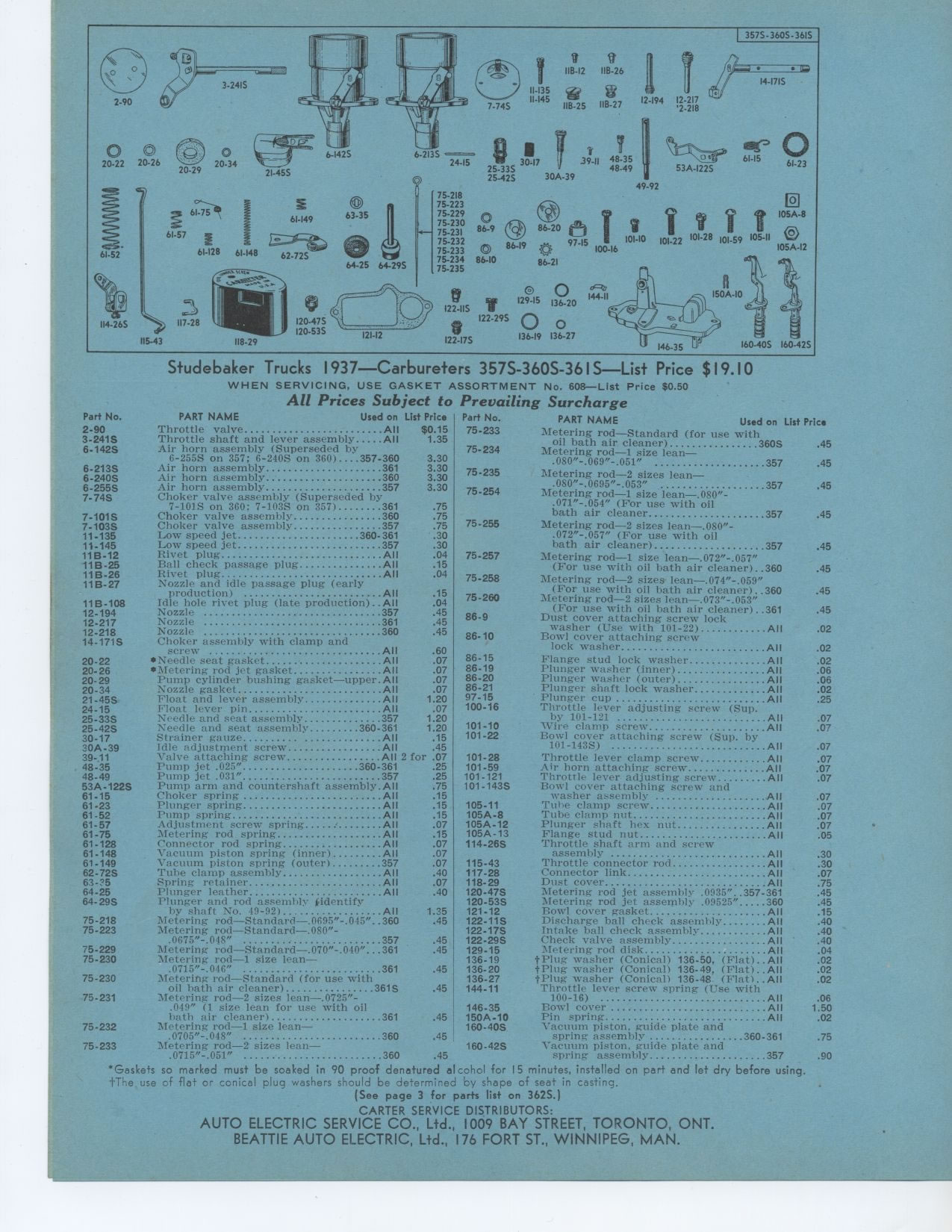

Studebaker Trucks 1937 —Carbureters 357S-360S-361S
WHEN SERVICING, USE GASKET ASSORTMENT No. 608—List Price
$0.50
All Prices Subject to Prevailing Surcharge
Part No.
*Gaskets +The use
PART NAME Used on
Throttle valve All
Throttle shaft and lever assembly All
Air horn assembly (Superseded by
6-255S on 357; 6-240S on 360)....357-360
Air horn assembly 361
Air horn assembly 360
Air horn assembly 357
Choker valve assembly (Superseded by
7-101S on 360; 7-103S on 357) 361
Choker valve assembly 360
Choker valve assembly 357
Low speed jet 360-361
Low speed jet 357
Rivet plug All
Ball check passage plug All
Rivet plug All
Nozzle and idle passage plug (early
production) All
Idle hole rivet plug (late production) All
Nozzle 357
Nozzle 361
Nozzle 360
Choker assembly with clamp and
screw All
*Needle seat gasket All
*Metering rod jet gasket All
Pump cylinder bushing gasket—upper.All
Nozzle gasket All
Float and lever assembly All
Float lever pin All
Needle and seat assembly 357
Needle and seat assembly 360-361
Strainer gauze All
Idle adjustment screw All .45
Valve attaching screw All 2 for .07
Pump jet .025 360-361
Pump jet .031" 357
Pump arm and countershaft assembly.All
Choker spring All
Plunger spring All
Pump spring All
Adjustment screw spring : All
Metering rod spring All
Connector rod spring All
Vacuum piston spring (inner) All
Vacuum piston spring (outer) 357
Tube clamp assembly All
Spring retainer All
Plunger leather All
Plunger and rod assembly (identify
by shaft No. 49-92) All
Metering rod—Standard—.0695"-.045" 360
Metering rod—Standard—.080"-
.0675"-.048" 357
Metering rod—Standard—.070"-.040" 361
Metering rod—1 size lean
.0715"-.046" 361
Metering rod—Standard (for use with
oil bath air cleaner) 361S
Metering rod—2 sizes lean—.07255"-
.049" (1 size lean for use with oil
bath air cleaner) 361
Metering rod—1 size lean
.0705"-.048" 360
Metering rod—2 sizes lean
Metering rod—Standard (for use with
oil bath air cleaner) 360S
Metering rod—1 size lean
.080"-.069"-.051" 357
Metering rod—2 sizes lean
.080"-.0695"-.053" 357
Metering rod—1 size lean—.080"-.071"-.054" (For
use with oil
bath air cleaner 357
Metering rod—2 sizes lean—.080"-.072"-.057" (For
use with oil
bath air cleaner) 357
Metering rod—1 size lean—.072"-.057"
(For use with oil bath air cleaner) 360
Metering rod—2 sizes lean—.074"-.059"
(For use with oil bath air cleaner) 0 360
Metering rod—2 sizes lean—.073"-.053"
(For use with oil bath air cleaner) 361
Dust cover attaching screw lock
washer (Use with 101-22) All
Bowl cover attaching screw
lock washer All
Flange stud lock washer All
Plunger washer (inner) All
Plunger washer (outer) All
Plunger shaft lock washer All
Plunger cup All
Throttle lever adjusting screw (Sup.
by 101-121 : All
Wire clamp screw : All
Bowl cover attaching screw (Sup. by
101-1435) All
Throttle lever clamp screw All
Air horn attaching screw All
Throttle lever adjusting screw All
Bowl cover attaching screw and
washer assembly All
Tube clamp screw All
Tube clamp nut All
Plunger shaft hex nut All
Flange stud nut All
Throttle shaft arm and screw
assembly All
Throttle connector rod All
Connector link A l l
Dust cover All
Metering rod jet assembly .0935"..357-361
Metering rod jet assembly .09525" 360
Bowl cover gasket All
Discharge ball check assembly All
Intake ball check assembly All
Check valve assembly All
Metering rod disk All
tPlug washer (Conical) 136-50, (Flat) All
}Plug washer (Conical) 136-49, (Flat) All
-Plug washer (Conical) 136-48- (Flat) All
Throttle lever screw spring (Use with
100-16) All
146-35 Bowl cover All
.45 150A-10 Pin spring All
160-40S Vacuum piston, guide plate and
.45 spring assembly 360 361
Vacuum piston, guide plate and
.0715"-.051" 360 .45 spring assembly 357 .90
so marked must be soaked in 90 proof denatured alcohol for 15 minutes, installed
on part and let dry before using. of flat or conical plug washers should be
determined by shape of seat in casting. (See page 3 for parts list on 362S.)
|
