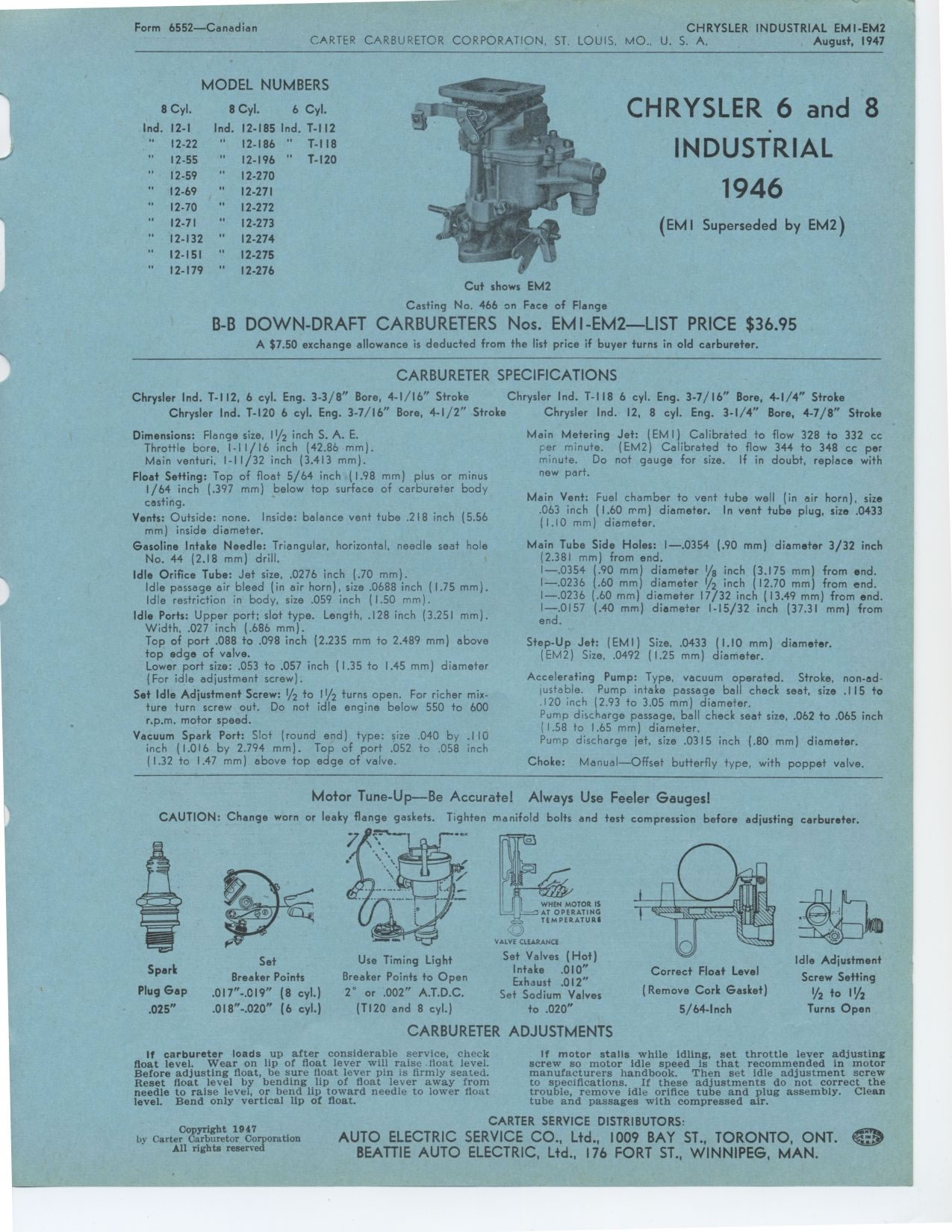

Form 6552—Canadian CHRYSLER INDUSTRIAL EMI-EM2
August, 1947
MODEL NUMBERS
8 Cyl. 8 Cyl. 6 Cyl.
Ind. 12-185 Ind. T-II2
" 12-186 " T-118
12-196 " T-120 12-270
12-271 12-272 12-273 12-274 12-275 12-276

CHRYSLER 6 and 8 INDUSTRIAL 1946

(EMI Superseded by EM2)
Ind. 12-I
" 12-22 I2-55 12-59 12-69 12-70 12-71 12-132 12-151 12-179
Cut shows EM2
Casting No. 466 on Face of Flange
B-B DOWN-DRAFT CARBURETERS Nos. EMI-EM2—LIST PRICE $36.95
A $7.50 exchange allowance is deducted from the list price if buyer turns in old carburetor.
CARBURETER SPECIFICATIONS
Chrysler Ind. T-II2, 6 cyl. Eng. 3-3/8" Bore, 4-1/16" Stroke Chrysler Ind. T-118 6 cyl. Eng. 3-7/16" Bore, 4-1/4" Stroke
Chrysler Ind. T-120 6 cyl. Eng. 3-7/16" Bore, 4-1/2" Stroke Chrysler Ind. 12, 8 cyl. Eng. 3-1/4" Bore, 4-7/8" Stroke
Dimensions: Flange size, 11/2 inch S. A. E. Throttle bore, I-11/16 inch (42.86 mm). Main venturi, I-11/32 inch (3.413 mm).
Float Setting: Top of float 5/64 inch (1.98 mm) plus or minus 1/64 inch (.397 mm) below top surface of carburetor body casting.
Vents: Outside: none. Inside: balance vent tube .218 inch (5.56 mm) inside diameter.
Gasoline Intake Needle: Triangular, horizontal, needle seat hole No. 44 (2.18 mm) drill.
Idle Orifice Tube: Jet size, .0276 inch (.70 mm).
Idle passage air bleed (in air horn), size .0688 inch (1.75 mm). Idle restriction in body, size .059 inch (1.50 mm).
Idle Ports: Upper port; slot type. Length, .128 inch (3.251 mm). Width, .027 inch (.686 mm).
Top of port .088 to .098 inch (2.235 mm to 2.489 mm) above top edge of valve.
Lower port size: .053 to .057 inch (1.35 to 1.45 mm) diameter (For idle adjustment screw).
Set Idle Adjustment Screw: 1/2 to 11/2 turns open. For richer mixture turn screw out. Do not idle engine below 550 to 600 r.p.m. motor speed.
Vacuum Spark Port: Slot (round end) type: size .040 by .110 inch (1.016 by 2.794 mm). Top of port .052 to .058 inch (1.32 to 1.47 mm) above top edge of valve.
Main Metering Jet: (EMI) Calibrated to flow 328 to 332 cc per minute. (EM2) Calibrated to flow 344 to 348 cc per minute. Do not gauge for size. If in doubt, replace with new part.

Main Vent: Fuel chamber to vent tube well (in air horn), size .063 inch (1.60 mm) diameter. In vent tube plug. size .0433 (1.10 mm) diameter.
Main Tube Side Holes: I—.0354 (.90 mm) diameter 3/32 inch (2.381 mm) from end.
1—.0354 (.90 mm) diameter 1/8 inch (3.175 mm) from end. 1—.0236 (.60 mm) diameter 1/2 inch (12.70 mm) from end. 1—.0236 (.60 mm) diameter 17/32 inch (13.49 mm) from end. 1—.0157 (.40 mm) diameter 1-15/32 inch (37.31 mm) from end.
Step-Up Jet: (EMI) Size, .0433 (1.10 mm) diameter. (EM2) Size, .0492 (1.25 mm) diameter.
Accelerating Pump: Type, vacuum operated. Stroke, non-adjustable. Pump intake passage ball check seat, size .115 to .120 inch (2.93 to 3.05 mm) diameter.
Pump discharge passage, ball check seat size, .062 to .065 inch (1.58 to 1.65 mm) diameter.
Pump discharge jet, size .0315 inch (.80 mm) diameter.
Choke: Manual—Offset butterfly type, with poppet valve.
Motor Tune-Up--Be Accurate! Always Use Feeler Gauges!
CAUTION: Change worn or leaky flange gaskets. Tighten manifold bolts and test compression before adjusting carburetor.
Spark Plug Gap .025"
Set Use Timing Light
Breaker Points Breaker Points to Open
.017"-.019" (8 cyl.) V or .002" A.T.D.C.
.018"-.020" (6 cyl.) (T120 and 8 cyl.)
VALVE CLEARANCE
Se+ Valves (Hot)
Intake .010"
Exhaust .012"
Set Sodium Valves
to .020"
WHEN MOTOR IS
-T AT OPERATING TEMPERATURE
Correct Float Level
(Remove Cork Gasket)
5/64-Inch
Idle Adjustment Screw Setting
1/2 +o II/2 Turns Open
CARBURETER ADJUSTMENTS
If carbureter loads up after considerable service, check float level. Wear on lip of float lever will raise float level. Before adjusting float, be sure float lever pin is firmly seated. Reset float level by bending lip of float lever away from needle to raise level, or bend lip toward needle to lower float level. Bend only vertical lip of float.
If motor stalls while idling, set throttle lever adjusting screw so motor idle speed is that recommended in motor manufacturers handbook. Then set idle adjustment screw to specifications. If these adjustments do not correct the trouble, remove idle orifice tube and plug assembly. Clean tube and passages with compressed air.
Copyright 1947
