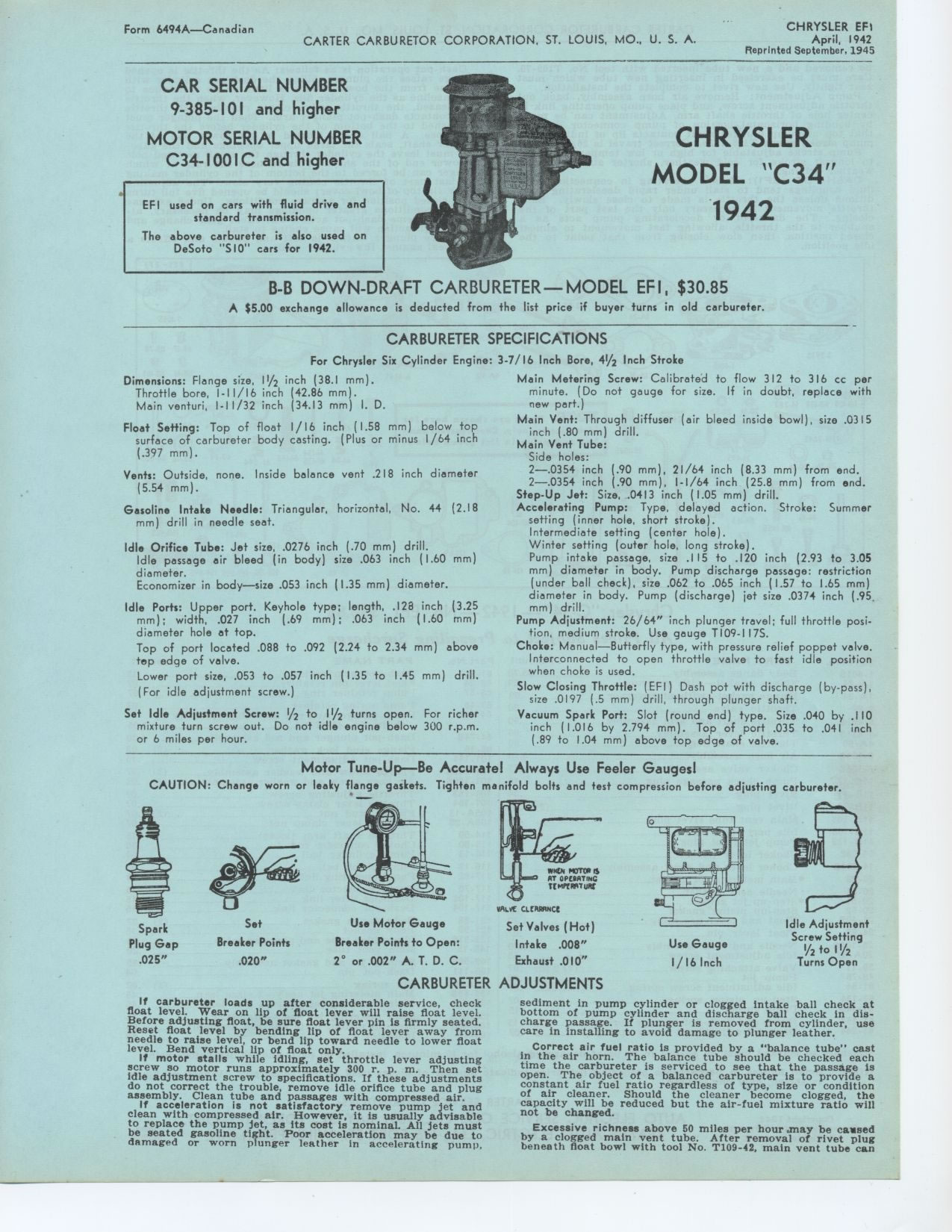

Form 6494A—Canadian
CHRYSLER EFI
April, 1942
Reprinted September, 1945
CHRYSLER
MODEL C34
1942
CAR SERIAL NUMBER 9-385-101 and higher
MOTOR SERIAL NUMBER
C34- 100 I C and higher
EFI used on cars with fluid drive and
standard transmission.
The above carbureter is also used on
DeSoto "S10" cars for 1942.
B-B DOWN-DRAFT CARBURETER—MODEL EFI, $30.85
A $5.00 exchange allowance is deducted from the list price if buyer turns in
old carbureter.
CARBURETER SPECIFICATIONS
For Chrysler Six Cylinder Engine: 3-7/16 Inch Bore, 41/2 Inch Stroke
Dimensions: Flange size, 11/2 inch (38.1 mm). Throttle bore, I-11/16 inch (42.86
mm).
Main venturi, I-11/32 inch (34.13 mm) I. D.
Float Setting: Top of float 1/16 inch (1.58 mm) below top surface of carbureter
body casting. (Plus or minus I/64 inch (.397 mm).
Vents: Outside, none. Inside balance vent .218 inch diameter (5.54 mm).
Gasoline Intake Needle: Triangular, horizontal, No. 44 (2.18 mm) drill in needle
seat.
Idle Orifice Tube: Jet size, .0276 inch (.70 mm) drill.
Idle passage air bleed (in body) size .063 inch (1.60 mm) diameter.
Economizer in body—size .053 inch (1.35 mm) diameter.
Idle Ports: Upper port. Keyhole type; length, .128 inch (3.25 mm); width, .027
inch (.69 mm); .063 inch (1.60 mm) diameter hole at top.
Top of port located .088 to .092 (2.24 to 2.34 mm) above tep edge of valve.
Lower port size, .053 to .057 inch (1.35 to 1.45 mm) drill.
(For idle adjustment screw.)
Set Idle Adjustment Screw: 1/2 to 11/2 turns open. For richer mixture turn
screw out. Do not idle engine below 300 r.p.m. or 6 miles per hour.
Main Metering Screw: Calibrated to flow 312 to 316 cc per minute. (Do not gauge
for size. If in doubt, replace with new part.)
Main Vent: Through diffuser (air bleed inside bowl), size .0315 inch (.80 mm)
drill.
Main Vent Tube:
Side holes:
2—.0354 inch (.90 mm), 21/64 inch (8.33 mm) from end. 2—.0354 inch
(.90 mm), I-1/64 inch (25.8 mm) from end. Step-Up Jet: Size, .0413 inch (1.05
mm) drill.
Accelerating Pump: Type, delayed action. Stroke: Summer setting (inner hole,
short stroke).
Intermediate setting (center hole).
Winter setting (outer hole, long stroke).
Pump intake passage, size .115 to .120 inch (2.93 to 3.05 mm) diameter in body.
Pump discharge passage: restriction (under ball check), size .062 to .065 inch
(1.57 to 1.65 mm) diameter in body. Pump (discharge) jet size .0374 inch (.95,
mm) drill.
Pump Adjustment: 26/64" inch plunger travel; full throttle position, medium
stroke. Use gauge T109-I 17S.
Choke: Manual—Butterfly type, with pressure relief poppet valve. Interconnected
to open throttle valve to fast idle position when choke is used.
Slow Closing Throttle: (EFI) Dash pot with discharge (by-pass), size .0197
(.5 mm) drill, through plunger shaft.
Vacuum Spark Port: Slot (round end) type. Size .040 by .110 inch (1.016 by
2.794 mm). Top of port .035 to .041 inch (.89 to 1.04 mm) above top edge of
valve.
Motor Tune-Up--Be Accurate! Always Use Feeler Gauges!
CAUTION: Change worn or leaky flange gaskets. Tighten manifold bolts and test
compression before adjusting carburetor.
Use Motor Gauge
Breaker Points to Open:
2° or .002" A. T. D. C.
Use Gauge 1/16 Inch
Spark Plug Gap .025"
Set
Breaker Points
.020"
VALVE CLCRRANCe
Set Valves (Hot) Intake .008" Exhaust .0I0"
Idle Adjustment
Screw Setting
1/2 to 11/2
Turns Open
CARBURETER ADJUSTMENTS
If carbureter loads up after considerable service, check float level. Wear
on lip of float lever will raise float level. Before adjusting float, be sure
float lever pin is firmly seated. Reset float level by bending lip of float
lever away from needle to raise level, or bend lip toward needle to lower float
level. Bend vertical lip of float only.
If motor stalls while idling, set throttle lever adjusting screw so motor runs
approximately 300 r. p. m. Then set idle adjustment screw to specifications.
If these adjustments do not correct the trouble, remove idle orifice tube and
plug assembly. Clean tube and passages with compressed air.
If acceleration is not satisfactory remove pump jet and clean with compressed
air. However, it is usually advisable to replace the pump jet, as its cost
is nominal. All jets must be seated gasoline tight. Poor acceleration may be
due to damaged or worn plunger leather in accelerating pump,sediment in pump
cylinder or clogged intake ball check at bottom of pump cylinder and discharge
ball check in discharge passage. If plunger is removed from cylinder, use care
in installing to avoid damage to plunger leather.
Correct air fuel ratio is provided by a "balance tube" cast in the
air horn. The balance tube should be checked each time the carbureter is serviced
to see that the passage is open. The object of a balanced carbureter is to
provide a constant air fuel ratio regardless of type, size or condition of
air cleaner. Should the cleaner become clogged, the capacity will be reduced
but the air-fuel mixture ratio will not be changed.
Excessive richness above 50 miles per hour .may be caused by a clogged main
vent tube. After removal of rivet plug beneath float bowl with tool No. T109-42,
main vent tube can
