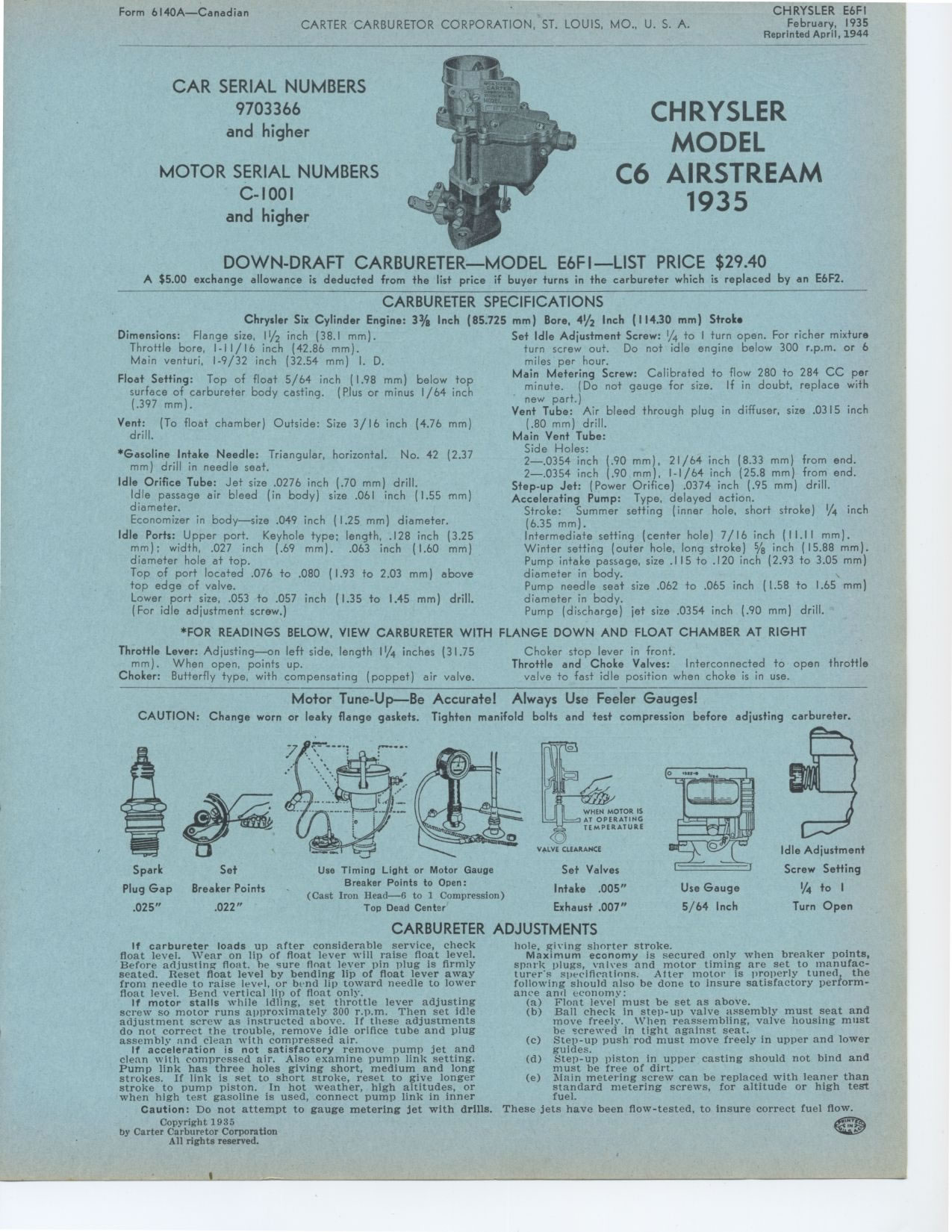

Form 6140A—Canadian
CHRYSLER EbFI
February, 1935
Reprinted April, 1944
CAR SERIAL NUMBERS
9703366
and higher
MOTOR SERIAL NUMBERS
C-1001
and higher
CHRYSLER
MODEL
C6 AIRSTREAM
1935
DOWN-DRAFT CARBURETER—MODEL E6FI—LIST PRICE $29.40
A $5.00 exchange allowance is deducted from the list price if buyer turns in
the carbureter which is replaced by an E6F2.
CARBURETER SPECIFICATIONS
Chrysler Six Cylinder Engine: 33/g Inch (85.725 mm) Bore, 41/2 Inch (114.30
mm) Stroke
Set Idle Adjustment Screw: i/4 to I turn open. For richer mixture turn screw
out. Do not idle engine below 300 r.p.m. or 6 miles per hour.
Main Metering Screw: Calibrated to flow 280 to 284 CC per minute. (Do not gauge
for size. If in doubt, replace with new part.)
Vent Tube: Air bleed through plug in diffuser, size .0315 inch (.80 mm) drill.
Main Vent Tube:
Side Holes:
2—.0354 inch (.90 mm), 21/64 inch (8.33 mm) from end. 2-.0354 inch (.90
mm), I-1/64 inch (25.8 mm) from end.
Step-up Jet: (Power Orifice) .0374 inch (.95 mm) drill.
Accelerating Pump: Type, delayed action.
Stroke: Summer setting (inner hole, short stroke) I/4 inch (6.35 mm).
Intermediate setting (center hole) 7/16 inch (11.11 mm). Winter setting (outer
hole, long stroke) % inch (15.88 mm). Pump intake passage, size .115 to .120
inch (2.93 to 3.05 mm) diameter in body.
Pump needle seat size .062 to .065 inch (1.58 to 1.65 mm) diameter in body.
Pump (discharge) jet size .0354 inch (.90 mm) drill.
FLANGE DOWN AND FLOAT CHAMBER AT RIGHT
Choker stop lever in front.
Throttle and Choke Valves: Interconnected to open throttle valve to fast idle
position when choke is in use.
Motor Tune-Up—Be Accurate! Always Use Feeler Gauges!
CAUTION: Change worn or leaky flange gaskets. Tighten manifold bolts and test
compression before adjusting carbureter.
CARBURETER ADJUSTMENTS
Dimensions: Flange size, 1i/2 inch (38.1 mm). Throttle bore, I-11/16 inch (42.86
mm). Main venturi, 1-9/32 inch (32.54 mm) I. D.
Float Setting: Top of float 5/64 inch (1.98 mm) below top surface of carbureter
body casting. (Plus or minus 1/64 inch (.397 mm).
Vent: (To float chamber) Outside: Size 3/16 inch (4.76 mm) drill.
*Gasoline Intake Needle: Triangular, horizontal. No. 42 (2.37 mm) drill in
needle seat.
Idle Orifice Tube: Jet size .0276 inch (.70 mm) drill.
Idle passage air bleed (in body) size .061 inch (1.55 mm) diameter.
Economizer in body—size .049 inch (1.25 mm) diameter.
Idle Ports: Upper port. Keyhole type; length, .128 inch (3.25 mm); width, .027
inch (.69 mm). .063 inch (1.60 mm) diameter hole at fop.
Top of port located .076 to .080 (1.93 to 2.03 mm) above top edge of valve.
Lower port size, .053 to .057 inch (1.35 to 1.45 mm) drill. (For idle adjustment
screw.)
*FOR READINGS BELOW, VIEW CARBURETER WITH
Throttle Lever: Adjusting—on left side, length II/4 inches (31.75 mm).
When open, points up. Choker: Butterfly type, with compensating (poppet) air
valve.
Spark Set
Plug Gap Breaker Points
.025" .022"
Use Timing Light or Motor Gauge
Breaker Points to Open:
(Cast Iron Head—6 to 1 Compression)
Top Dead Center
Set Valves Intake .005" Exhaust .007"
Use Gauge 5/64 Inch
Idle Adjustment
Screw Setting
1/4 to I
Turn Open
If carbureter loads up after considerable service, check float level. Wear
on lip of float lever will raise float level. Before adjusting float, he sure
float lever pin plug is firmly seated. Reset float level by bending lip of
float lever away from needle to raise level, or bend lip toward needle to lower
float level. Bend vertical lip of float only.
If motor stalls while idling, set throttle lever adjusting screw so motor runs
approximately 300 r.p.m. Then set idle adjustment screw as instructed above.
If these adjustments do not correct the trouble, remove idle orifice tube and
plug assembly and clean with compressed air.
If acceleration is not satisfactory remove pump jet and clean with compressed
air. Also examine pump link setting. Pump link has three holes giving short,
medium and long strokes. If link is set to short stroke, reset to give longer
stroke to pump piston. In hot weather, high altitudes, or when high test gasoline
is used, connect pump link in inner
Caution: Do not attempt to gauge metering jet with drills.
Copyright 1935
Maximum economy is secured only when breaker points, spark plugs, valves and
motor timing are set to manufacturer's specifications. Alter motor is properly
tuned, the following should also be done to insure satisfactory performance
and economy:
(a) Float level must be set as above.
(b) Ball check in step-up valve assembly must seat and move freely. When reassembling,
valve housing must be screwed in tight against seat.
(c) Step-up push rod must move freely in upper and lower guides.
(d) Step-up piston in upper casting should not bind and must be free of dirt.
(e) 1\lain metering screw can be replaced with leaner than standard metering
screws, for altitude or high test fuel.
These jets have been flow-tested, to insure correct fuel flow.
