Carburetors for old Dodge Trucks : CARTER VELOCITY GOVERNOR

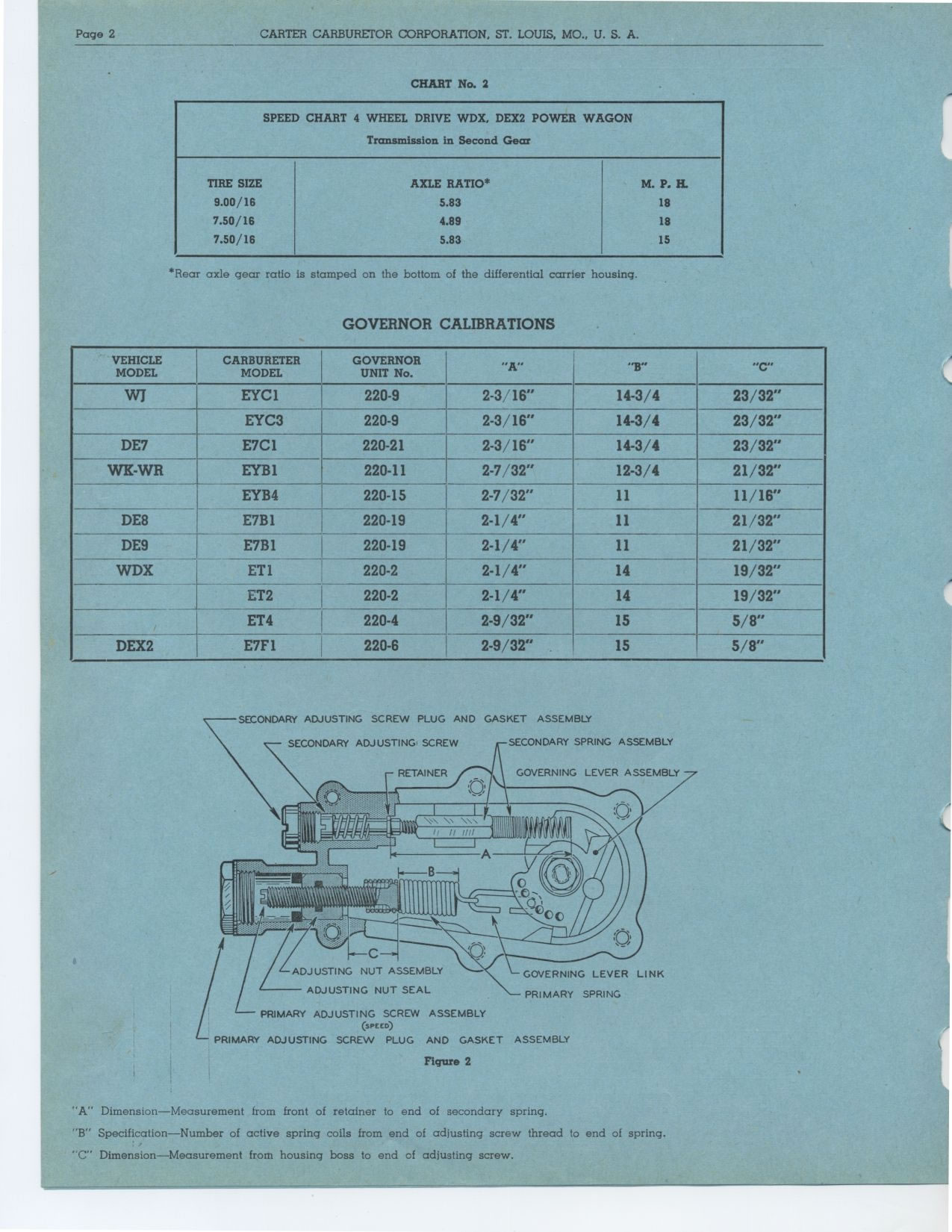

Page 2
CHART No. 2
SPEED CHART 4 WHEEL DRIVE WDX, DEX2 POWER WAGON
Transmission in Second Gear
TIRE SIZE AXLE RATIO* M. P. H.
9.00/ 16 5.83 18
7.50/16 4.89 18
7.50/ 16 5.83 15
*Rear axle gear ratio is stamped on the bottom of the differential carrier housing.
GOVERNOR CALIBRATIONS
VEHICLE CARBURETER GOVERNOR
MODEL MODEL UNIT No.
WJ EYC1 220-9 2-3/16" 14-3/4 23/32"
EYC3 220-9 2-3/16" 14-3/4 23/32"
DE7 E7C1 220-21 2-3/16" 14-3/4 23/32"
WK-WR EYB1 220-11 2-7/32" 12-3/4 21/32"
EYB4 220-15 2-7/32" 11 11/16"
DE8 E7B1 220-19 2-1/4" 11 21/32"
DE9 E7B1 220-19 2-1/4" 11 21/32"
WDX ET1 220-2 2-1/4" 14 19/32"
ET2 220-2 2-1/4" 14 19/32"
ET4 220-4 2-9/32" 15 5/8"
DEX2 E7F1 220-6 2-9/32" 15 5/8"
Figure 2
"A" Dimension—Measurement from front of retainer to end of secondary spring.
"B" Specification—Number of active spring coils from end of adjusting screw thread to end of spring.
"C" Dimension—Measurement from housing boss to end of adjusting screw.
SECONDARY ADJUSTING SCREW PLUG AND GASKET ASSEMBLY
SECONDARY ADJUSTING, SCREW
-If 11'111'
SECONDARY SPRING ASSEMBLY GOVERNING LEVER ASSEMBLY
Iili--
...
` - o0
C
ADJUSTING NUT ASSEMBLY ADJUSTING NUT SEAL
PRIMARY ADJUSTING SCREW ASSEMBLY (SPEED)
PRIMARY ADJUSTING SCREW PLUG AND GASKET ASSEMBLY
