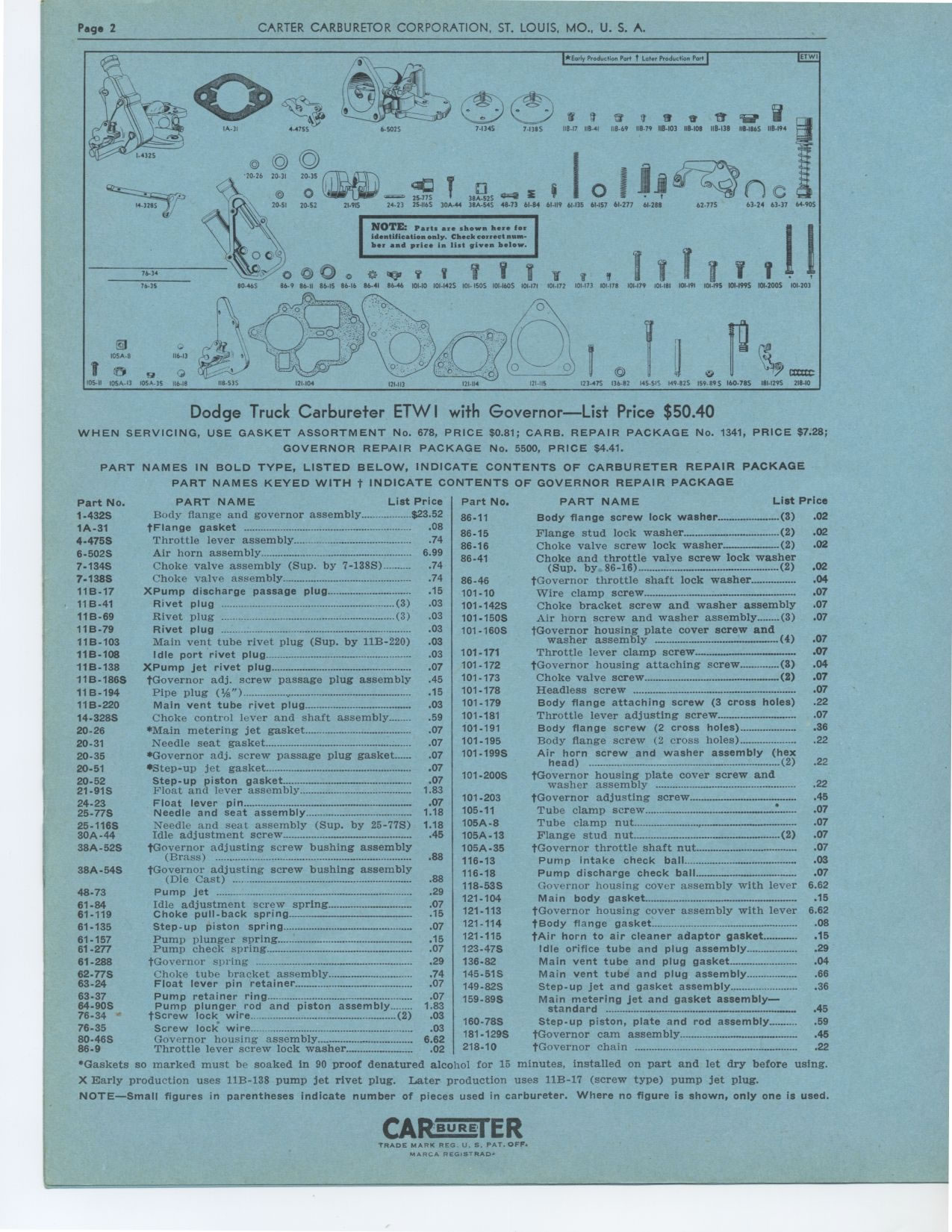

Dodge Truck Carbureter ETW I with Governor—List Price $50.40
WHEN SERVICING, USE GASKET ASSORTMENT No. 678, PRICE $0.81; GARB. REPAIR PACKAGE
No. 1341, PRICE $7.28;
GOVERNOR REPAIR PACKAGE No. 5500, PRICE $4.41.
PART NAMES IN BOLD TYPE, LISTED BELOW, INDICATE CONTENTS OF CARBURETER REPAIR
PACKAGE
PART NAMES KEYED WITH t INDICATE CONTENTS OF GOVERNOR REPAIR PACKAGE
I*Early Prod„ot".on Pad } Loter Production Port la=
1-432S Body flange and governor assembly $23.52
1A-31 tFlange gasket 08
4-475S Throttle lever assembly 74
6-502S Air horn assembly 6.99
7-134S Choke valve assembly (Sup. by 7-138S) 74
7-138S Choke valve assembly 74
11B-17 XPump discharge passage plug 15
11B-41 Rivet plug (3) .03
11B-69 Rivet plug (3) .03
11B-79 Rivet plug 03
11B-103 Main vent tube rivet plug (Sup. by 11B-220) .03
11B-108 Idle port rivet plug 03
11B-138 XPump jet rivet plug 07
11B-186S tGovernor adj. screw passage plug assembly .45
11B-194 Pipe plug (2y ") °°°.°° 15
11B-220 Main vent tube rivet plug 03
14-328S Choke control lever and shaft assembly 59
20-26 *Main metering jet gasket 07
20-31 Needle seat gasket 07
20-35 *Governor adj. screw passage plug gasket 07
20-51 *Step-up jet gasket 07
20-52 Step-up piston gasket 07
21-91S Float and lever assembly 1.83
24-23 Float lever pin 07
25-77S Needle and seat assembly 1.18
25-116S Needle and seat assembly (Sup. by 25-77S) 1.18
30A-44 Idle adjustment screw 45
38A-52S tGovernor adjusting screw bushing assembly
(Brass) 88
38A-54S tGovernor adjusting screw bushing assembly
(Die Cast) - - 88
48-73 Pump jet ---_-..-°_ 29
61-84 Idle adjustment screw spring 07
61-119 Choke pull-back spring 15
61-135 Step-up piston spring 07
61-157 Pump plunger spring 15
61-277 Pump check spring 07
61-288 tGovernor spring 29
62-77S Choke tube bracket assembly 74
63-24 Float lever pin retainer 07
63-37 Pump retainer ring 07
64-90S Pump plunger rod and piston assembly 1.83
76-34 - tScrew lock wire (2) .03
76-35 Screw lock wire 03
80-46S Governor housing assembly 6.62
86-9 Throttle lever screw lock washer 02
Part No. PART NAME List Price
86-11 Body flange screw lock washer (3)
86-15 Flange stud lock washer (2)
86-16 Choke valve screw lock washer (2)
86-41 Choke and throttle valve screw lock washer
(Sup. by 86-16) (2)
86-46 tGovernor throttle shaft lock washer
101-10 Wire clamp screw
101-142S Choke bracket screw and washer assembly
101-150S Air horn screw and washer assembly (3)
101-160S tGovernor housing plate cover screw and
washer assembly -(4)
101-171 Throttle lever clamp screw
101-172 tGovernor housing attaching screw (3)
101-173 Choke valve screw (2)
101-178 Headless screw
101-179 Body flange attaching screw (3 cross holes)
101-181 Throttle lever adjusting screw
101-191 Body flange screw (2 cross holes)
101-195 Body flange screw (2 cross holes)
101-199S Air horn screw and washer assembly (hex
head) (2) .22
101-200S tGovernor housing plate cover screw and
washer assembly 22
101-203 tGovernor adjusting screw 45
105-11 Tube clamp screw 07
105A-8 Tube clamp nut ° 07
105A-13 Flange stud nut (2) .07
105A-35 (Governor throttle shaft nut 07
116-13 Pump intake check ball 03
116-18 Pump discharge check ball 07
118-53S Governor housing cover assembly with lever 6.62
121-104 Main body gasket 15
121-113 tGovernor housing cover assembly with lever 6.62
121-114 tBody flange gasket 08
121-115 tAir horn to air cleaner adaptor gasket 15
123-47S Idle orifice tube and plug assembly 29
136-82 Main vent tube and plug gasket 04
145-51S Main vent tube and plug assembly 66
149-82S Step-up jet and gasket assembly 36
159.89S Main metering jet and gasket assembly
standard _ .45
160-78S Step-up piston, plate and rod assembly 59
181-129S tGovernor cam assembly 45
218-10 tGovernor chain 22
*Gaskets so marked must be soaked in 90 proof denatured alcohol for 15 minutes,
installed on part and let dry before using. X Early production uses 11B-138 pump
jet rivet plug. Later production uses 11B-17 (screw type) pump jet plug. NOTE—Small
figures in parentheses indicate number of pieces used in carbureter. Where no
figure is shown, only one is used.
