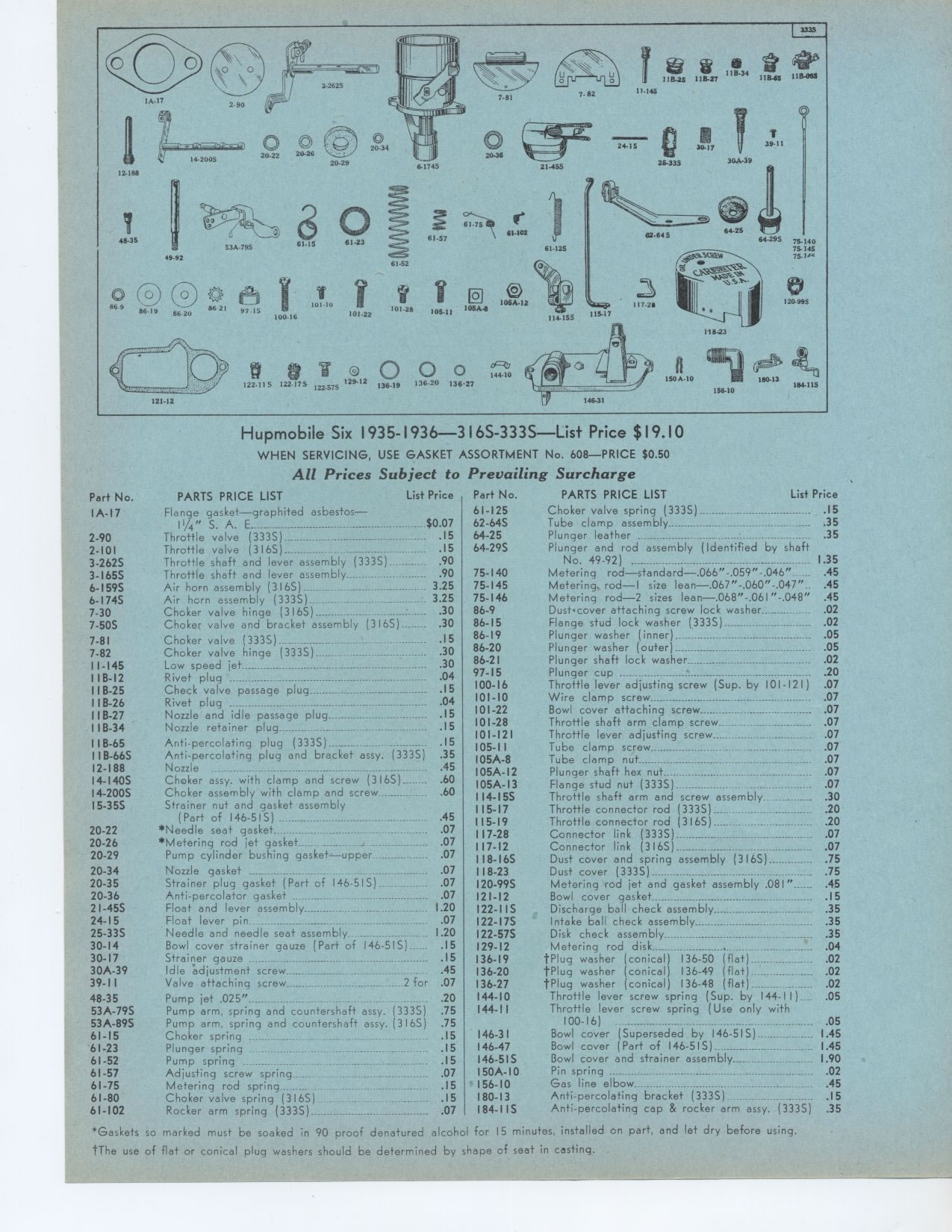

![Hupmobile 6 1935 D-518 & 1936 618-G](../fullimages/Hupmobile-004_f.jpg)
Hupmobile Six 1935 1936 3 16S 333S
—List Price $ 19.10
WHEN SERVICING, USE GASKET ASSORTMENT No. 608—PRICE $0.50
All Prices Subject to Prevailing Surcharge
List Price Part No. PARTS PRICE LIST
20-34 Nozzle gasket .07
20-35 Strainer plug gasket (Part of I46-51S) ___ .07
20-36 Anti-percolator gasket .07
2I-45S Float and lever assembly 1.20
24-15 Float lever pin 07
25-33S Needle and needle seat assembly . 1.20
30-14 Bowl cover strainer gauze (Part of 146-51S). . .15
30-17 Strainer gauze .15
30A-39 Idle adjustment screw .45
39-11 Valve attaching screw... 2 for .07
48-35 Pump jet .025" . .20
53A-79S Pump arm, spring and countershaft assy. (333S) .75
53A-89S Pump arm, spring and countershaft assy. (3165) .75
61-15 Choker spring ____ .__ .15
61-23 Plunger spring 15
61-52 Pump spring 15
61-57 Adjusting screw spring _______ .07
61-75 Metering rod spring .15
61-80 Choker valve spring ( 3 1 6 5 ) . ..15
61-102 Rocker arm _
spring (3335) . .07List Price
61-125 Choker valve spring (333S) .15
62-64S Tube clamp assembly .35
64-25 Plunger leather _ .35
64-29S Plunger and rod assembly (Identified by shaft
No. 49-92) 1.35
75-140 Metering rod—standard—.066"-.059"-.046" 45
75-145 Metering. rod—I size lean—.067"-.060"-.047".
.45
75-146 Metering rod—2 sizes lean—.068"-.061"-.048" .45
86-9 Dustecover attaching screw lock washer .02
86-15 Flange stud lock washer (333S) .02
86-19 Plunger washer (inner). .05
86-20 Plunger washer (outer) .05
86-21 Plunger shaft lock washer .02
97-15 Plunger cup .20
100-16 Throttle lever adjusting screw (Sup. by 101-121) .07
101-10 Wire clamp screw .07
101-22 Bowl cover attaching screw .07
101-28 Throttle shaft arm clamp screw .07
101-121 Throttle lever adjusting screw .07
105-11 Tube clamp screw .07
105A-8 Tube clamp nut .07
105A-12 Plunger shaft hex nut .07
105A-13 Flange stud nut (333S) . .. .07
1I4-15S Throttle shaft arm and screw assembly ____ .30
115-17 Throttle connector rod (333S)_____ .20
115-19 Throttle connector rod (316S)__ 20
117-28 Connector link (3335) ._. .07
117-12 Connector link (316S)_. .07
I18-16S Dust cover and spring assembly (316S) .75
118-23 Dust cover (333S) .75
120-99S Metering rod jet and gasket assembly .081 " - .45
121-12 Bowl cover gasket .15
122-IIS Discharge ball check assembly .35
122-17S Intake ball check assembly .35
122-57S Disk check assembly .35
129-12 Metering rod disk _____ . .04
136-19 tPlug washer (conical) 136-50 (flat) -.02
136-20 tPlug washer (conical) 136-49 (flat) .02
136-27 tPlug washer (conical) 136-48 (flat) . .02
144-10 Throttle lever screw spring (Sup. by 144-I1).-. .05
144-11 Throttle lever screw spring (Use only with
100-I6) .05
146-31 Bowl cover (Superseded by 146-51S) 1.45
146-47 Bowl cover (Part of 146-51S) 1.45
146-5IS Bowl cover and strainer assembly 1.90
150A-I0 Pin spring .02
156-10 Gas line elbow . .45
180-13 Anti-percolating bracket (333S) . .15
184-IIS Anti-percolating cap & rocker arm assy. (333S) .35
Flange gasket—graphited asbestos—11/4" S. A. E
Throttle valve (333S)
Throttle valve (316S) Throttle shaft and lever assembly (333S) -
shaft and lever assembly
Air horn assembly (3165) Air horn assembly (333S).
Choker valve hinge 3165
.
Choker valve and bracket assembly (316S)
Choker valve (333S)
Choker valve hinge (333S) Low speed jet
Rivet plug
Check valve passage plug
Rivet plug
Nozzle and idle passage plug
Nozzle retainer plug
.--. Anti-percolating plug (333S)
_
Anti-percolating plug and bracket assy. (333S) Nozzle
Choker assy. with clamp and screw (3165)___..
Choker assembly with clamp and screw Strainer nut and gasket assembly
(Part of I46-51S) ..--
*Needle seat gasket .
*Metering rod jet gasket -
Pump cylinder bushing gasket—upper -
$0.07 .15 .15 .90 .90 3.25 3.25 .30 .30
.15 .30 .30 .04 .15 .04 .15 .15
.15 .35 .45 .60 .60
.45 .07 .07 .07
PARTS PRICE LIST
*Gaskets so marked must be soaked in 90 proof denatured alcohol for 15 minutes,
installed on part, and let dry before using. tThe use of flat or conical
plug washers should be determined by shape of seat in casting.
|
