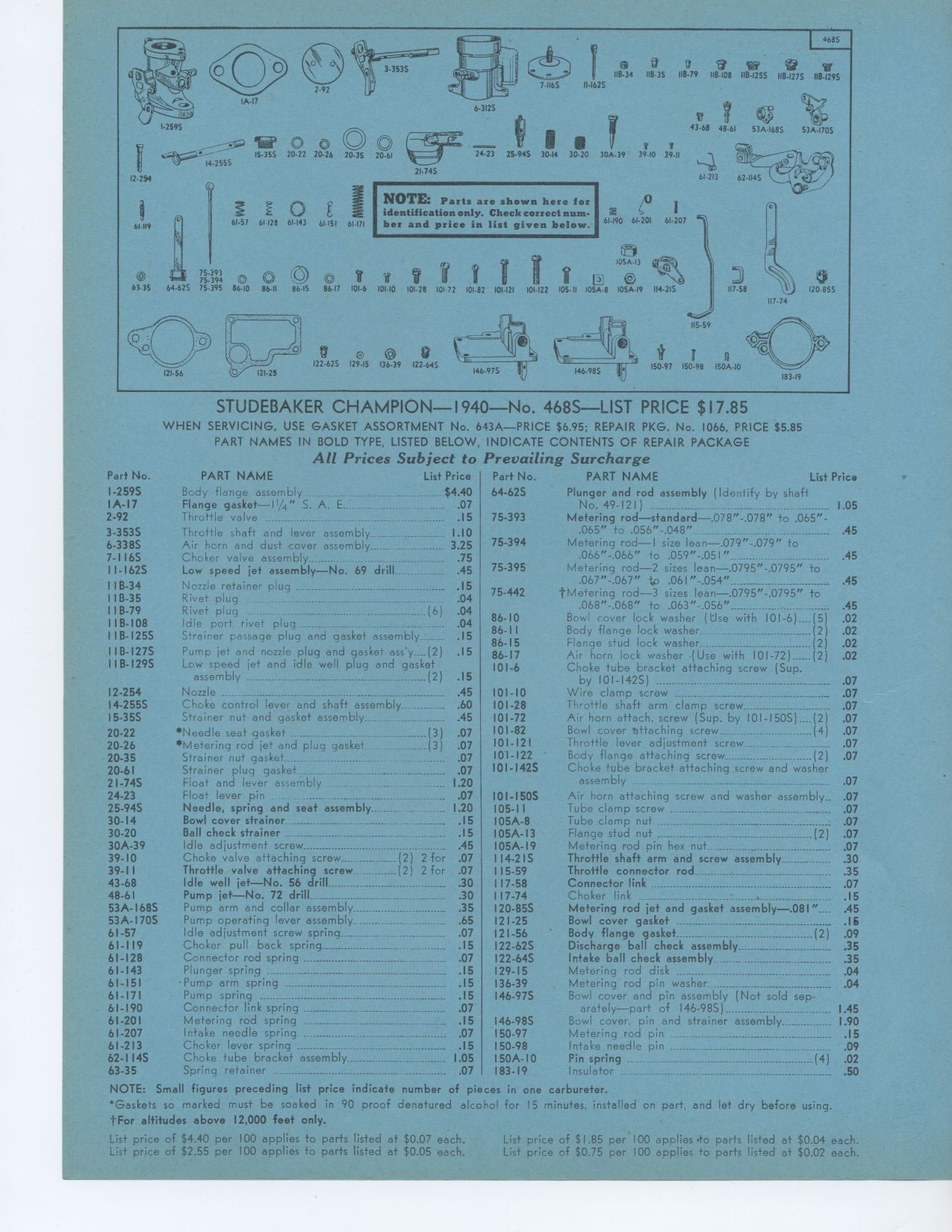

STUDEBAKER CHAMPION 1940 No. 468S
WHEN SERVICING, USE GASKET ASSORTMENT No. 643A—PRICE $6.95; REPAIR
PKG. No. 1066, PRICE $5.85
PART NAMES IN BOLD TYPE, LISTED BELOW, INDICATE CONTENTS OF REPAIR PACKAGE
All Prices Subject to Prevailing Surcharge
List Price Part No. PART NAME List Price
$4.40 64-62S Plunger and rod assembly (Identify by shaft .07
.15
Part No. PART NAME
I-2595 Body flange assembly
IA-17 Flange gasket—II/4" S. A. E
2-92 Throttle valve
Throttle shaft and lever assembly 1.10
Air horn and dust cover assembly . -__.._._._ 3.25
Choker valve assembly _. .75
Low speed jet assembly—No. 69 drill_ .45
Nozzle retainer plug .15
Rivet plug .04
Rivet plug -- --- (6) .04
Idle port rivet plug- _... .04
Strainer passage plug and gasket assembly.15 Purrp jet and nozzle plug and
gasket ass'y._(2) .15 Low speed jet and idle well plug and gasket
assembly (2) .15
12-254 Nozzle ------------.... .45
4-2555 Choke control lever and shaft assembly -...___ _. .60
I 5-35S Strainer nut and gasket assembly.-_._. ...... 45
20-22 *Needle seat gasket (3) .07
20-26 *Metering rod jet and plug gasket . -_ (3) .07
20-35 Strainer nut gasket- ....... -.._. .07
20-61 Strainer plug gasket _ 07
21-74S Float and lever assembly 1.20
24-23 Float lever pin
25-94S Needle, spring and seat assembly.___.. 1.20
30-14 Bowl cover strainer 15
30-20 Ball check strainer _. 15
30A-39 Idle adjustment screw-_ 45
39-10 Choke valve attaching screw (2) 2 for .07
39-11 Throttle valve attaching screw (2) 2 for .07
43-68 Idle well jet—No. 56 drill 30
48-61 Pump jet—No. 72 drill _ -_-. .30
53A-1685 Pump arm and collar assembly 35
53A-1705 Pump operating lever assembly __ .65
61-57 Idle adjustment screw spring 07
61-119 Choker pull back spring -- .15
61-128 Connector rod spring - ._ -.. .07
61-143 Plunger spring IS
61-151 - Pump arm spring 15
61-171 Pump spring .15
61-190 Connector link spring 07
61-201 Metering rod spring _ .15
61-207 Intake needle spring 07
61-213 Choker lever spring 15
62-I14S Choke tube bracket assembly 1.05
63-35 Spring retainer 07
No. 49-121) ---- 1 05
75-393 Metering rod—standard—.078"-.078" to .065"-
.065" to .056"-.048". .. 45
Metering rod—I size lean—.079"-.079" to
.066"-.066" to .059"-.051 "
... Metering rod—2 sizes lean—.0795"-.0795" to
.067"-.067" to .061 "-.054"-._--..-..-.._.--.- ----- .45
tMetering rod—3 sizes lean—.0795"-.0795" to
.068"-.068" to .063"-.056" 45
Bowl cover lock washer (Use with 101-6) (5) .02
Body flange lock washer- (2) 02
Flange stud lock washer (2) 02
Air horn lock washer (Use with 101-72) (2) 02
Choke tube bracket attaching screw (Sup.
by 101-142S) 07
Wire clamp screw 07
Throttle shaft arm clamp screw 07
Air horn attach. screw (Sup. by 101-150S) -(2) .07
Bowl cover attaching screw (4) .07
Throttle lever adjustment screw .-. 07
Body flange attaching screw (2) .07
Choke tube bracket attaching screw and washer
assembly .07
Air horn attaching screw and washer assembly.- .07
Tube clamp screw -- .07
Tube clamp nut 07
Flange stud nut (2) .07
Metering rod pin hex nut 07
Throttle shaft arm and screw assembly .30
Throttle connector rod 35
Connector link ---- .07
Choker link 15
Metering rod jet and gasket assembly—.081" _. .45
Bowl cover gasket I6
Body flange gasket (2) 09
Discharge ball check assembly 35
Intake ball check assembly 35
Metering rod disk -04
Metering rod pin washer 04
Bowl cover and pin assembly (Not sold sep-
arately—part of 146-98S) 1 45
Bowl cover, pin and strainer assembly 1 90
Metering rod pin IS
Intake needle pin 09
Pin spring (4) 02
Insulator 50
NOTE: Small figures preceding list price indicate number of pieces in one
carbureter. *Gaskets so marked must be soaked in 90 proof denatured alcohol
for 15 minutes, installed tFor altitudes above 12,000 feet only.
List price of $4.40 per 100 applies to parts listed at $0.07 each. List price
of $2.55 per 100 applies to parts listed at $0.05 each.
List price of $1.85 per 100 applies .to parts listed at $0.04 each. List
price of $0.75 per 100 applies to parts listed at $0.02 each.
on part, and let dry before using.
|
