1935 Chevy Clutch Care

The dry disc type clutch requires very little care during its life. There are two very simple and easy adjustments that can be made to maintain clutch efficiency and assure longer life. One of these adjustments is for floor board clearance and the other for the amount of travel that the clutch pedal has before the clutch begins to disengage.
When the throwout bearing begins to squeak, the toe board and the plate on the top of the fly-wheel housing should be removed and the oil cup on the top of the throwout bearing filled with a good grade of heavy engine oil, or a light transmission oil, being careful to keep this oil from the other parts of the clutch.

Repair Operations
To Remove Clutch — Passenger Cars and 1/2-Ton Trucks
To remove the clutch from the flywheel, it is
first necessary to remove the transmission from the
chassis. To do this, remove the speedometer cable
from the universal joint ball retainer and remove
the hand brake lever from the frame. Remove the
cap screws holding the universal joint ball collar and
slip the ball and retainer back on the propeller shaft.
Remove the nuts from the universal joint ring
and split the universal joint. Remove the top cap
screws, holding the transmission to the flywheel
housing and insert the two transmission guide pins
in this hole. Remove the flywheel underpan and
remove the two lower transmission to flywheel
housing cap screws. Remove the bolts holding the
rear transmission cross member to the frame and
remove the nuts holding this cross member to the
universal joint ball retainer and remove this part.

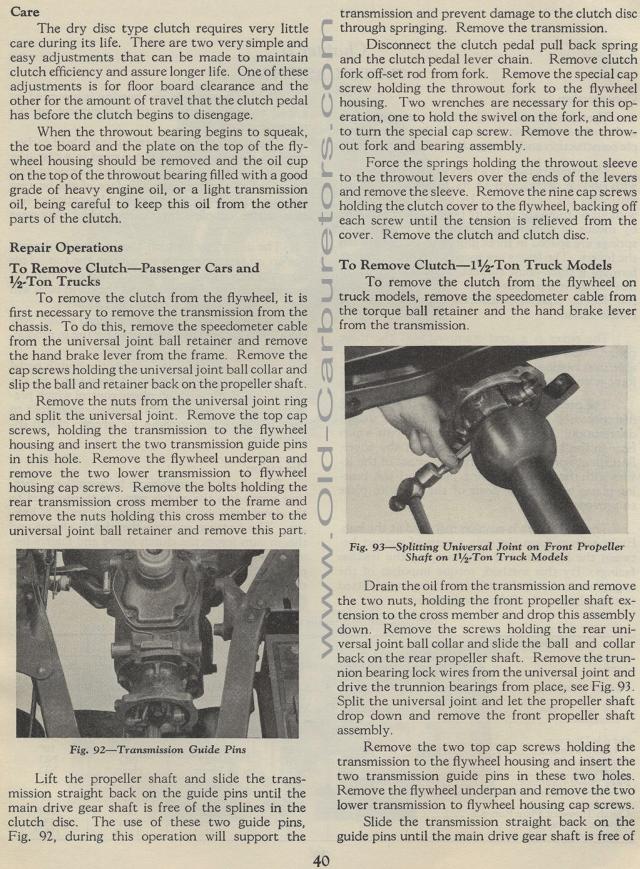

Fig. 92— Transmission Guide Pins
Lift the propeller shaft and slide the trans-mission straight back on the guide pins until the main drive gear shaft is free of the splines in the clutch disc. The use of these two guide pins, Fig. 92, during this operation will support the
40transmission and prevent damage to the clutch disc through springing. Remove the transmission.
Disconnect the clutch pedal pull back spring and the clutch pedal lever chain. Remove clutch fork off-set rod from fork. Remove the special cap screw holding the throwout fork to the flywheel housing. Two wrenches are necessary for this operation, one to hold the swivel on the fork, and one to turn the special cap screw. Remove the throw-out fork and bearing assembly.
Force the springs holding the throwout sleeve to the throwout levers over the ends of the levers and remove the sleeve. Remove the nine cap screws holding the clutch cover to the flywheel, backing off each screw until the tension is relieved from the cover. Remove the clutch and clutch disc.
To Remove Clutch —1 1/2 -Ton Truck Models
To remove the clutch from the flywheel on truck models, remove the speedometer cable from the torque ball retainer and the hand brake lever from the transmission.
Fig. 93— Splitting Universal Joint on Front Propeller
Shaft on 1 1/2 Ton Truck Models

Drain the oil from the transmission and remove the two nuts, holding the front propeller shaft ex-tension to the cross member and drop this assembly down. Remove the screws holding the rear universal joint ball collar and slide the ball and collar back on the rear propeller shaft. Remove the trunnion bearing lock wires from the universal joint and drive the trunnion bearings from place, see Fig. 93. Split the universal joint and let the propeller shaft drop down and remove the front propeller shaft assembly.
Remove the two top cap screws holding the transmission to the flywheel housing and insert the two transmission guide pins in these two holes. Remove the flywheel underpan and remove the two lower transmission to flywheel housing cap screws. Slide the transmission straight back on the guide pins until the main drive gear shaft is free of
