1946 Willys Station Wagon & Panel Delivery Model 4-63

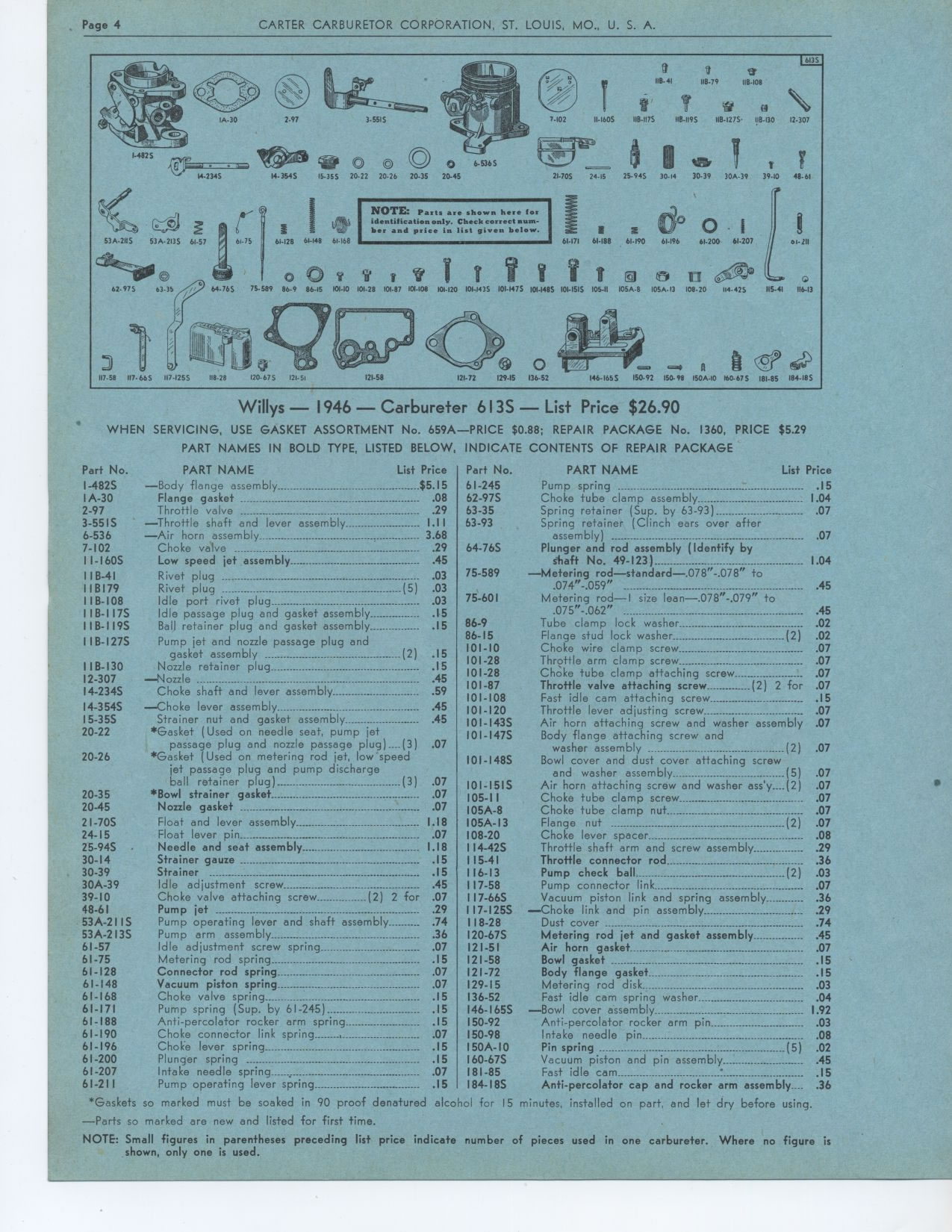

Page 4 CARTER CARBURETOR CORPORATION, ST. LOUIS, MO., U. S. A.
Willys 1946 Carbureter 613S — List Price $26.90
WHEN SERVICING, USE GASKET ASSORTMENT No. 659A—PRICE $0.88; REPAIR
PACKAGE No. 1360, PRICE $5.29
PART NAMES IN BOLD TYPE, LISTED BELOW, INDICATE CONTENTS OF REPAIR PACKAGE
NOTE: part. ate shown here for identification only. Check ...reel cumber
and price in li.t given below.
Part No. PART NAME List Price
I-482S —Body flange assembly _45.15
IA-30 Flange gasket 08
2-97 Throttle valve 29
3-55IS —Throttle shaft and lever assembly 1.11
6-536 —Air horn assembly 3.68
7-102 Choke valve .29
1 I-I60S Low speed jet assembly 45
IIB-41 Rivet plug 03
116179 Rivet plug ° (5) .03
IIB-108 Idle port rivet plug 03
11B-117S Idle passage plug and gasket assembly 15
IIB-119S Ball retainer plug and gasket assembly 15
IIB-127S Pump jet and nozzle passage plug and
gasket assembly (2) 15
IIB-130 Nozzle retainer plug 15
12-307 —Nozzle ---• . .45
14-234S Choke shaft and lever assembly 59
14-354S —Choke lever assembly 45
I5-35S Strainer nut and gasket assembly 45
20-22 *Gasket (Used on needle seat, pump jet
passage plug and nozzle passage plug)....(3) .07 20-26 *Gasket (Used
on metering rod jet, low speed jet passage plug and pump discharge
ball retainer plug) (3) .07
20-35 *Bowl strainer gasket 07
20-45 Nozzle gasket -07
2I-70S Float and lever assembly 1 18
24-15 Float lever pin 07
25-94S - Needle and seat assembly 1 18
30-14 Strainer gauze 15
30-39 Strainer I5
30A-39 Idle adjustment screw 45
39-10 Choke valve attaching screw (2) 2 for 07
48-61 Pump jet °-- 29
53A-21 IS Pump operating lever and shaft assembly 74
53A-213S Pump arm assembly 36
61-57 Idle adjustment screw spring 07
61-75 Metering rod spring 15
61-128 Connector rod spring 07
61-148 Vacuum piston spring 07
61-168 Choke valve spring 15
61-171 Pump spring (Sup. by 61-245) 15
61-188 Anti-percolator rocker arm spring 15
61-190 Choke connector link spring 07
61-196 Choke lever spring 15
61-200 Plunger spring 15
61-207 Intake needle spring : 07
61-211 Pump operating lever spring 15
45
86-9 Tube clamp lock washer 02
86-15 Flange stud lock washer (2) 02
101-10 Choke wire clamp screw 07
101-28 Throttle arm clamp screw 07
101-28 Choke tube clamp attaching screw 07
101-87 Throttle valve attaching screw (2) 2 for 07
101-108 Fast idle cam attaching screw 15
101-120 Throttle lever adjusting screw 07
101-143S Air horn attaching screw and washer assembly .07
101-147S Body flange attaching screw and
washer assembly (2) .07
101-148S Bowl cover and dust cover attaching screw
and washer assembly (5) .07
101-15IS Air horn attaching screw and washer ass'y-...(2) .07
105-I I Choke tube clamp screw 07
I05A-8 Choke tube clamp nut 07
I05A-13 Flange nut (2) .07
108-20 Choke lever spacer 08
I14-42S Throttle shaft arm and screw assembly 29
115-41 Throttle connector rod 36
116-13 Pump check ball (2) 03
117-58 Pump connector link 07
117-66S Vacuum piston link and spring assembly 36
I I7-125S —Choke link and pin assembly 29
118-28 Dust cover 74
120-67S Metering rod jet and gasket assembly 45
121-51 Air horn gasket 07
121-58 Bowl gasket 15
121-72 Body flange gasket 15
129-15 Metering rod disk 03
136-52 Fast idle cam spring washer 04
146-165S —Bowl cover assembly 1 92
150-92 Anti-percolator rocker arm pin 03
150-98 Intake needle pin 08
150A-10 Pin spring (5) 02
160-67S Vacuum piston and pin assembly 45
181-85 Fast idle cam ...... .15
184-18S Anti-percolator cap and rocker arm assembly -. .36
Part No. PART NAME List Price
61-245 Pump spring .15
62-97S Choke tube clamp assembly 1.04
63-35 Spring retainer (Sup. by 63-93) 07
63-93 Spring retainer (Clinch ears over after
assembly) ° .07
64-76S Plunger and rod assembly (Identify by
shaft No. 49-123) 1 04
75-589 —Metering rod—standard—.078"-.078" to
.074"-.059"
75-601 Metering rod—I size lean—.078"-.079" to .075"-.062"
45
•
*Gaskets so marked must be soaked in 90 proof denatured alcohol for 15 minutes,
installed on part, and let dry before using. —Parts so marked are new and
listed for first time.
NOTE: Small figures in parentheses preceding list price indicate number of
pieces used in one carbureter. Where no figure is shown, only one is used.
