1945 Willys Agri-Jeep

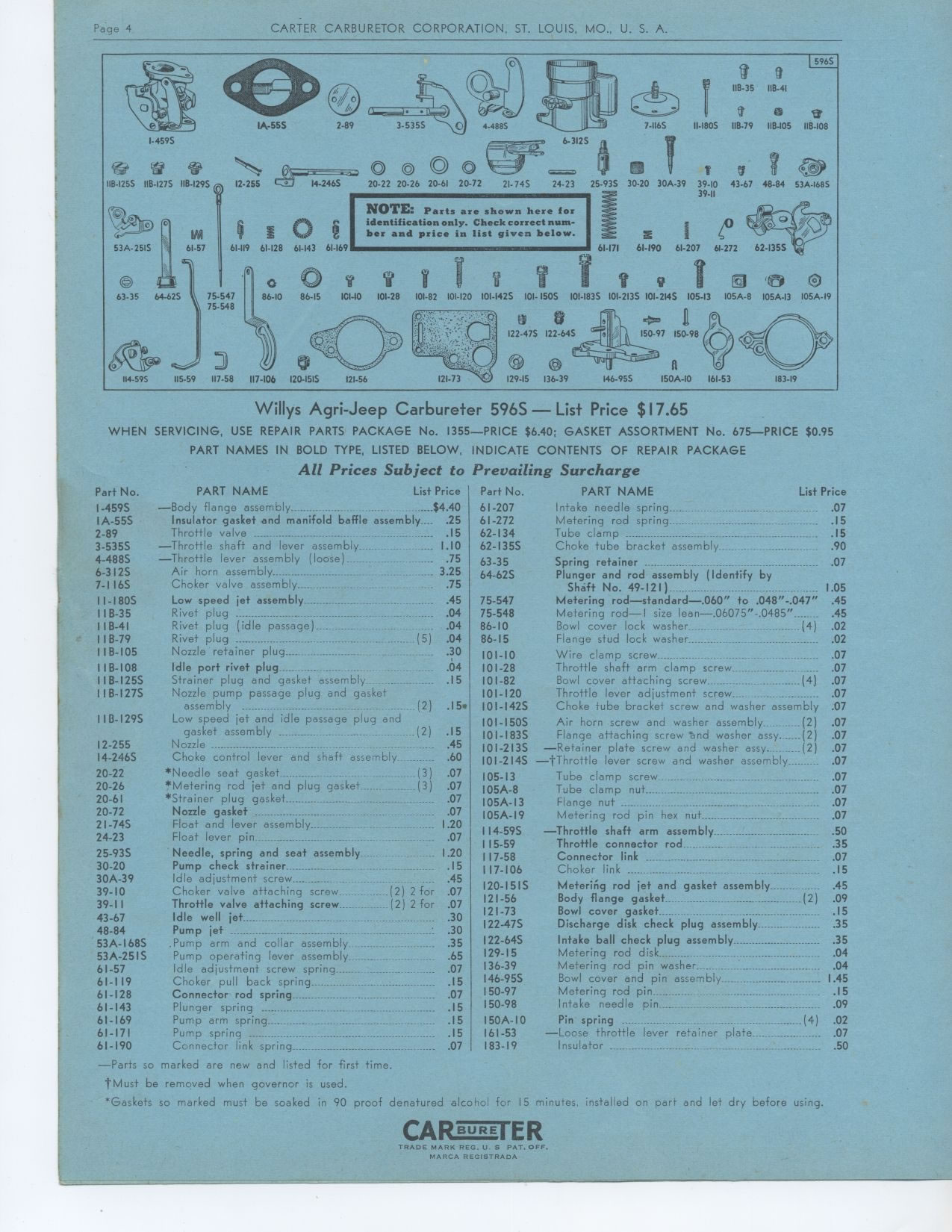

Page 4 CARTER CARBURETOR CORPORATION, ST. LOUIS, MO., U. S. A.
Willys Agri-Jeep Carbureter 596S
WHEN SERVICING, USE REPAIR PARTS PACKAGE No. 1355—PRICE $6.40; GASKET
ASSORTMENT No. 675—PRICE $0.95 PART NAMES IN BOLD TYPE, LISTED BELOW,
INDICATE CONTENTS OF REPAIR PACKAGE
All Prices Subject to Prevailing Surcharge
—Body flange assembly____ - -_--. ___.__$4.40
Insulator gasket and manifold baffle assembly.... .25
Throttle valve _ .15
—Throttle shaft and lever assembly.. 1.10
—Throttle lever assembly (loose) 75
Air horn assembly 3.25
Choker valve assembly __- - .75
I I-1805 Low speed jet __ 45
IIB-35 Rivet plug .04
IIB-41 Rivet plug (idle passage)_._ __ .04
1 I B-79 Rivet plug (5) .04
IIB-105 Nozzle retainer plug 30
IIB-108 Idle port rivet plug - - - .04
IIB-I25S Strainer plug and gasket assembly .15
IIB-1275 Nozzle pump passage plug and gasket
assembly (2) .15e
IIB-1295 Low speed jet and idle passage plug and
gasket assembly ..-..._...._._..__._... (2) .15
12-255 Nozzle .45
I4-246S Choke control lever and shaft assembly .60
20-22 *Needle seat gasket -(3) .07
20-26 *Metering rod jet and plug gasket _(3) .07
20-61 *Strainer plug gasket 07
20-72 Nozzle gasket .07
21-74S Float and lever assembly 1.20
24-23 Float lever pin ._-.__-..._.. _ .07
25-93S Needle, spring and seat assembly... 1.20
30-20 Pump check strainer-_._ .. 15
30A-39 Idle adjustment screw 45
39-10 Choker valve attaching screw (2) 2 for .07
39-I I Throttle valve attaching screw__ (2) 2 for .07
43-67 Idle well jet .-... _-- 30
48-84 Pump jet .30
53A-1685 .Pump arm and collar assembly .-. .35
53A-25IS Pump operating lever assembly __ .. .65
61-57 Idle adjustment screw spring_.. .07
61-119 Choker pull back spring... .15
61-128 Connector rod spring .07
61-143 Plunger spring .15
61-169 Pump arm spring .15
61-171 Pump spring .15
---------------- - - - - - -
61-190 Connector link spring..__ -.__._._. . .07
—Parts so marked are new and listed for first time. t Must be removed
when governor is used.
`Gaskets so marked must be soaked in 90 proof denatured alcohol for 15
minutes, installed on parr and let dry before using.
CA BURS ER
TRADE MARK REG. U. S PAT. OFF.
MARCA REGISTRADA
PART NAME List Price Part No. PART NAME List Price
61-207 Intake needle spring... .07
61-272 Metering rod spring-_._ .15
62-134 Tube clamp 15
62-1355 Choke tube bracket assembly .90
63-35 Spring retainer .__.- _ __ - .07
64-62S Plunger and rod assembly (Identify by
Shaft No. 49-121) 1.05
75-547 Metering rod—standard—.060" to .048"-.047" .45
75-548 Metering rod—I size lean—.06075"-.0485" 45
86-10 Bowl cover lock washer_-_ _ .(4) .02
86-15 Flange stud lock washer ..- -- .02
1 0 1 - 1 0 Wire clamp screw .- _ .07
101-28 Throttle shaft arm clamp screw-__ -. -_..__-._ __ .07
101-82 Bowl cover attaching screw ._-.__(4) .07
101-120 Throttle lever adjustment screw_... .07
I01-142S Choke tube bracket screw and washer assembly .07
101-1505 Air horn screw and washer assembly_-. (2) .07
I01-1835 Flange attaching screw and washer assy. (2) .07
I01-2135 —Retainer plate screw and washer assy - (2) .07
I01-214S —tThrottle lever screw and washer assembly .07
105-13 Tube clamp screw .07
I05A-8 Tube clamp nut . .07
105A-13 Flange nut .07
I05A-19 Metering rod pin hex nut .07
114-59S —Throttle shaft arm assembly 50
115-59 Throttle connector rod___.._.._ _ ..-.__.- .35
117-58 Connector link .._-_.. .. .07
117-106 Choker link .__..___.__....__ _ .15
120-15IS Metering rod jet and gasket assembly .45
1 2 1 - 5 6 Body flange gasket. ... . (2) .09
1 2 1 - 7 3 Bowl cover gasket 15
I22-47S Discharge disk check plug assembly .35
122-64S Intake ball check plug assembly .35
129-15 Metering rod disk .04
136-39 Metering rod pin washer .04
146-95S Bowl cover and pin assembly 1.45
150-97 Metering rod pin .15
150-98 Intake needle pin .09
150A-10 Pin spring . .-_. ._.._.__.(4) .02
161-53 —Loose throttle lever retainer plate .07
183-19 Insulator . .50
