1940 Willys Overland Model 440

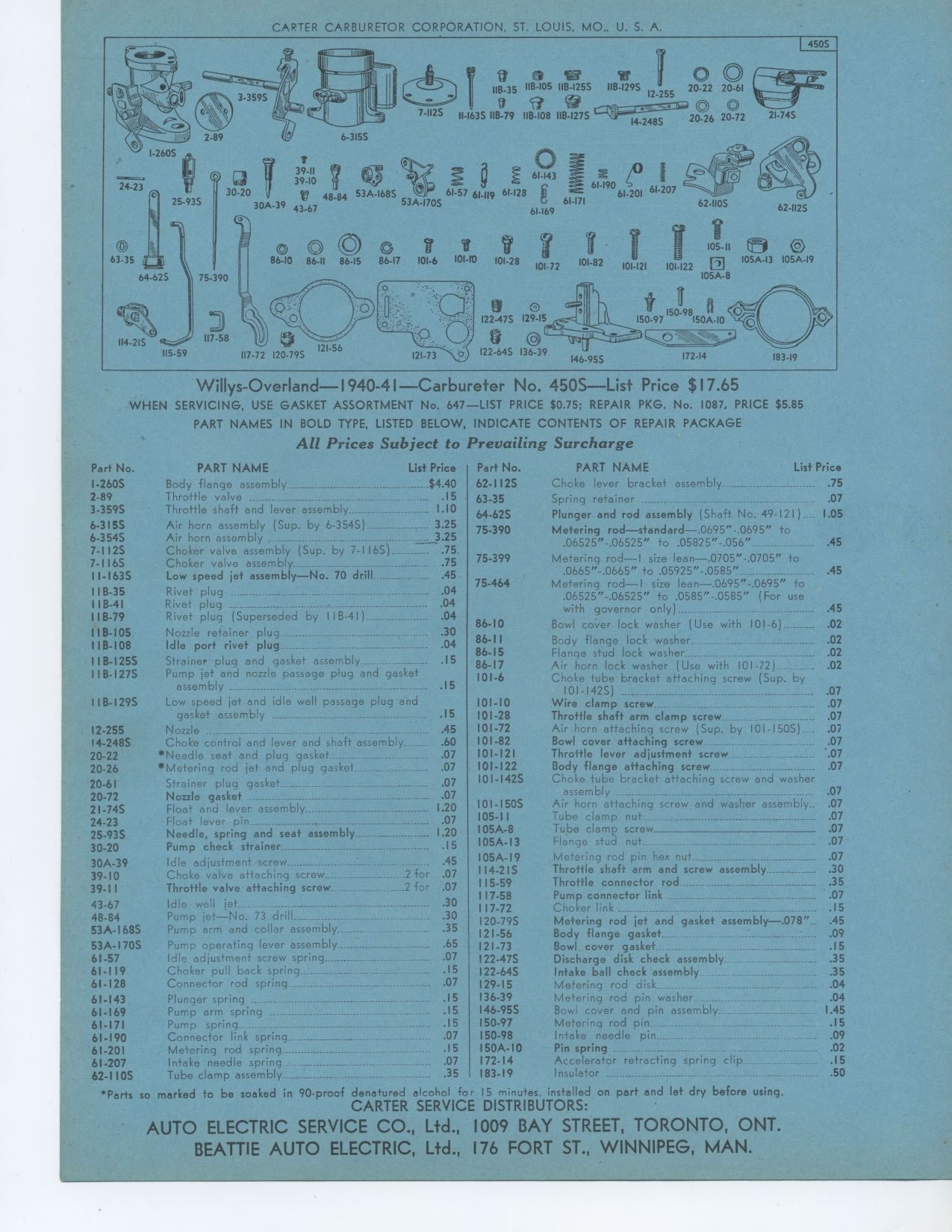

CARTER CARBURETOR CORPORATION, ST. LOUIS, MO., U. S. A.
Willys-Overland 1940 1941 Carbureter No. 450S
WHEN SERVICING, USE GASKET ASSORTMENT No. 647—LIST PRICE $0.75; REPAIR
PKG. No. 1087, PRICE $5.85
PART NAMES IN BOLD TYPE, LISTED BELOW, INDICATE CONTENTS OF REPAIR PACKAGE
All Prices Subject to Prevailing Surcharge
Part No. PART NAME List Price
I-260S Body flange assembly .. $4.40
2-89 Throttle valve .15
3-3595 Throttle shaft and lever assembly__ 1.10
6-3155 Air horn assembly (Sup. by 6-3545) 3.25
6-354S Air horn assembly
7-1 1 2S Choker valve assembly (Sup. by 7-116S) .75
7-116S Choker valve assembly ._-.. .._-..._.. .75
II-163S Low speed jet assembly—No. 70 drill... .- .45
II B-35 Rivet plug 04
1 I B-41 Rivet plug , _.04
I I B-79 Rivet plug (Superseded by I I B-41 ) 04
11B-105 Nozzle retainer plug ..._...-._... ._-- - .30
I I B-I08 Idle port rivet plug, 04
1IB-125S Strainer plug and gasket assembly___.. ... .15
II B-1275 Pump jet and nozzle passage plug and gasket
assembly 15
1IB-129S Low speed jet and idle well passage plug and
gasket assembly .15
12-255 Nozzle ..... 45
I4-248S Choke control and lever and shaft assembly-_ 60
20-22 *Needle seat and plug gasket ._---... .07
20-26 *Metering rod jet and plug gasket. ....._-.__ .07
20-61 Strainer plug gasket_. . ._ .07
20-72 Nozzle gasket 07
2I-74S Float and lever assembly.. .---.- 1.20
24-23 Floe+ lever pin . .-_.____ .07
25-93S Needle, spring and seat assembly. . .._-_- 1.20
30-20 Pump check strainer__ .15
30A-39 Idle adjustment screw ..... .45
39-10 Choke valve attaching screw 2 for .07
39-11 Throttle valve attaching screw....-___._ 2 for .07
43-67 I d l e well jet .30
48-84 Pump jet—No. 73 drill...-..- _. .30
53A-I68S Pump arm and collar assembly__.__ .35
53A-170S Pump operating lever assembly 65
61-57 Idle adjustment screw spring...-_.-__ .07
61-119 Choker pull back spring_._.-_...-.--. ___. .15
61-128 Connector rod spring_...___-._.--.. .-_- .07
61-143 Plunger spring 15
61-169 Pump arm spring 15
61-171 Pump spring 15
61-190 Connector link spring__.-.. .-...__. .07
61-201 Metering rod spring.._. ..--_ 15
61-207 Intake needle spring 07
62-110S Tube clamp assembly.._.-_._.__._ .-...__... ..__. .35
Part No. PART NAME List Price
62-I 12S Choke lever bracket assembly----._- .-. .75
63-35 Spring retainer 07
64-62S Plunger and rod assembly (Shaft No. 49-121).__ 1.05
75-390 Metering rod—standard—.0695"-.0695" to
.06525"-.06525" to .05825"-.056" A5
75-399 Metering rod—I size lean—.0705"-.0705" to
.0665"-.0665" to .05925"-.0585" 45
75-464 Metering rod—I size lean—.0695"-.0695" to
.06525"-.06525" to .0585"-.0585" (For use
with governor only) A5
86-10 Bowl cover lock washer Use with 101-6)-.-.._._ .02 86-11
-15 Body flange lock washer ...... ....................... .02
86
Flange stud lock washer-._ __ ____________ .02
86-17 Air horn lock washer (Use with 101-72) . .02
101-6 Choke tube bracket attaching screw (Sup. by
I01-142S)
101-10 Wire clamp screw. .-. .07
101-28 Throttle shaft arm clamp screw. -. .07
101-72 Air horn attaching screw (Sup. by 101-150S)... .03
101-82 Bowl cover attaching screw__. .07
101-121 Throttle lever adjustment screw . '.07
101-122 Body flange attaching screw .--.__._.-._... .07
I01-142S Choke tube bracket attaching screw and washer
assembly cc . .07
101-150S Air horn attaching screw and washer assembly. .07
1 0 5 - 1 1 Tube clamp nut 07
I05A-8 Tube clamp screw .07
105A-13 Flange stud nut .07
105A-19 Metering rod pin hex nut____ _-- .07
114-2 I S Throttle shaft arm and screw assembly .30
115-59 Throttle connector rod- -- .35
117-58 Pump connector link
I 17-72 Choker link .15
120-79S Metering rod jet and gasket assembly—.078".. .45
121-56 Body flange gasket .09
121-73 Bowl cover gasket . .15
II2222--47S 64S Discharge disk check assembly 35
Intake ball check assembly .35
129-15
39 Metering rod disk_ - _______________________________ .04
Metering rod pin washer . ___ .04
146-95S Bowl cover and pin assembly 1.45
150-97 Metering rod pin. .15
150-98 Intake needle pin-... . .09
150A-10 Pin spring .02
172-14 Accelerator retracting spring c l i p __ ..___ . .15
183-19 Insulator .50
.07
.07
*Parts so marked to be soaked in 90-proof denatured alcohol for 15 minutes,
installed on part and let dry before using. CARTER SERVICE DISTRIBUTORS:
