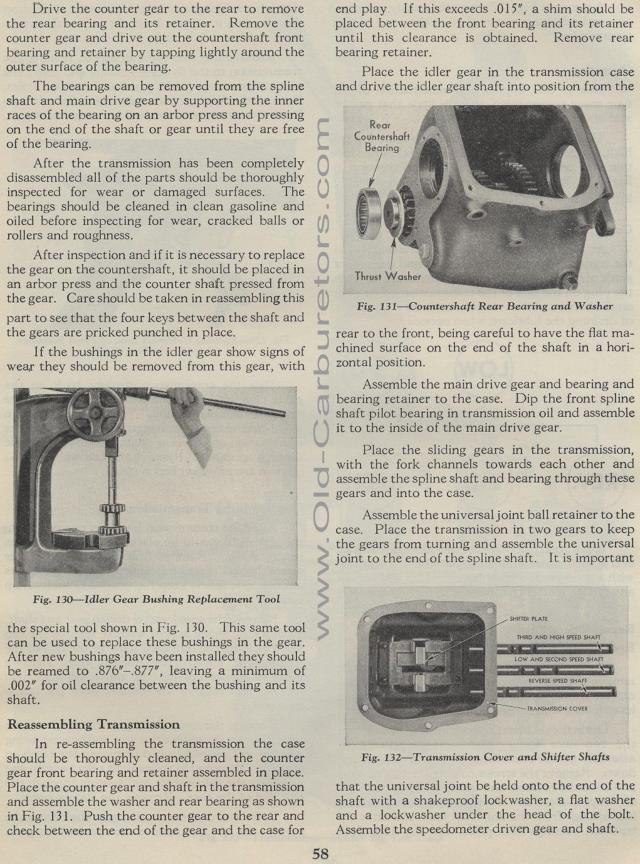

Drive the counter gear to the rear to remove the rear bearing and its retainer. Remove the counter gear and drive out the countershaft front bearing and retainer by tapping lightly around the outer surface of the bearing.
The bearings can be removed from the spline shaft and main drive gear by supporting the inner races of the bearing on an arbor press and pressing on the end of the shaft or gear until they are free of the bearing.

After the transmission has been completely disassembled all of the parts should be thoroughly inspected for wear or damaged surfaces. The bearings should be cleaned in clean gasoline and oiled before inspecting for wear, cracked balls or rollers and roughness.

ction and if it is necessary to replace the gear on the countershaft, it should be placed in an arbor press and the counter shaft pressed from the gear. Care should be taken in reassembling this
part to see that the four keys between the shaft and the gears are pricked punched in place.
If the bushings in the idler gear show signs of wear they should be removed from this gear, with
Fig. 130— Idler Gear Bushing Replacement Tool
the special tool shown in Fig. 130. This same tool can be used to replace these bushings in the gear. After new bushings have been installed they should be reamed to .876"–.877", leaving a minimum of .002" for oil clearance between the bushing and its shaft.
Reassembling Transmission
In re-assembling the transmission the case should be thoroughly cleaned, and the counter gear front bearing and retainer assembled in place. Place the counter gear and shaft in the transmission and assemble the washer and rear bearing as shown in Fig. 131. Push the counter gear to the rear and check between the end of the gear and the case for
58end play If this exceeds .015", a shim should be placed between the front bearing and its retainer until this clearance is obtained. Remove rear bearing retainer.
Place the idler gear in the transmission case and drive the idler gear shaft into position from the
Fig. 131— Countershaft Rear Bearing and Washer
rear to the front, being careful to have the flat machined surface on the end of the shaft in a horizontal position.
Assemble the main drive gear and bearing and bearing retainer to the case. Dip the front spline shaft pilot bearing in transmission oil and assemble it to the inside of the main drive gear.
Place the sliding gears in the transmission, with the fork channels towards each other and assemble the spline shaft and bearing through these gears and into the case.
Assemble the universal joint ball retainer to the case. Place the transmission in two gears to keep the gears from turning and assemble the universal joint to the end of the spline shaft. It is important
Fig. 132— Transmission Cover and Shifter Shafts
that the universal joint be held onto the end of the shaft with a shakeproof lockwasher, a flat washer and a lockwasher under the head of the bolt. Assemble the speedometer driven gear and shaft.
