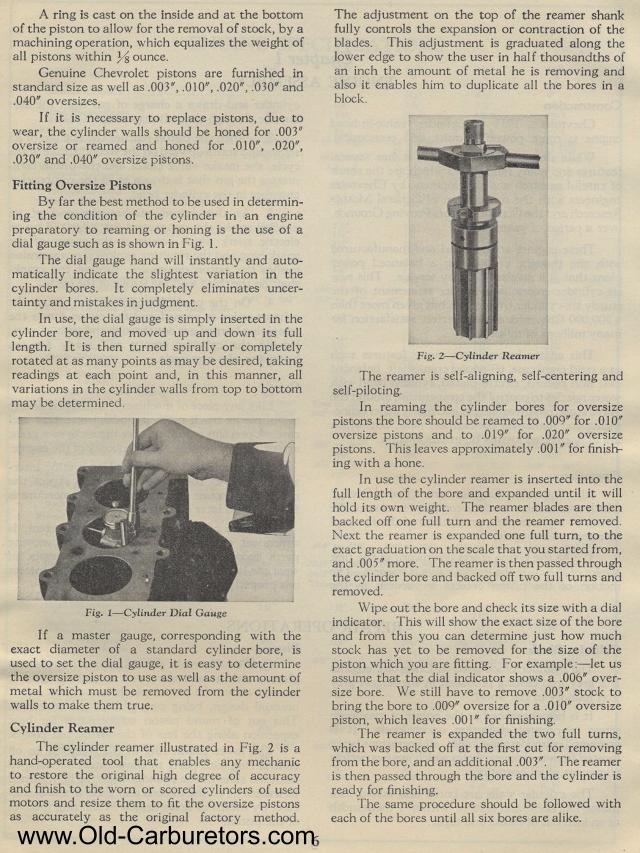

6 A ring is cast on the inside and at the bottom of the piston to allow for the removal of stock, by a machining operation, which equalizes the weight of all pistons within % ounce.



Genuine Chevrolet pistons are furnished in standard size as well as .003", .010", .020", .030" and .040" oversizes. If it is necessary to replace pistons, due to wear, the cylinder walls should be honed for .003" oversize or reamed and honed for .010", .020", .030" and .040" oversize pistons.

Fitting Oversize Pistons By far the best method to be used in determining the condition of the cylinder in an engine preparatory to reaming or honing is the use of a dial gauge such as is shown in Fig. 1. The dial gauge hand will instantly and automatically indicate the slightest variation in the cylinder bores. It completely eliminates uncertainty and mistakes in judgment. In use, the dial gauge is sirnply inserted in the cylinder bore, and moved up and down its full length. It is then turned spirally or completely rotated at as many points as may be desired, taking readings at each point and, in this manner, all variations in the cylinder walls from top to bottom may be determined.
Fig. 1—Cylinder Dial Gauge
If a master gauge, corresponding with the exact diameter of a standard cylinder bore, is used to set the dial gauge, it is easy to determine the oversize piston to use as well as the amount of metal which must be removed from the cylinder walls to make them true.
Cylinder Reamer
The cylinder reamer illustrated in Fig. 2 is a hand-operated tool that enables any mechanic to restore the original high degree of accuracy and finish to the worn or scored cylinders of used motors and resize them to fit the oversize pistons as accurately as the original factory method.
The adjustment on the top of the reamer shank fully controls the expansion or contraction of the blades. This adjustment is graduated along the lower edge to show the user in half thousandths of an inch the amount of metal he is removing and also it enables him to duplicate all the bores in a block.
Fig. 2— Cylinder Reamer
The reamer is self-aligning, self-centering and self-piloting.
In reaming the cylinder bores for oversize pistons the bore should be reamed to .009" for .010" oversize pistons and to .019" for .020" oversize pistons. This leaves approximately .001" for finishing with a hone.
In use the cylinder reamer is inserted into the full length of the bore and expanded until it will hold its own weight. The reamer blades are then backed off one full turn and the reamer removed. Next the reamer is expanded one full turn, to the exact graduation on the scale that you started from, and .005" more. The reamer is then passed through the cylinder bore and backed off two full turns and removed.
Wipe out the bore and check its size with a dial indicator. This will show the exact size of the bore and from this you can determine just how much stock has yet to be removed for the size of the piston which you are fitting. For example :—let us assume that the dial indicator shows a .006" over-size bore. We still have to remove .003" stock to bring the bore to .009" oversize for a .010" oversize piston, which leaves .001" for finishing.
The reamer is expanded the two full turns, which was backed off at the first cut for removing from the bore, and an additional .003". The reamer is then passed through the bore and the cylinder is ready for finishing.
The same procedure should be followed with each of the bores until all six bores are alike.
